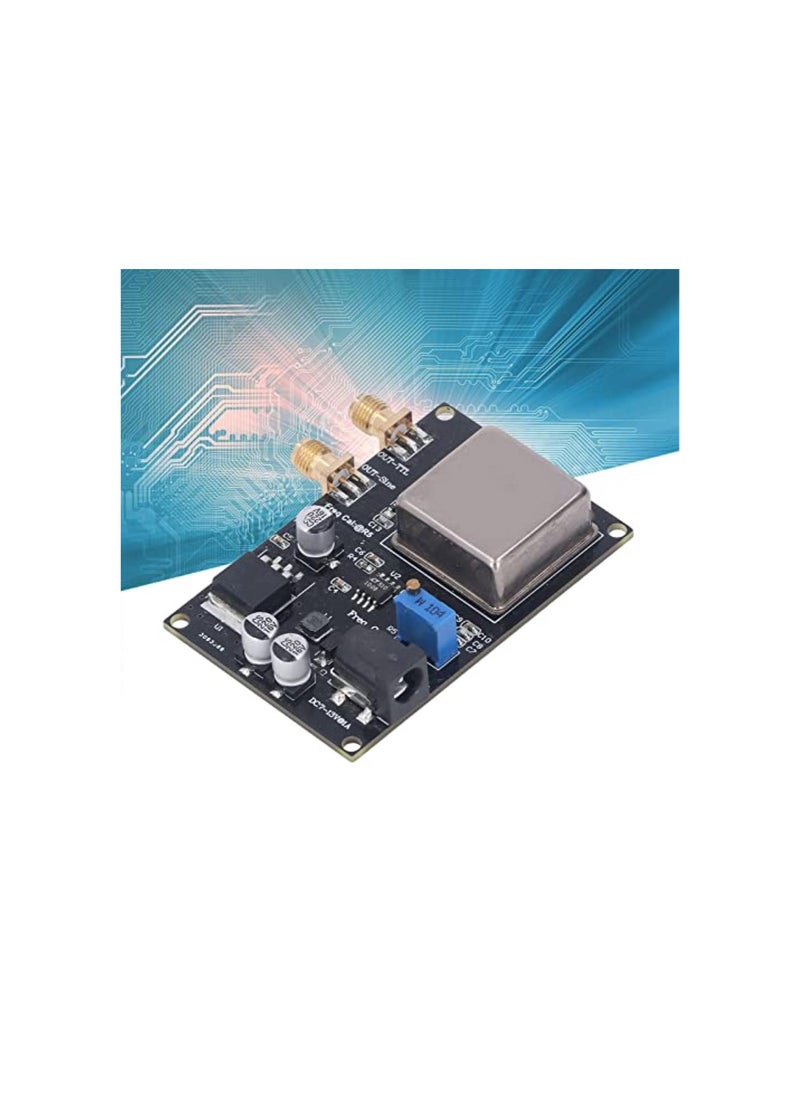

Generic - Frequency Reference Source Board, Ocxo 10Mhz Frequency Reference Module, Frequency Reference Module Crystal Oscillator Constant Temperature Board - Image 1

Available Soon

Generic

Frequency Reference Source Board, Ocxo 10Mhz Frequency Reference Module, Frequency Reference Module Crystal Oscillator Constant Temperature Board

Sorry! This product is not available.

Product Overview

Highlights

High-Stability 10MHz Frequency Standard Module: Our OCXO Module hosts a 10MHz frequency reference source integral for various audio systems. The premium crystal oscillator constant temperature module guarantees steady output and hearty durability, making it an investment worth every penny.
Universal OCXO Frequency Reference Module: This OCXO Frequency Reference Module is not only convenient but also incredibly practical. Suited to numerous instrument standards like decoders, shortwave radios, frequency meters, and sources, it is a versatile addition to your everyday devices.
Easy-to-Install Frequency Standard Reference Module: Swapping your old, broken, or damaged parts has never been easier with our Frequency Standard Reference Module. This crystal oscillator frequency reference board guarantees the stable of your device, ensuring maximum efficiency and longer lifespan.
Crystal Oscillator Constant Temperature Module: Featuring an SMA female interface, our Crystal Oscillator Constant Temperature Module boasts ultra-low phase noise for optimal performance. Its connection ensures unwavering stability, streamlining all your instrumental needs optimally.
Efficient OCXO Frequency Module: Built with top-grade PCB components, the OCXO Frequency Module is notable for its high calibration accuracy. Offering unparalleled frequency stability and bare minimum loss, this component ensures your electronic instruments run more smoothly and sustainably.

Overview

Spec:
Item Type: Frequency Standard Reference Module
Current Consumption: Preheating stage Warm Up Time: About 5 minutes
Calibration Accuracy: ±0.01Hz
Frequency Stability: 5e-12
Output Level:
DBm: 10dBm±2dBm at 50?;
VRMS: 0.7071V at 50?;
VPeak: 1.0V at 50?;
P: 2.0V at 50?
Output Impedance: 50?
Interface Type: SMA Female
Product Use: Constant temperature 10MHz, ultra low phase noise, frequency reference module, frequency reference source, OCXO frequency reference source, used for instrument benchmarks such as audio systems, decoders, shortwave radios, frequency meters, sources, etc.

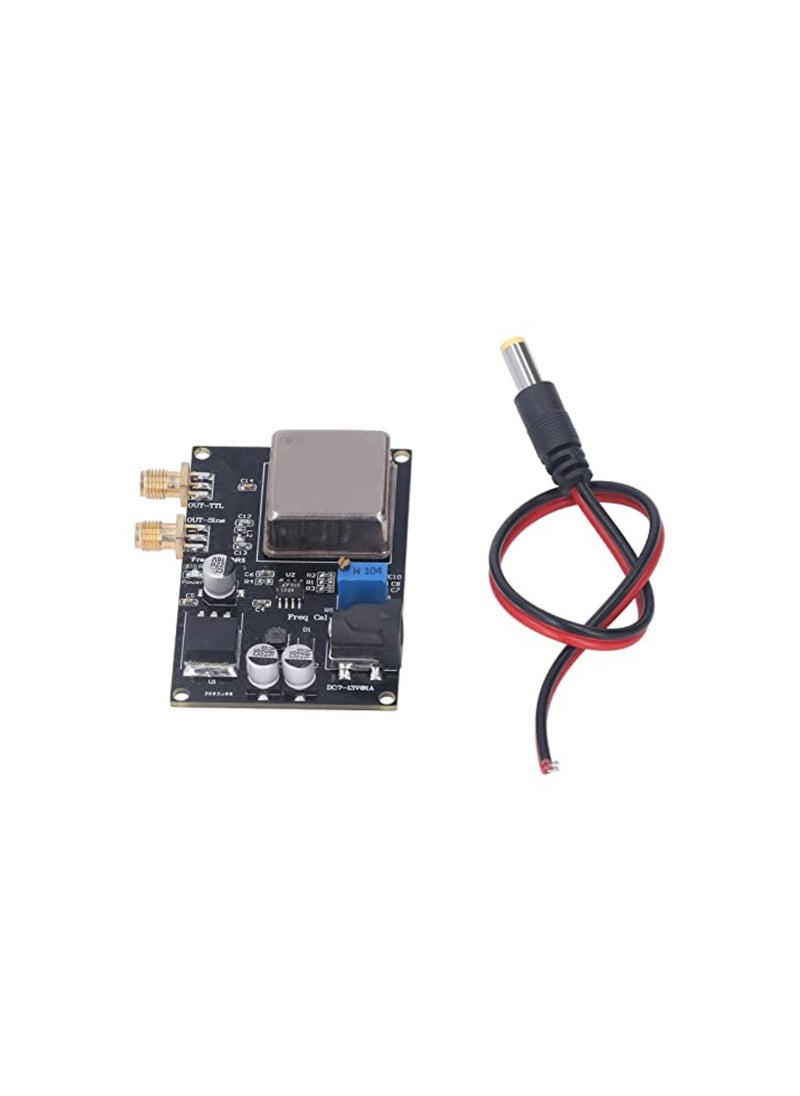

Package List:
1 x Module
1 x Cable
