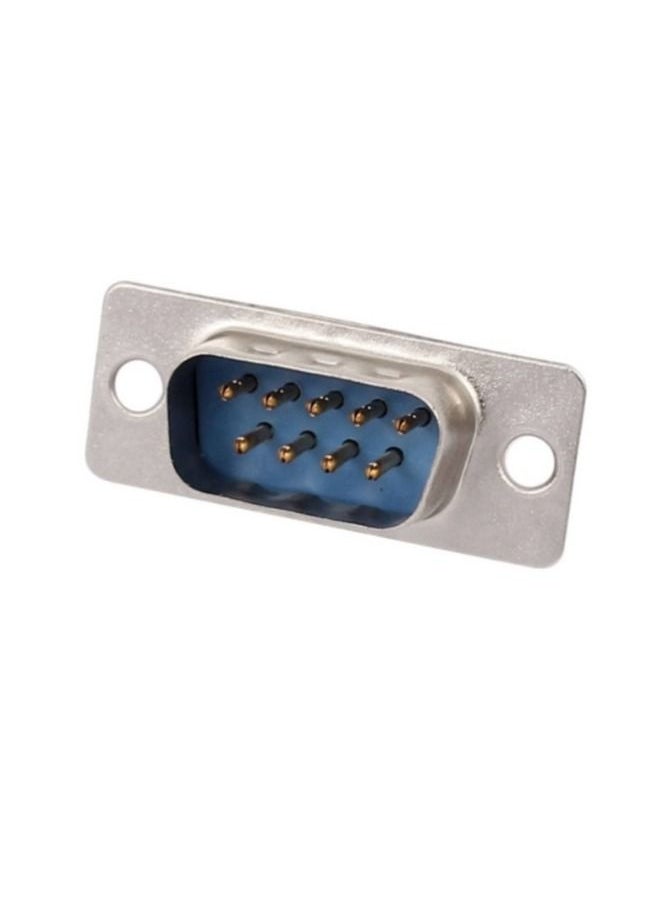

GENERIC DB9 MALE CONNECTOR

OverviewDB9 Straight Male Connector Soldering Type Panel Mount These DB9 Male Solder Connectors are used to terminate the connection type of a cable. They can easily be soldered to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. DB9 connectors are designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard so that multiple companies could design them into their products. DB9connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used in DB9 cable assemblies for data connectivity. This product is known as 9 Pin DB9 Male Connector, Component, DB9 Connector, DB9 Male Connector, DB9 9 Pin Male Connector. Features: Solder cup configuration for longevity Nickel-plated terminals Good quality Feature/Specs: Connector Type: DB-9 Material: Metal and plastic Connector: Male Voltage Rating: 250V AC Current Rating: 5A Contact Resistance: 20mΩ Insulation Resistance: 1000MΩ Operating Temperature Range: -55°C to +125°C Applications: Communication Device Network ports Computer video output Game controller ports Linear and rotary encoders in industries Package Includes: 1 x DB9 Straight Male Connector Soldering Type Panel Mount Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
