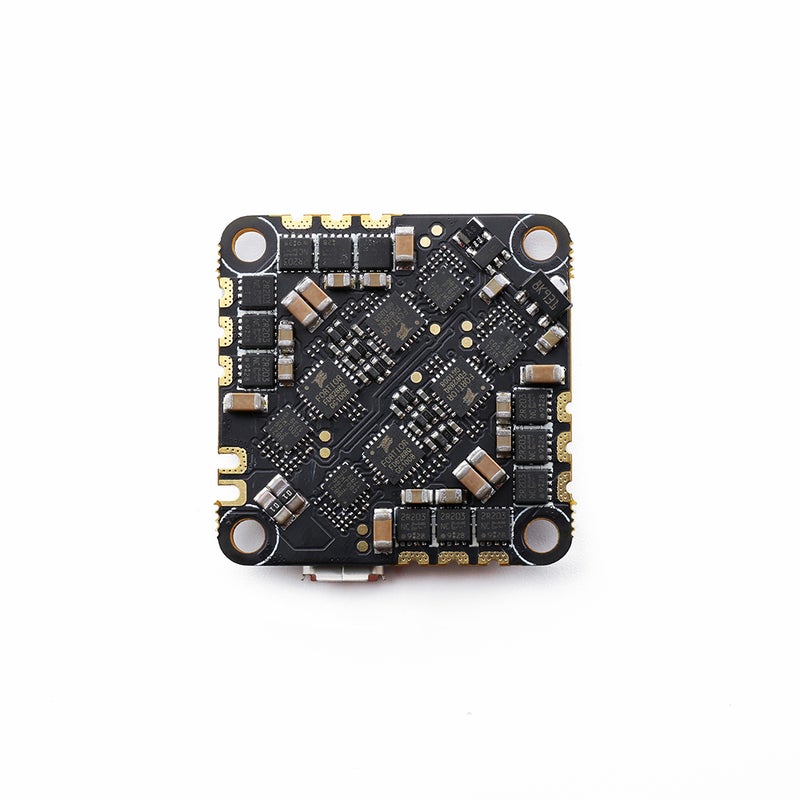

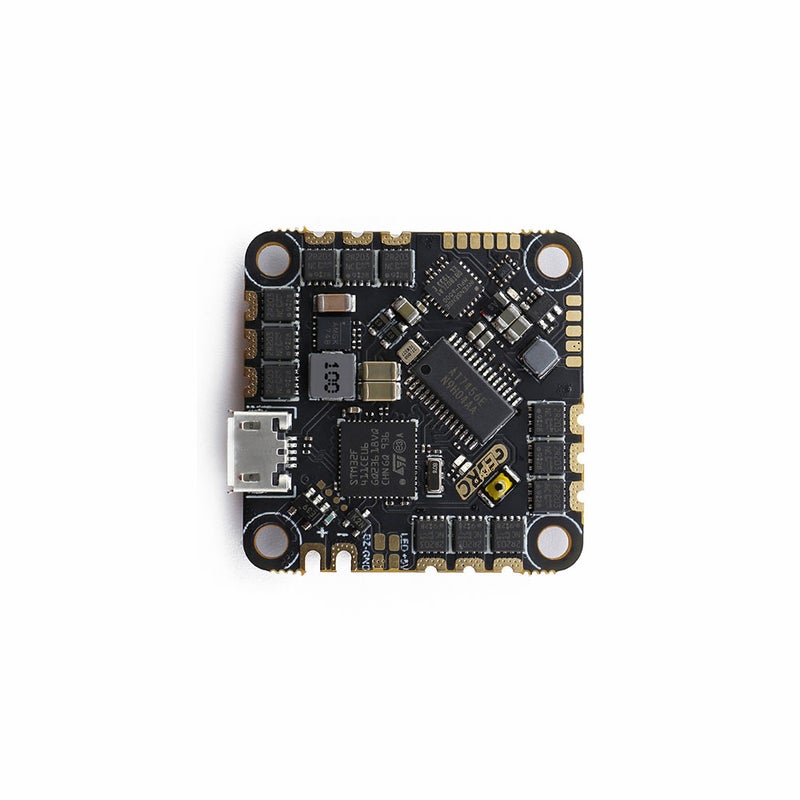

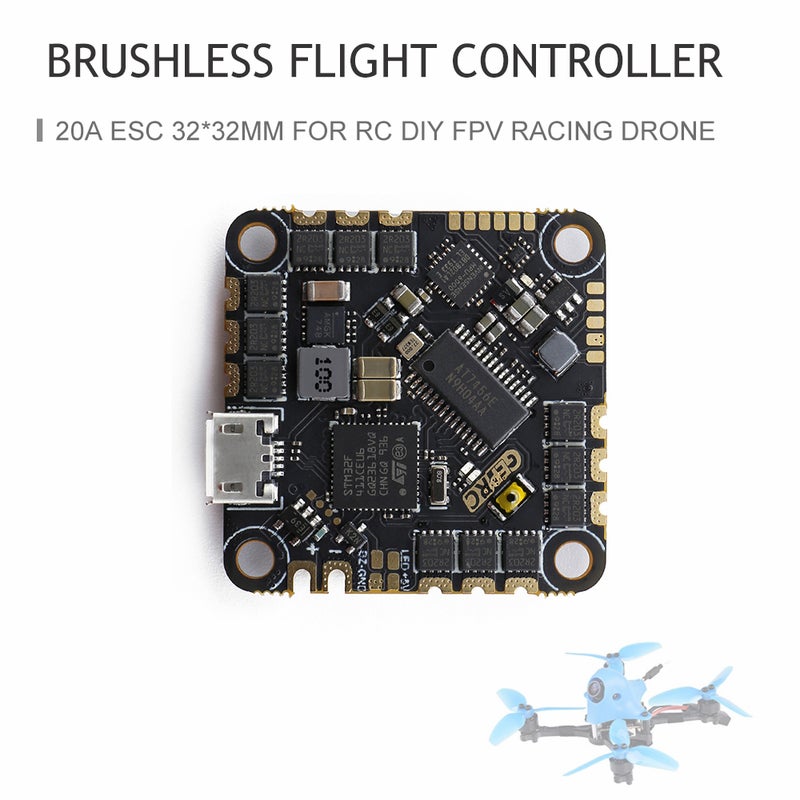

GEP-20A-F4 Brushless Flight Controller For RC DIY FPV Racing Drone Support 15 x 1 x 8cm

OverviewThe new high performance AIO brushless FC, GEP-20A-F4 was added to the toothpick drone. Compared with the previous 12A version, the new GEP-20A-F4 can achieve a continuous current of 20A and a burst current of 30A. Support maximum 4S battery , recommended using 1202-1507 motor, with a 3in-5in size blade. This GEP-20A-F4 has strong flight performance, OSD input, extremely lightweight, let your new toothpick drone to build a higher flight performance through the aircraft.
Features:

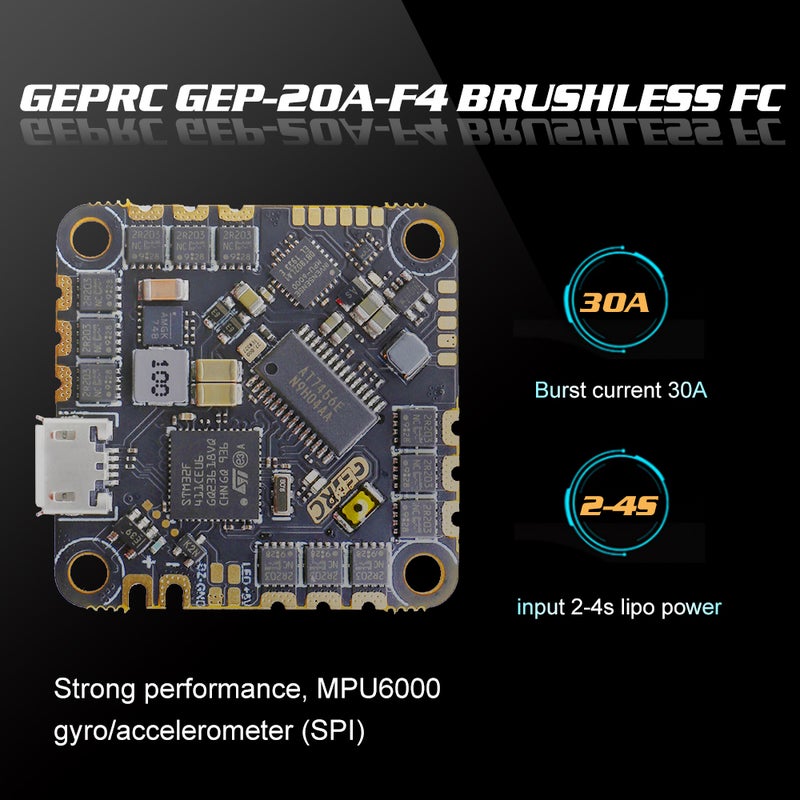

* Strong performance, continuous current 20A, burst current 30A; BLhelis_S 20A, maximum support 4S battery, built-in current sensor.
* Compatible with 12xx-15xx motor installation, with 3in-5in size propeller; STM32F411 flight control, super-high running frequency. Suitable for RC DIY FPV racing drone.
* IMU: MPU6000 gyro/accelerometer (SPI); External buzzer: Support; LED control : Support; Current monitoring: Support; Betaflight OSD: Support; Supports Dshot600,Oneshot, Multishot.
* Designed with silica gel shock absorbing column, it can reduce the high-frequency vibration caused by frame and motor, allowing the flight control to operate in a noiseless environment.
* Specifications:
Item: Flight controller
Model name: GEP-20A-F4

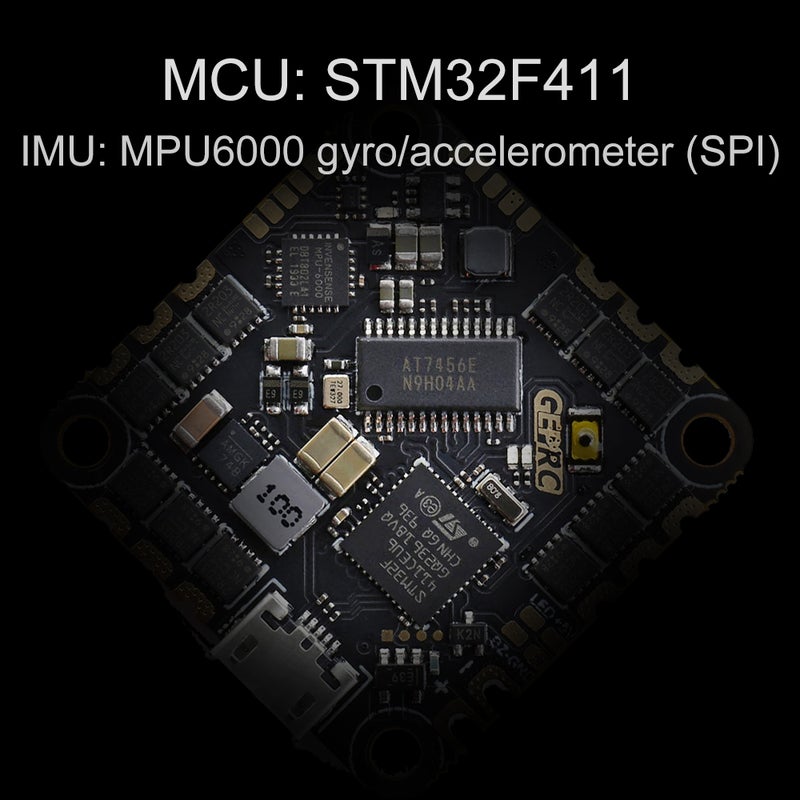

MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
FC firmware target: MATEKF411
OSD: BetaFlight OSD w/ AT7456E chip
Baro: NO
Current monitoring: Support
Betaflight OSD: Support
External buzzer: Support
LED: Support
USB port: MicroUSB
BEC output: 5V@1A
Integrated LC Filter
ESC MCU: BB21F16G
Continuous current: 20A
Peak current: 30A
Input: 2-4s lipo
Supports Dshot600, Oneshot, Multishot
Current meter: 210
Target: G_H_30

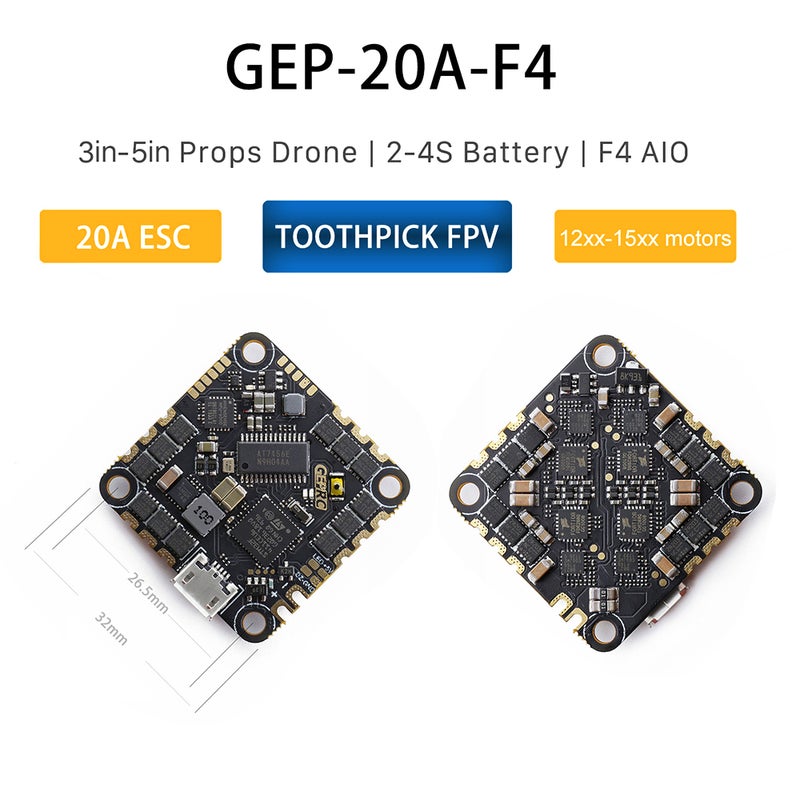

Size: 32x32mm board, 26.5mm mounting holes (M2)
Installing Hole: 26.5x26.5mm, M2
The overall weight: About 7.3g
Receiver Support:
Frsky XM/XM+/R-XSR
Futaba Receiver
DSM/DSMX
FlySky Receiver
TBS Crossfire Receiver
AC900
Most receivers that support SBUS
Package Information:
Package size: 15*8*1cm
Package weight: 18g
Plastic Package
Packing List:
1 *Flight controller
1 *Power cable (XT30)
1 * Some screws
8 *Silica gel shock absorbing column
1 *Signal cable
