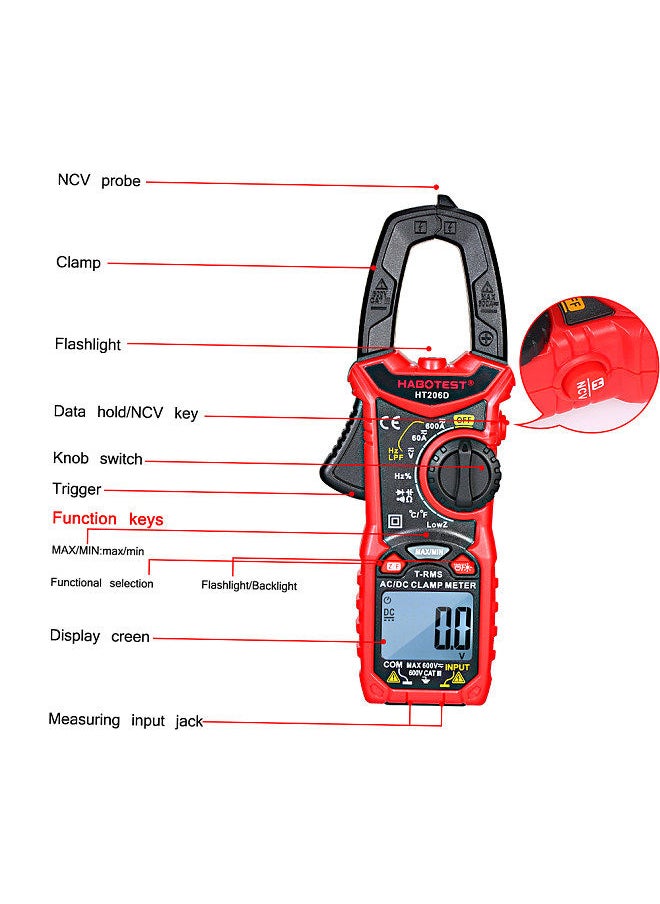

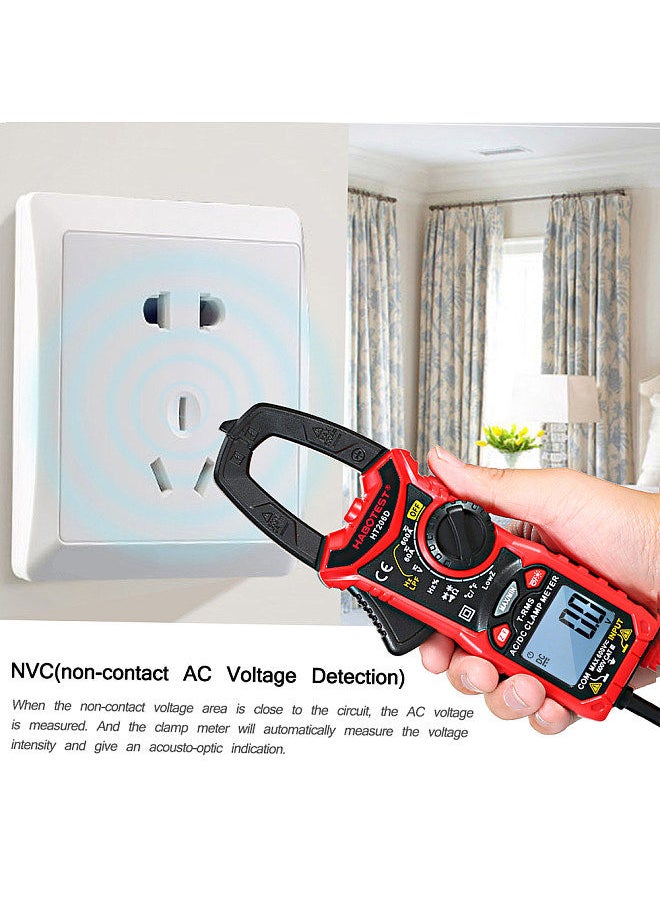

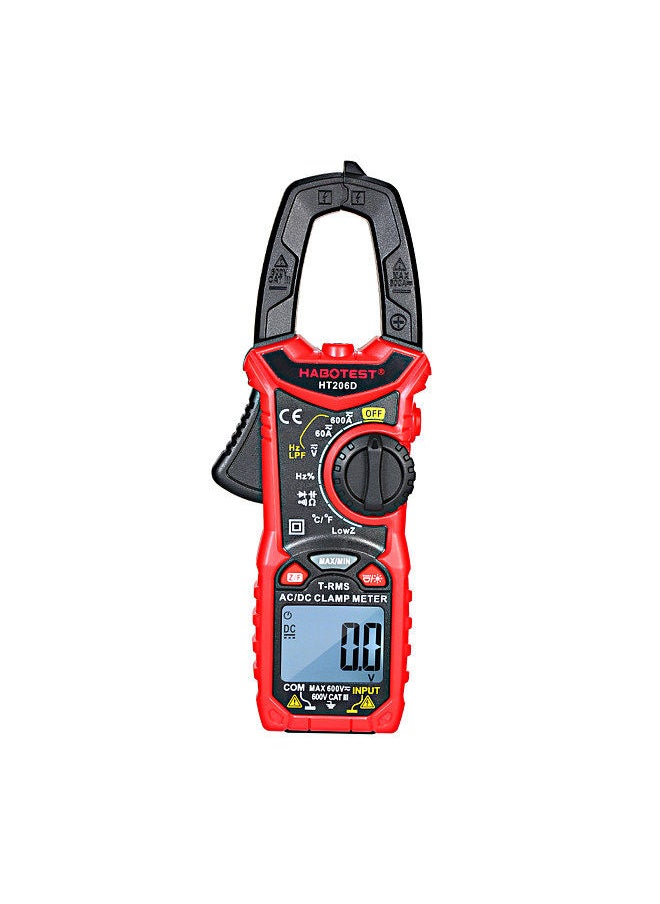

AC/DC Digital Clamp Meter for Measuring AC/DC Voltage , AC/DC Current, Frequency, Duty Cycle, Diode, Resistance, Continuity, Transistors Test, NCV Clamp Multimeter

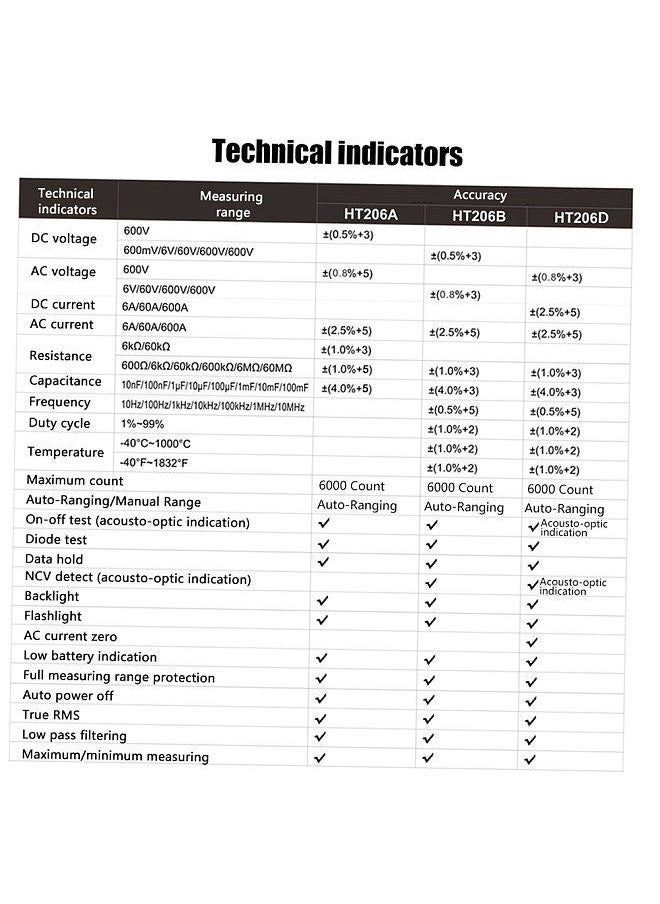

Specifications: Color: Red Model: HT206A/HT206B/HT206D(optional) Material: ABS Display: LCD Display Jaw Opening: 25cm DC voltage: 600mV/6V/60V/600V(±0.5%reading+5) AC voltage: 6V/60V/600V(±1.0%reading+5) AC current: 6A/60A/600A(±2.5%reading+8) Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ(±1.0%reading+5) Capacitance: 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF Duty cycle: 1-99% Frequency (Hz): 10Hz~10MHZ  Maximum count: 6000 Temperature: -40~1000℃ / -40～1832℉ Power Supply: 2* 1.5V AAA Batteries (Not Included) Operating Temperature & Humidity: 0-40℃ (＜80%RH ,＜10℃ non-condensing) Storage Temperature & Humidit: -10-60℃ (＜70%RH,remove the battery) MAX.Voltage between terminals and earth ground: 600V Over range indication: it displays "OL" Continuity: orange backlight on HT206A Item weight: 190g/0.418lb Item size: 19.3*7.3*3.4cm / 7.6*2.9*1.3in Package weight: 377g/0.83lb Package size: 22.5*11.5*4.5cm/8.86*4.53*1.77in HT206B Item weight: 191g/0.42lb Item size: 19.3*7.3*3.4cm / 7.6*2.9*1.3in Package weight: 392g/0.86lb Package size: 22.5*11.5*4.5cm/8.86*4.53*1.77in HT206D Item weight: 194g/0.43lb Item size: 19.3*7.3*3.4cm / 7.6*2.9*1.3in Package weight: 395g/0.87lb Package size: 22.5*11.5*4.5cm/8.86*4.53*1.77in NOTE: The voltage over 600V can’t be measured; otherwise the instrument may be damaged. Be careful when measuring high voltage to avoid electric shock or personal injury. Test the known voltage with the meter before use, confirm the instrument function is intact. Please allow 1-3cm differences due to manual measurement.
