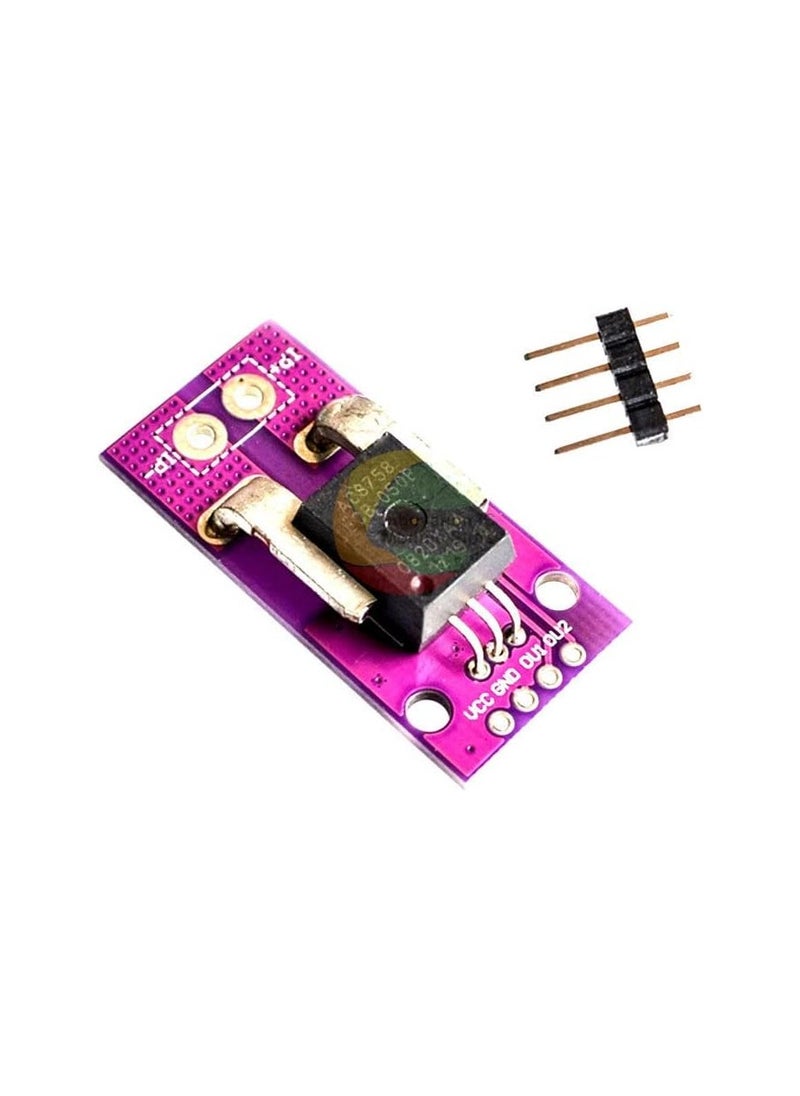

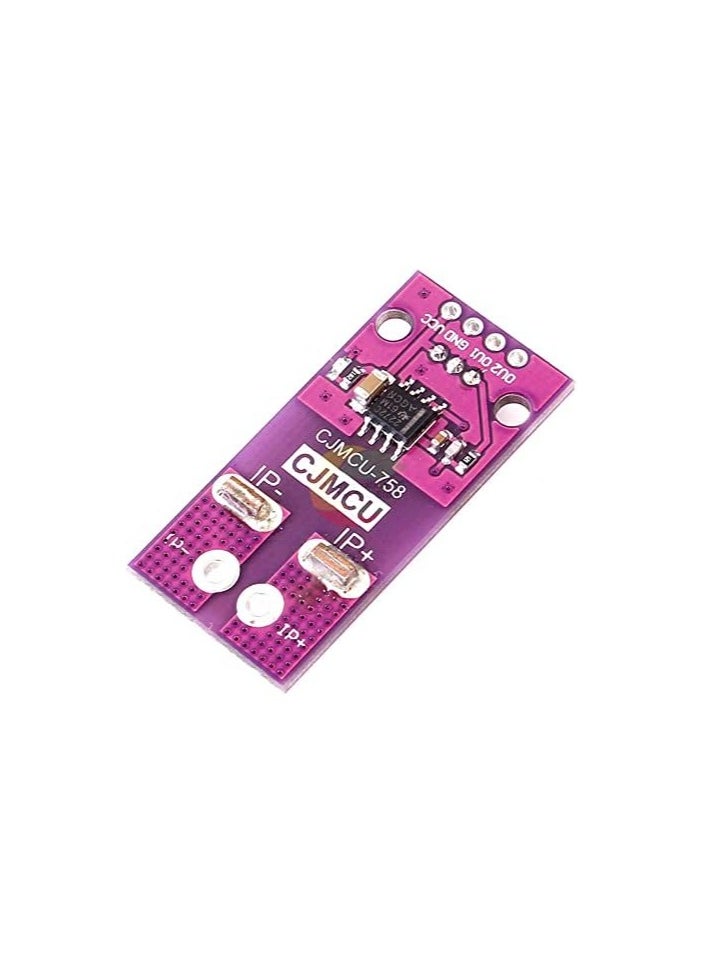

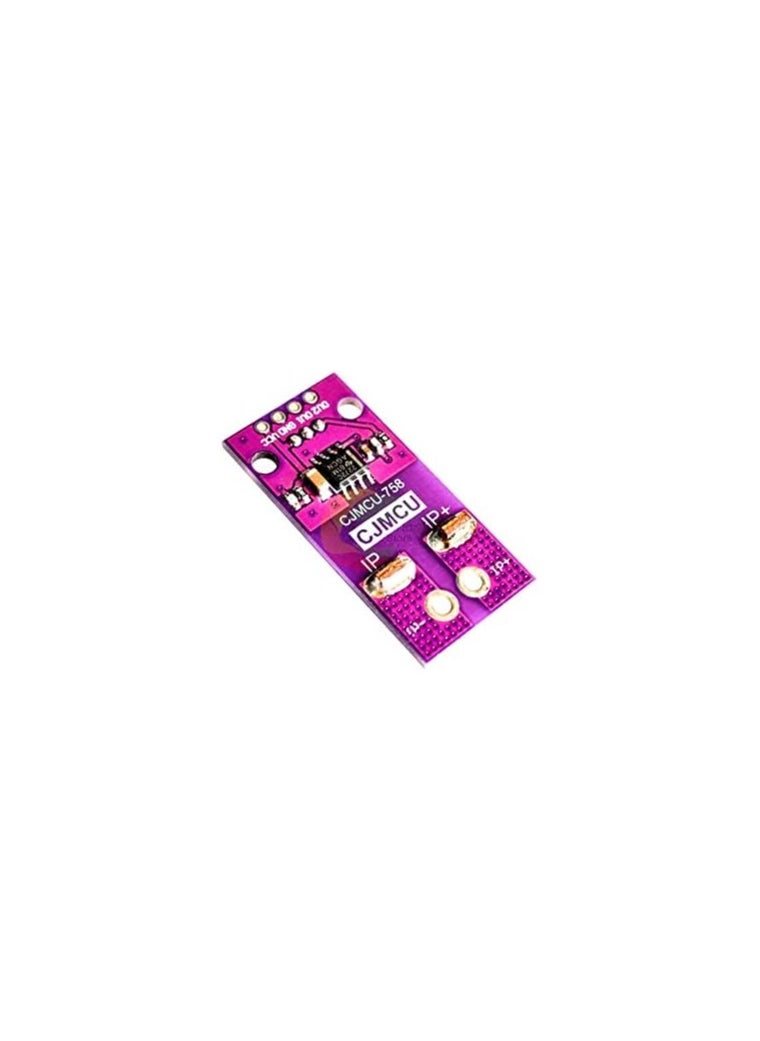

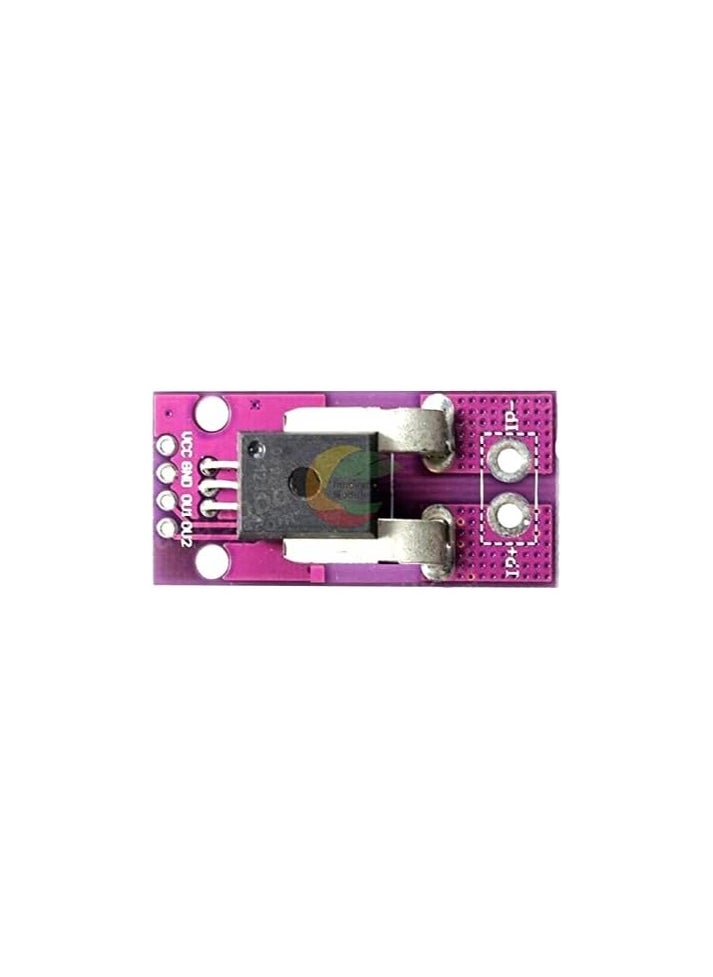

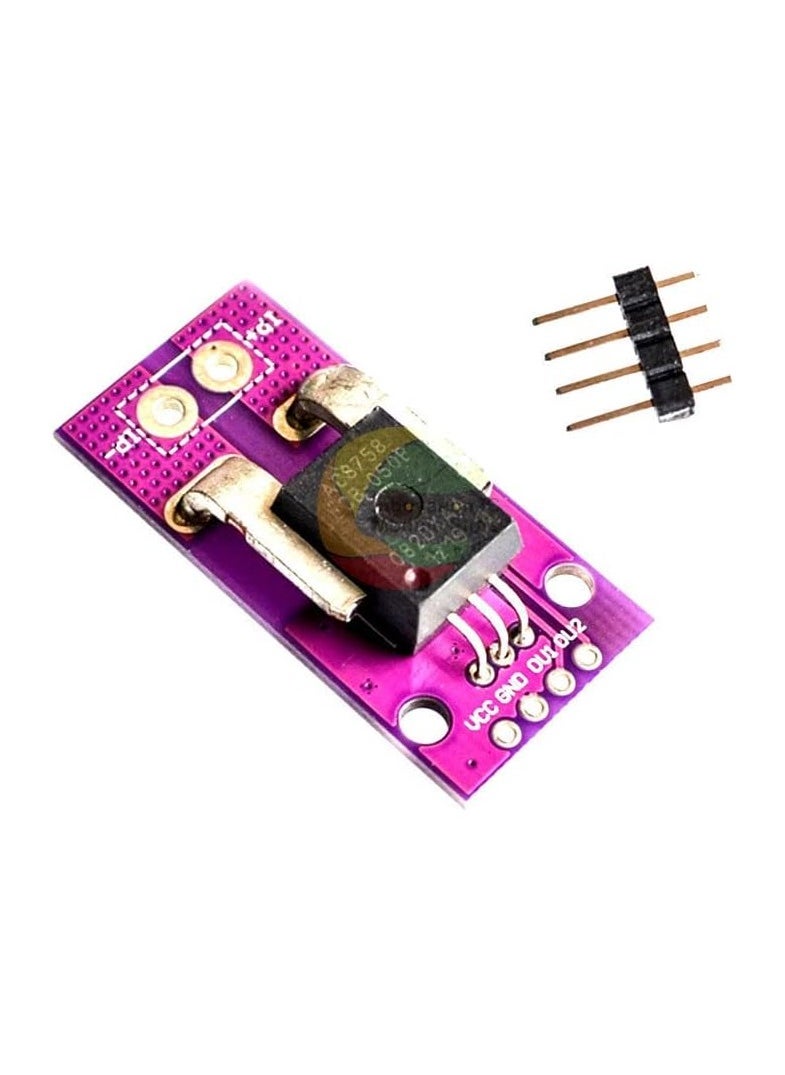

Hall Current Sensor Linear Current Sensor Module for Arduino

OverviewParameter: Working voltage: 3 -5V (MAX 8 V) Static output voltage: VCC/2 Working current: 13.5mA (MAX) Storage temperature range: -65°C -165°C The maximum output current (VIOUT-GND): 3mA Internal bandwidth: 120KHz Module size: 37mm * 18mm Feature: Industry-leading noise performance through patented amplifier and filter design processes Integrated shielding significantly reduces current conductor-to-wafer capacitive coupling due to high dV/dt signals and prevents bias drift in high-end, high-voltage applications. Improve total output error rate by temperature gain and offset adjustment Small package size for easy installation High reliability monolithic Hall IC Ultra low power loss: internal conduction resistance 100 μΩ Insulation design enables economical high-end current sensing in high voltage systems Meets AEC Q-100 standards 3.0 to 5.5V, single supply operation 120 kHz typical bandwidth Corresponding to the step input current, the output rise time is 3 μs Output voltage is proportional to AC or DC current Calibrated at the factory to ensure accuracy Extremely stable output offset voltage Near zero hysteresis The relationship between voltage output and current input: VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the static output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-. For example, suppose the sensor model is 050B, VCC is 5V, and“I” current is 10A, then the output is 5V / 2 + 40mV / A x 10A = 2.9V. Package Included: 1 * ACS758LCB-050B-PFF-T Linear Current Sensor Hall Current Module
