HDMI Capture Card, HDMI Video Capture Card with Loop-Out, 4K HDMI to USB Capture Card Audio Video Recorder for Gaming/Live Streaming/Video Conference, Compatible with Nintendo Switch/PS4/PS5/Xbox One

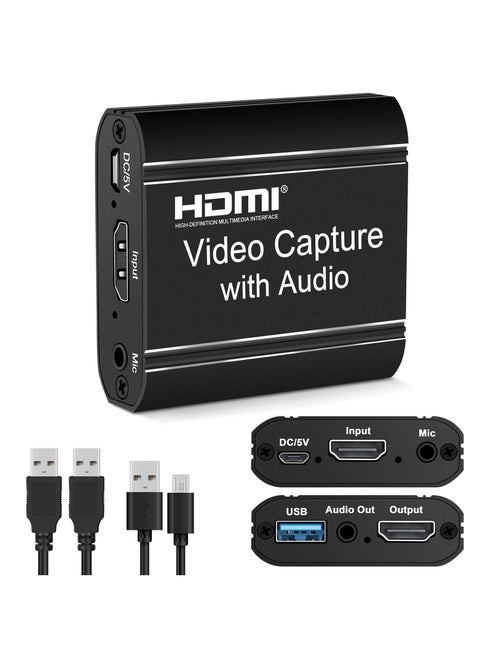

HDMI Capture Card

How to set up the device?

Step 1:

1. Open OBS as shown in Figure 1-1: Click the "+" source to add a video source.

2. Double-click the video source added in the red box above to enter the setting page.

3. In the red arrow bar, select "Video Capture Device".

Step 2:

2.1 Select Device: USB Video

2.2 Custom Resolution: Set Resolution/FPS Type to "Custom"

2.3 Set the resolution: 1920x1080

2.4 Set the frame rate: 60 frames per second

2.5 Set video format: select "Any"

Step 3:

Click "Start Recording" to record the video and audio of the source.

Your recording file will be saved in the file in the upper left corner.
