Highlights- No driver required, plug and play.
- USB3.0, 300-350MB/s throughput and compatible with USB 2.0.
- The process of video and audio is done by the dongle and will not occupy the CPU.
- It can capture one single channel HD HDMI video signals, automatically detect the input video formats and adjust output size and frame rate automatically.
- The input and output video signal can reach 1080P/60 Hz.

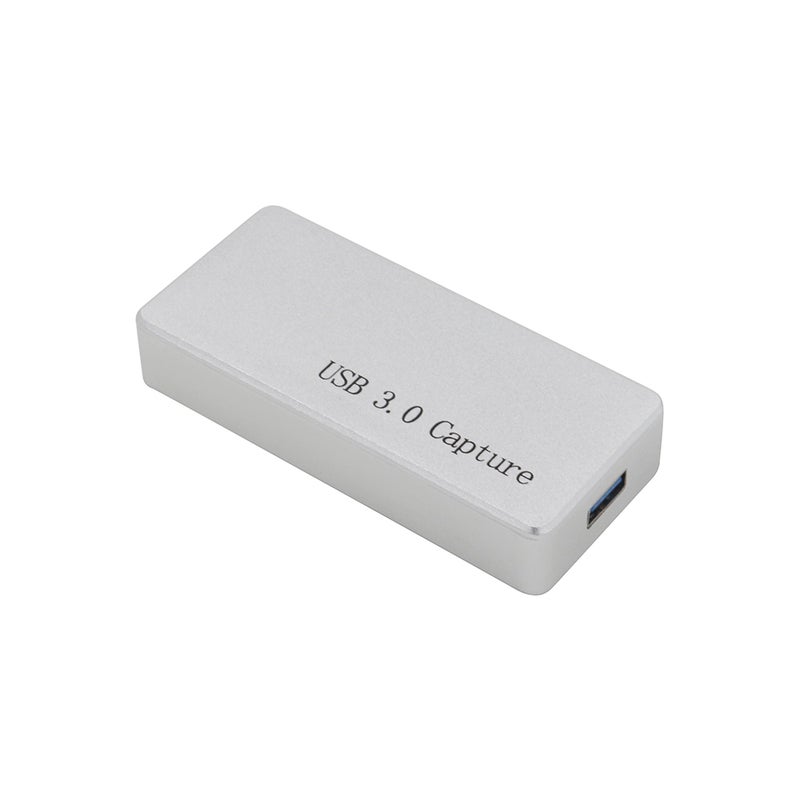

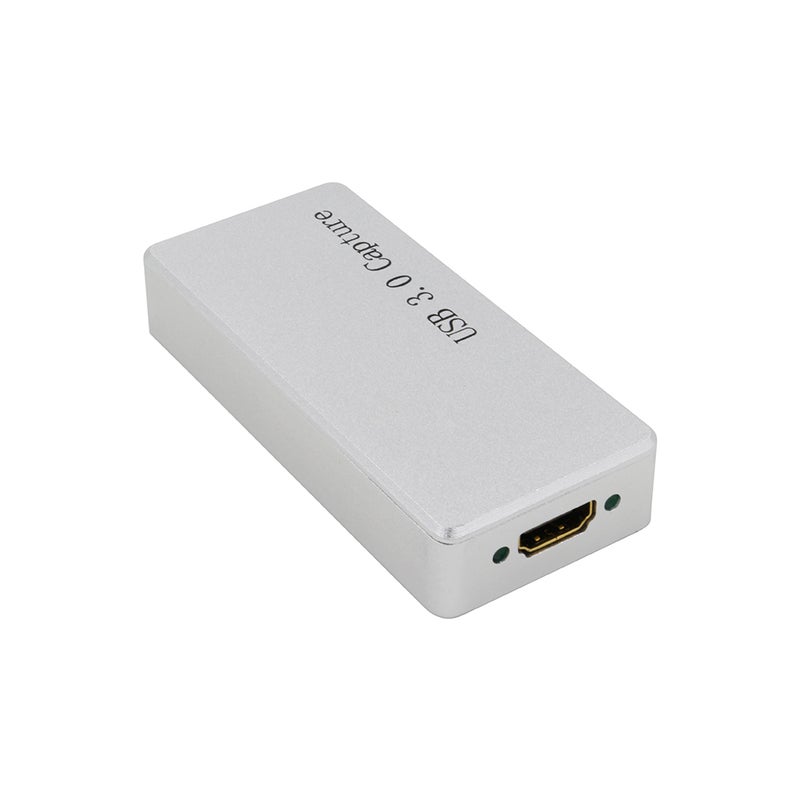

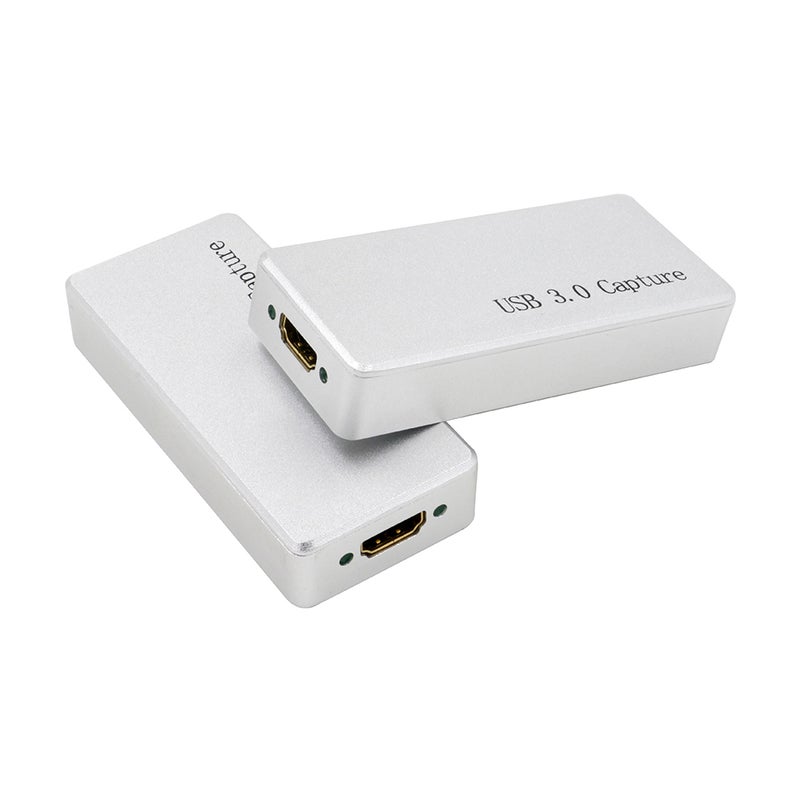

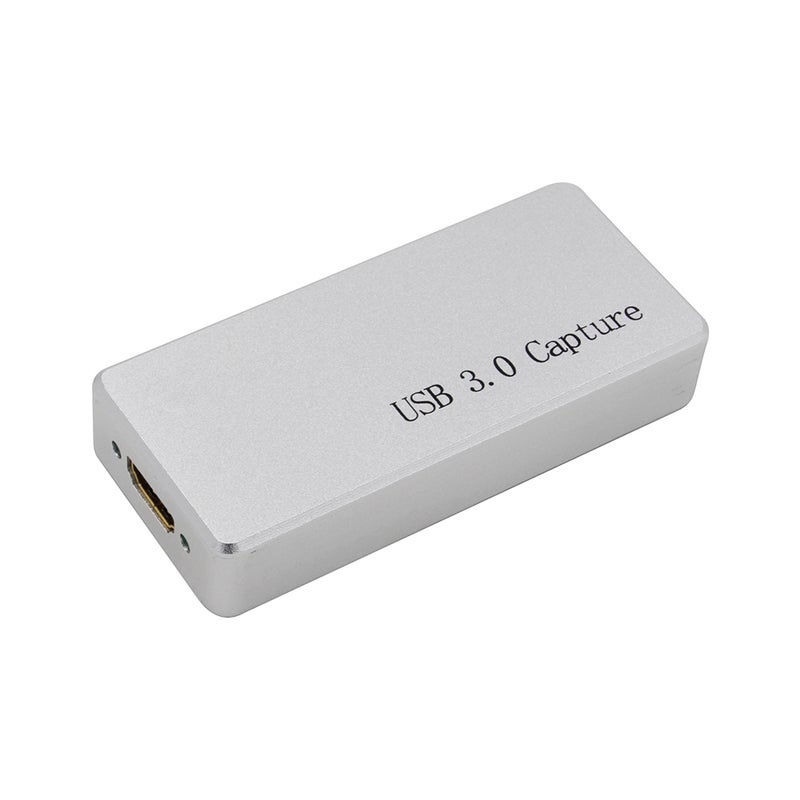

OverviewThis USB3.0 video capture dongle is easy to carry, it has superior performance, superior compatibility, simple installation and many other features. It can capture one 1080P input and output signal. Suitable for Windows, Linux, OS X and USB 3.0 interface, compatible with many USB 3.0 chipset (Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 x1 expansion via USB 3.0 interface. The video capture dongle meets UVC and UAC standard, no install drivers and settings required, easy and convenient to use.
Input interface:
input formats: 480i,480p,576i,576p,720p50,720p60,1080i50,1080i60,
1080p24/25/30/50/60
Frame rate: 25/29.97/30/50/59.94/60 fps
Audio and video capture: Standards of UVC and UAC
Support of OS: Windows 7/Windows Server 2008 /Linux (Kernel version 2.6.38 and above)/OS X (10.8 and above)
Development interface compatibility: DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux), OS X (QuickTime)
Power consumption: ≤ 2.5W
Working temperature: 0-50℃
Storage temperature: -20-70℃
Storage humidity: 5%-90%
