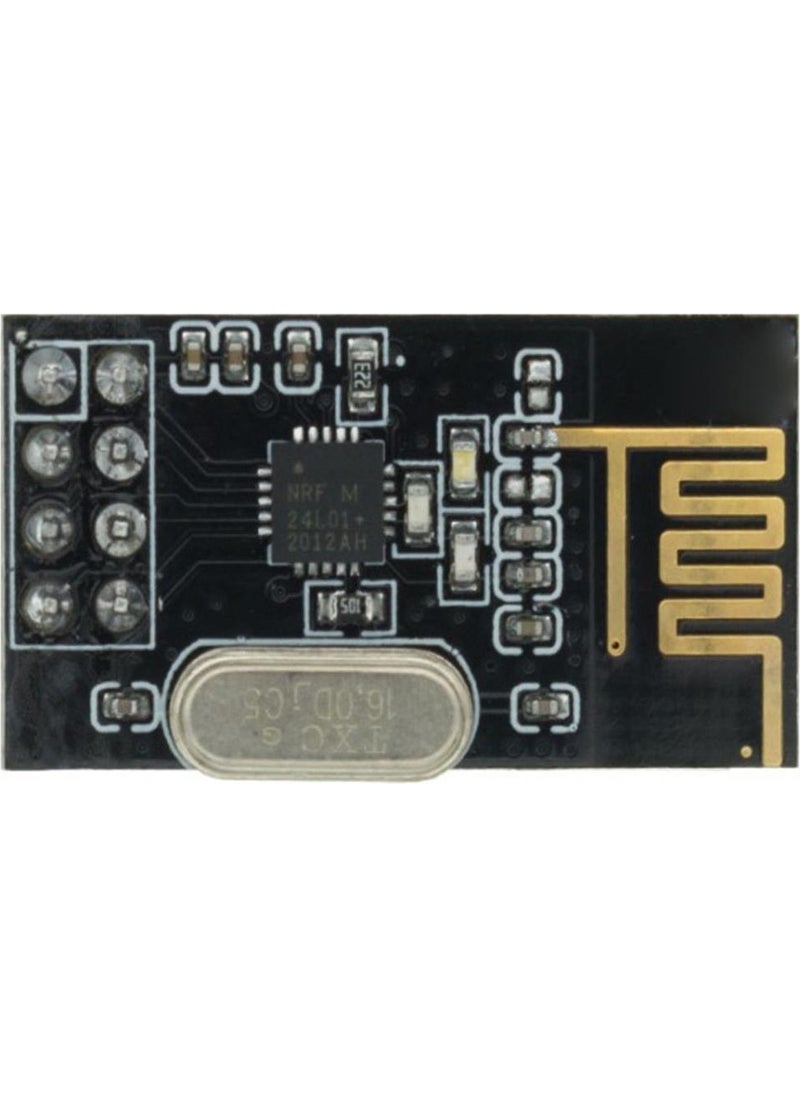

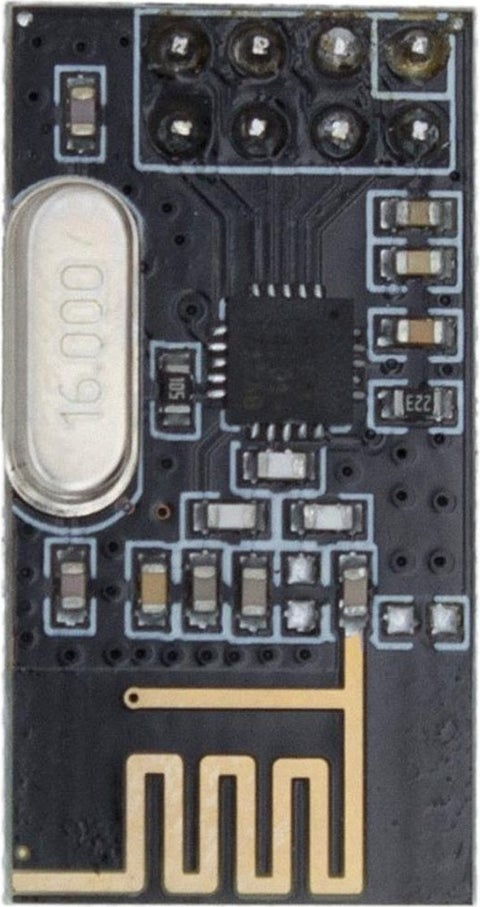

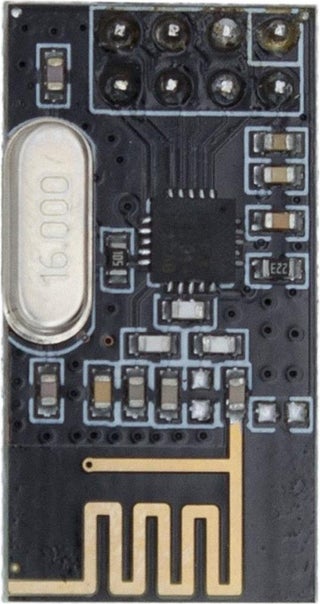

Hobby Mechatronics NRF24L01 2.4ghz Wireless Module (Arduino Compatible)

• NRF24L01 is a wireless communication module operating in the 2.4 Ghz frequency band. NRF24L01 module communicates with microprocessors via SPI communication. NRF24L01 module enables low-budget wireless communication. When this RF module operates in the 2.4ghz ISM band, it does not cause any problems in unlicensed use. With NRF24L01, point-to-point data transfer or star connection data transfer can be made.

  Arduino, raspberry pi etc. It can be easily used when developing applications with development cards. Preferred for price/performance in wireless communication projects



  Technical Specifications

  • Model: NRF24L01 Wireless Communication Module
  • Working Voltage: 1.9v - 3.6V
  • Standby Current: 32 uA
  • Shutdown Mode Current: 400 nA
  • 130 us fast switching and wake up time
  • Operating Frequency: 2.4Ghz - 2.5Ghz
  • Internal 2.4Ghz PCB antenna
  • Supports data reception of up to 6 channels.
  • 3 selectable transmission rates: 2Mbps, 1Mbps, 250Kbps
  • Supports 2 Mbps high quality VoIP.
  • Arduino etc. When using with control cards, it is recommended to use it with a carrier (power card).

  Package Included

  • 1 NRF24L01 Wireless Communication Module
