Highlights- [3-in-1 Multifunction Multimeter] Digital multimeter, electrical test pen and flashlight. 2 measuring pens are easy to install and use. Widely used in electrical testing, automotive repairing, and more household/ industrial electrical problems.
- [Auto Recognition/ Manual Selection] High accuracy, wide measuring range, 4000 counts, auto recognition or manual selection. It can test AC voltage, DC voltage, resistance, frequency and continuity. And HT125B can also test capacitance and diode.

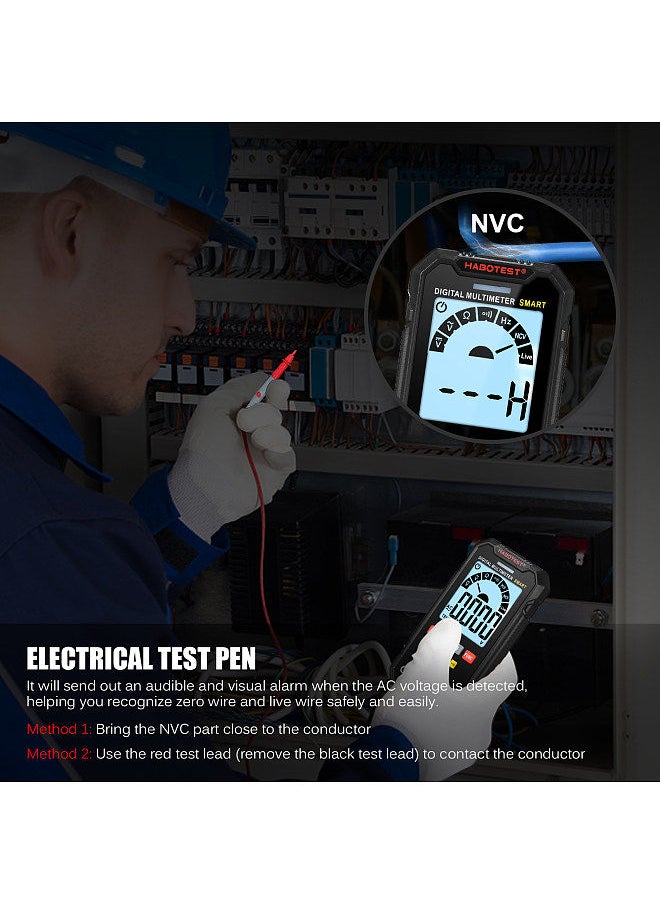

- [Electrical Test Pen] Bring the NVC part close to the conductor or use the red measuring pen (remove the black measuring pen)to contact the conductor, and it will send out an audible and visual alarm when the AC voltage is detected

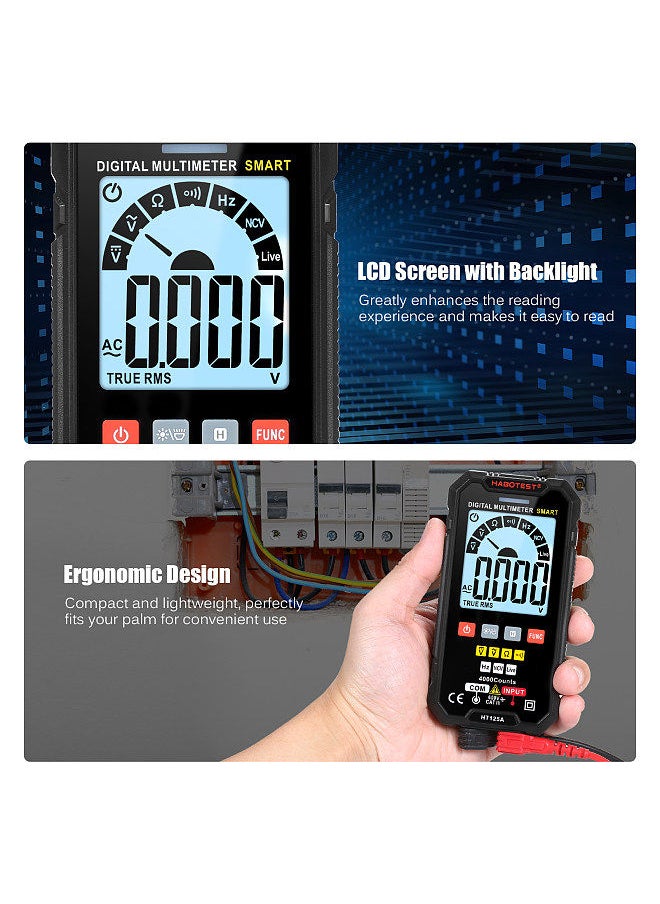

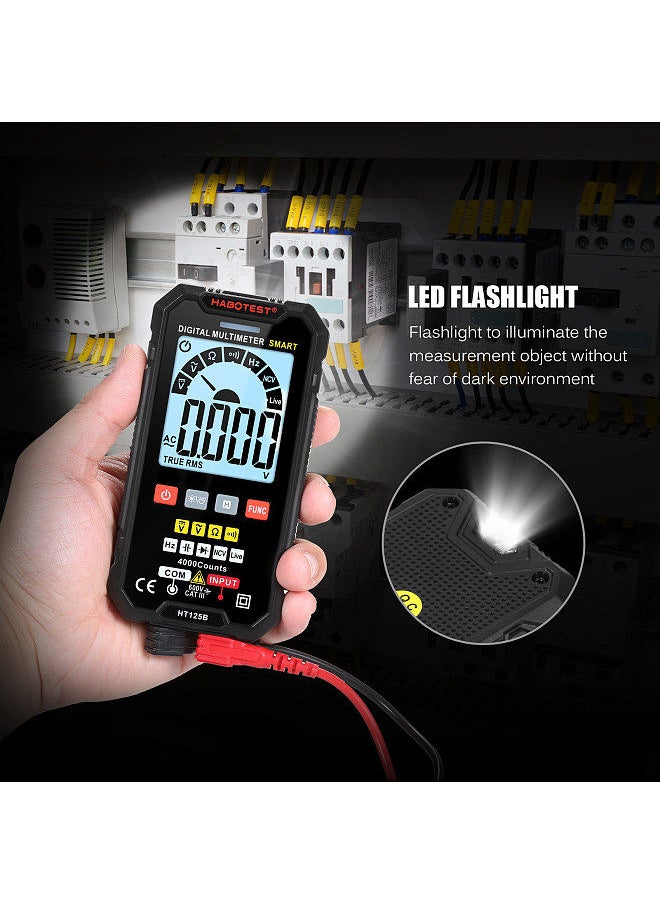

- [Backlight LCD Screen & Flashlight] Clear LCD screen with backlight greatly enhances the reading experience and makes it easy to read. Flashlight to illuminate the measurement object without fear of dark environment.

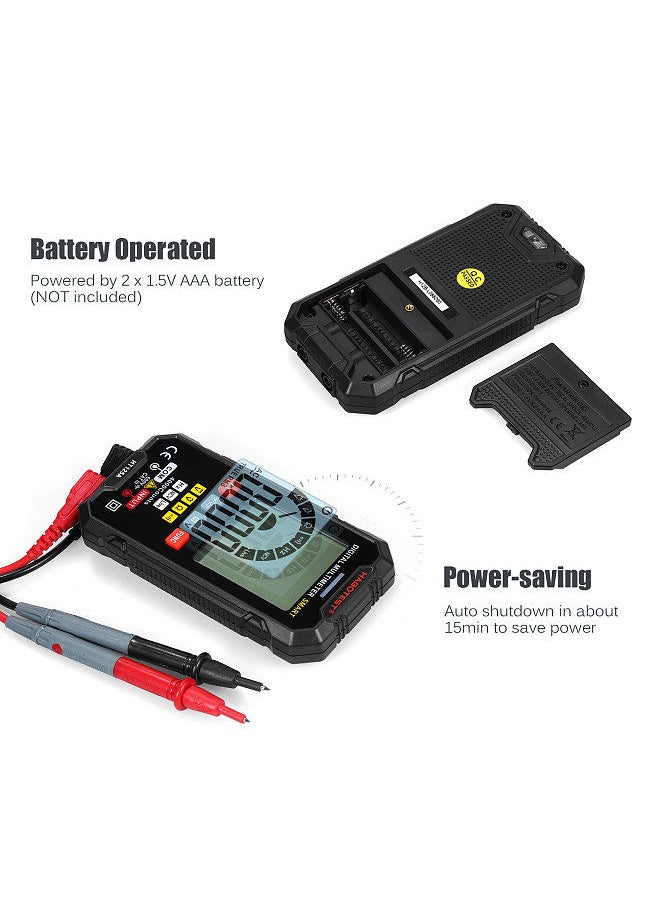

- [Battery Operated & Compact Size] Powered by 2 AAA batteries, auto shutdown in about 15min to save power. Ergonomic design, perfectly fits your palm for convenient use. Concise appearance, compact and lightweight, easy to carry.

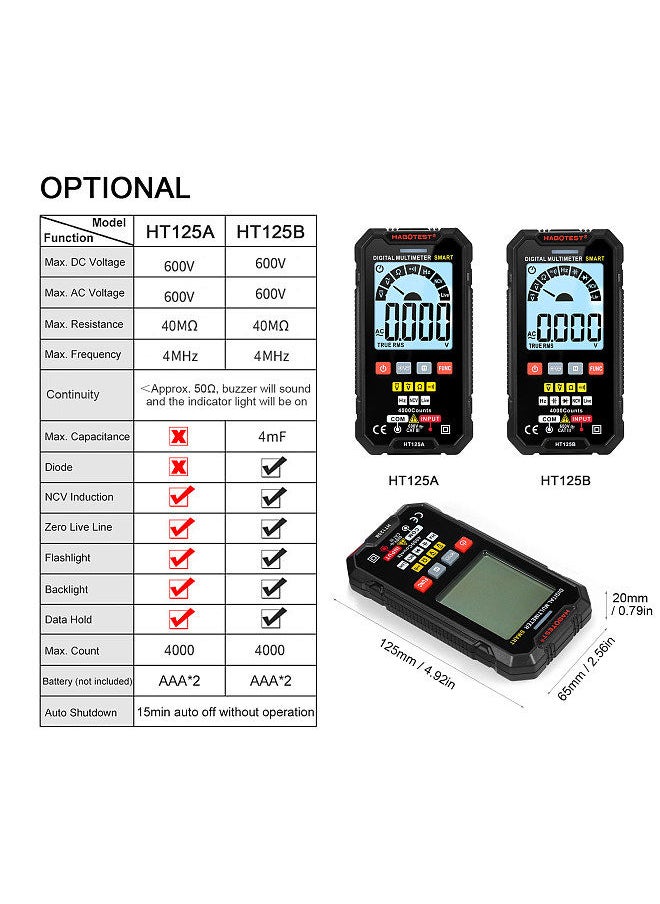

OverviewSpecifications:
Model: HT125A/ HT125B (Optional)
--HT125A: without Capacitance Measurement/ Diode Test
--HT125B: with Capacitance Measurement/ Diode Test
Color: Black
Material: ABS
Screen: LCD with Backlight
Max. Count: 4000 Counts
Max. Voltage: 600V DC or AC
Max. Resistance: 40MΩ
Continuity: ＜Approx. 50Ω, buzzer will sound and the indicator light will be on
Max. Frequency: 4MHz
Max. Capacitance: 4mF (HT125B only)
Display Diode Voltage Drop: (HT125B only)
Power Supply: 2 * 1.5V AAA Battery (NOT included)
Auto Shutdown: about 15min
Operating Height: ＜2000m
Operating Environment: 0~40℃ (＜80% RH, ＜10℃ non condensing)
Storage Environment: -10~60℃ (＜70% RH, remove the battery)
Item Size: 125 * 65 * 20mm / 4.92 * 2.56 * 0.79in
Item Weight: 106g / 3.75oz
Package Size: 16.5 * 9.5 * 5cm / 6.50 * 3.74 * 1.97in
Package Weight: 234g / 8.26oz
