Specification:
Item type: MDI2 multiple diagnostic interface scanner.
Material: ABS
Product description
MDI 2 is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems. The MDI 2 is designed to connect the vehicle to a host PC computer application, which then works via the MDI 2 for data transmission and electronic control unit (ECU) reprogramming.

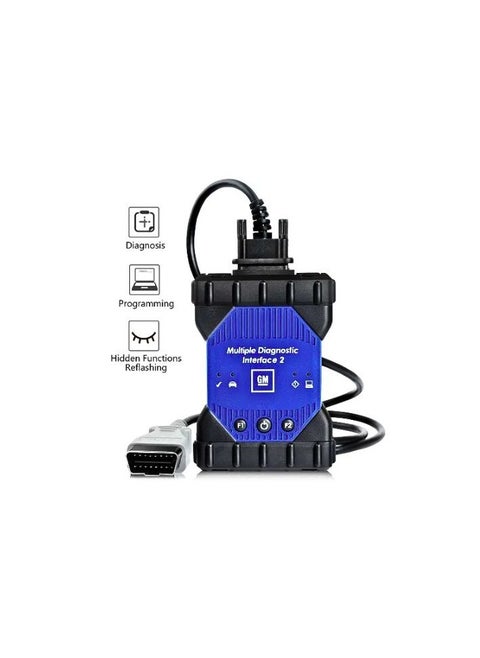

MDI 2 Multiple Diagnostic Interface with Wifi Card
MDI 2 Description:
The Multiple Diagnostic Interface 2 (MDI 2) is used by professional technicians as an aid in diagnosing and repairing electrical and electronic systems in motor vehicles. The MDI 2 is designed to connect the vehicle to a host PC computer application, which then works via the MDI 2 for data transmission and electronic control unit (ECU) reprogramming.
The PC-based Multiple Diagnostic Interface (MDI 2) provides increased processing performance, security and faster programming speeds in Global A and future
Global B Vehicles
The MDI 2 supports diagnostic applications: for GDS 2, data bus diagnostic tool and Tech2Win. It also supports pass-thru programming applications: TIS2Web SPS. It replaces the first generation MDI introduced in 2007 for pass-thru programming on current models. The MDI 2 is backward compatible so it can be used to perform pass-thru programming on vehicles built since 1996 using the J1962 connector with a DLC cable. The connection between the MDI 2 and the PC can be established via standalone (USB) and the dealer network (CAT5).
Use:
Plug and play.
