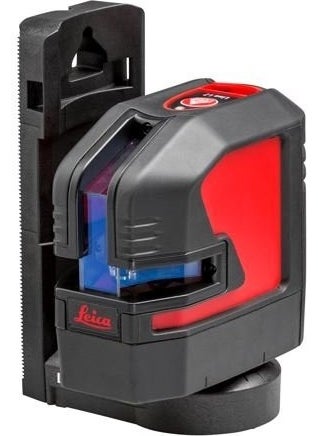

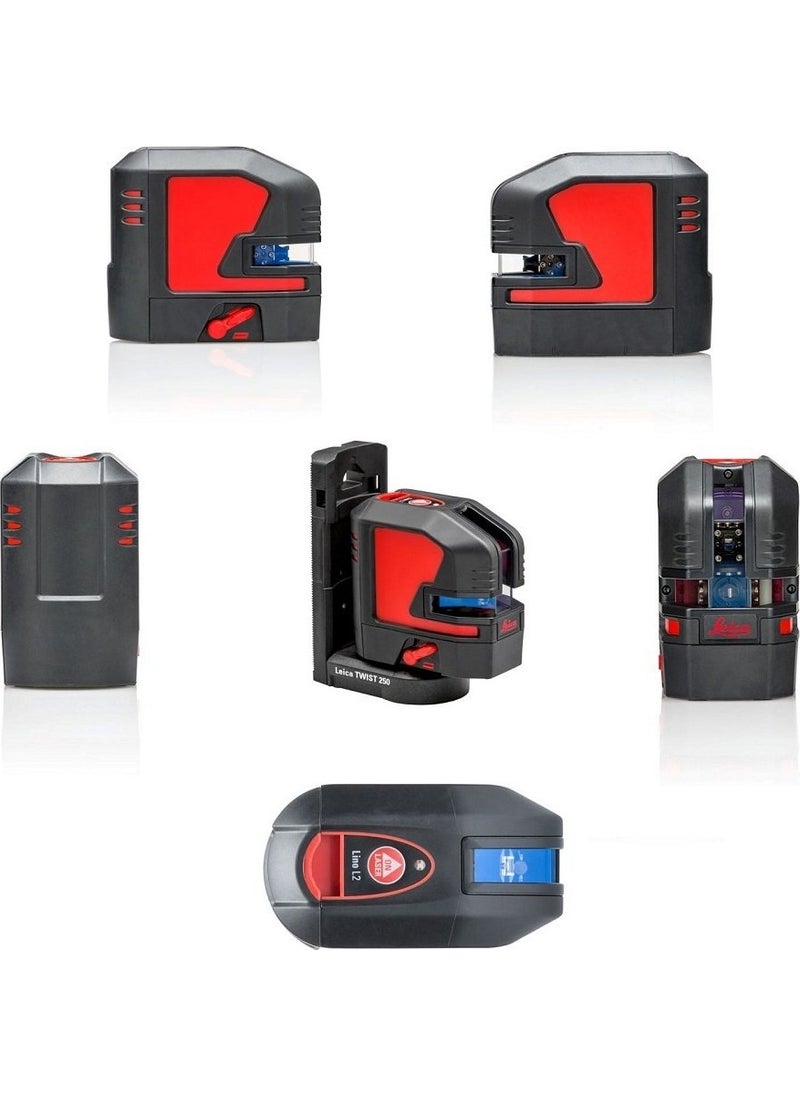

Lino L2G Cross Line Rechargeable Green Laser Scale

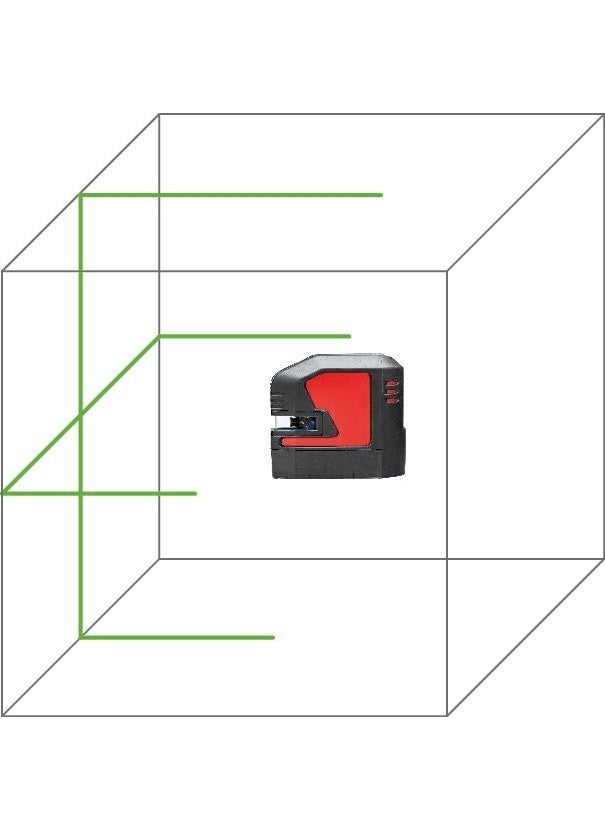

• Horizontal and Vertical diagonal lines
• Ultra-Powerful laser diodes providing high visibility
• Opportunity to work in large areas without losing visibility
• Self-leveling pendulum system
• We can be seen comfortably in an area of ​​25 meters diameter
• Functional use with magnetic stand



LEICA LINO L2G Rechargeable Laser Scale Technical Specifications

• Laser light: Horizontal and Vertical Green Laser Light
• Visible light angle: Vertical 170° - Horizontal 180°
• Usable distance: within 25 meters diameter
• Usable distance with RGR 200 Receiver: Within 80 m diameter
• Alignment accuracy: ±0.2 mm/m or ±1.0 mm/5 m or ±2.0 mm/10 m
• Laser light width: 2 mm for a distance of 5 meters
• Self Leveling angle: up to ±4°
• Self-Balancing time: < 3 sec
• Out of scale warning: Blinking warning
• Pendulum lock: Yes
• Laser class and type: Class 2, 635 nm ±5 nm
• Protection class: IP54 (IEC 60529) against dust and splash water
• Battery type: Lithium 5200 mAh / 18.7 Wh battery
• Ability to use with battery: Yes  ; With its original battery holder (optional product)
• Working time: With alkaline batteries; 26 hours with 2 lasers on, 44 hours with 1 laser on
• Low battery indicator: With LED warning light
• Automatic shutdown: Yes
• Ambient temperature during use: -10 - 50 C°
• Storage temperature: -25 - 70 C°
• Over temperature warning: Yes
• Tripod mount: 1/4" female
• Dimensions (W x L x H): 110 x 60 x 100 mm
• Cardboard box dimensions (W x L x H): 168 x 190 x 95 mm - 1.2 kg
• Weight: 530 g (including batteries)

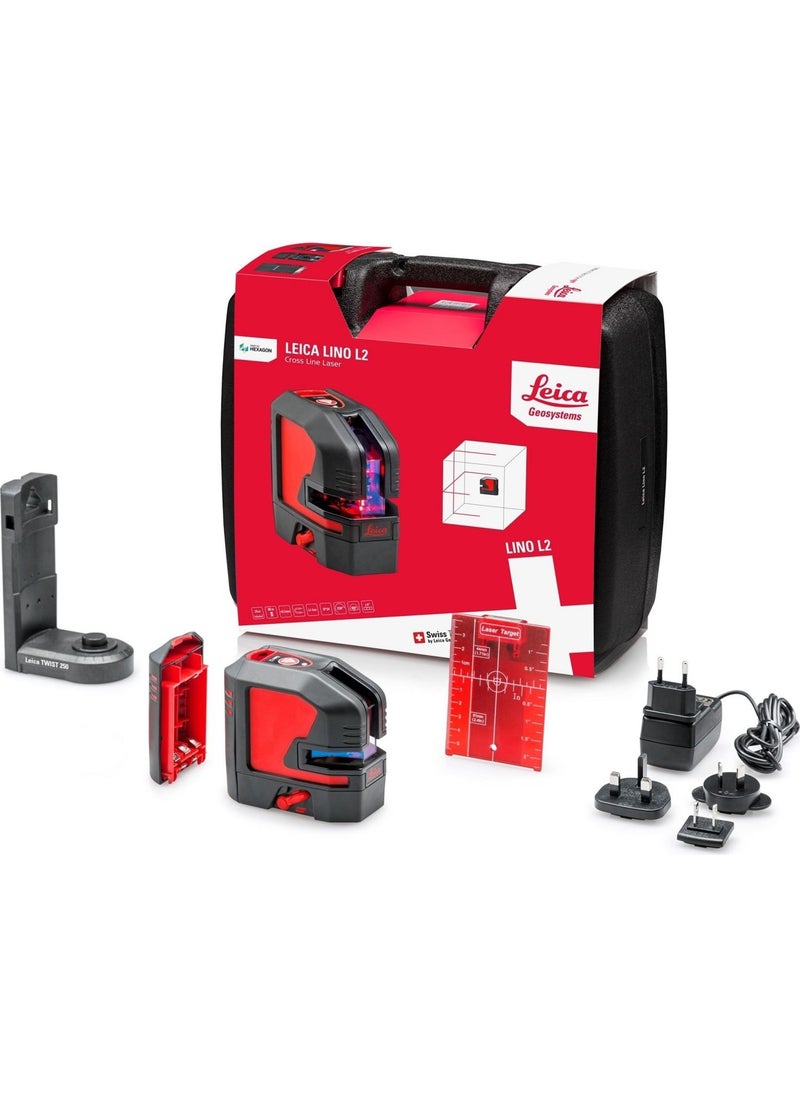

LEICA LINO L2G Rechargeable Laser Scale Scope of Delivery

• Leica Lino L2G Laser Scale
• Twist 250 magnetic adapter
• 5200mAh Battery
• Magnetic target plate
• Quick user guide
• Blue calibration certificate
• Sturdy plastic bag
• battery charger



• RGR 200 receiver (for working in very bright or open areas)
• Tripod tripod 3 legs 150 cm
• UAL 130 vise clamping device
• Laser Glasses
