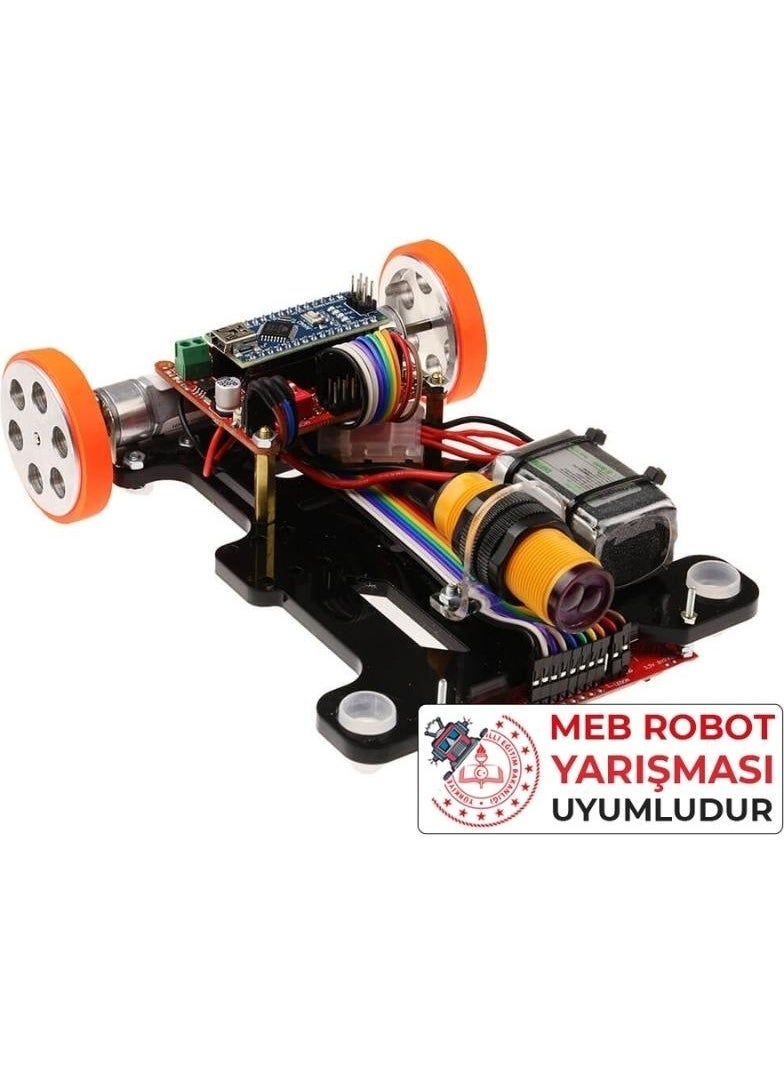

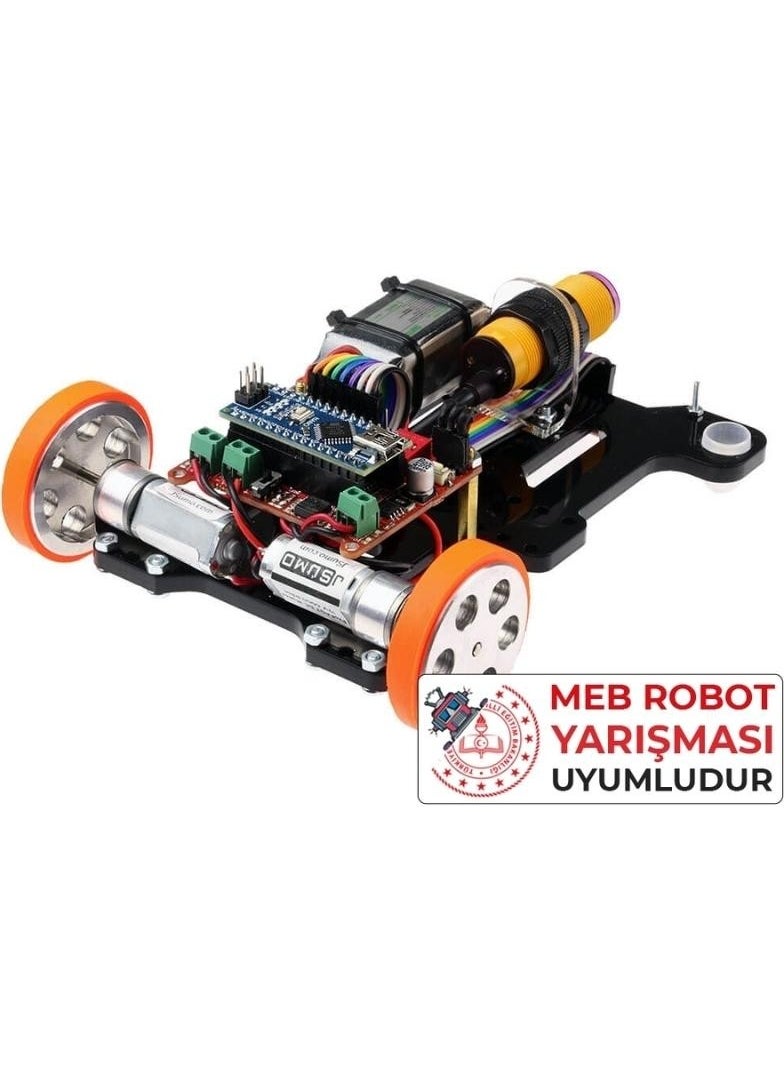

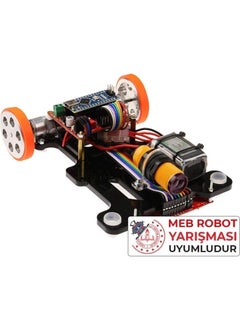

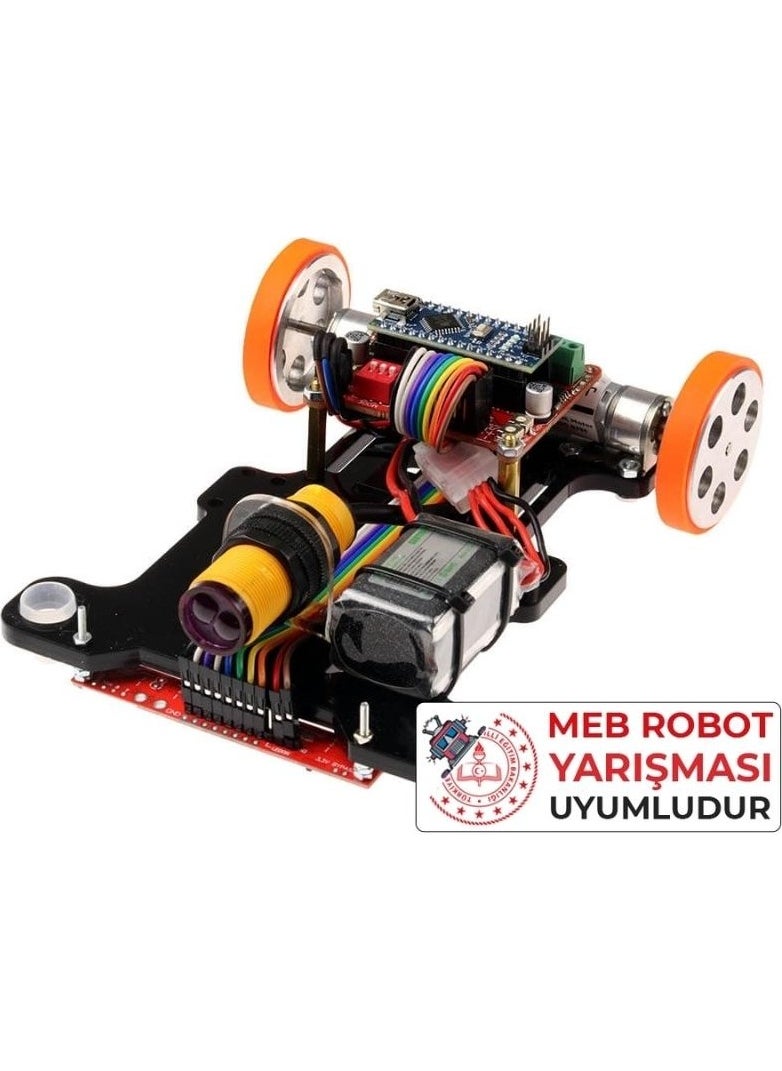

Marathon Fast Line Follower Robot Kit - Unassembled

Marathon Fast Line Follower Robot Kit - Unassembled

The Marathon Fast Line Follower Robot Kit brings a modern interpretation of the elegance and speed of Japanese style to the world of fast line follower robots. Specifically adapted to the official rules of the 2023 MEB Robot Competition, this kit is an ideal option for competitions within the 12cm x 16cm x 5cm size limit.

Why Marathon Fast Line Follower Robot Kit?

• Japanese Style Design: The engineers who created the kit were inspired by Japanese style fast line follower robots and combined aesthetics and performance. The kit has an elegant and impressive design.
• PID Controlled Fast Line Following: Marathon Fast Line Following Robot uses PID controlled fast line following code to successfully perform line following tasks. This minimizes the robot's deviation rate from the line and provides excellent tracking.
• Customizable Arduino Software: The Arduino software is open source, which allows you to customize and develop the codes. You can create your own algorithms and strategies.
• High Speed DC Motors: The kit includes PROFAST series High Speed DC Motors, specially produced for line follower robots. These motors provide high performance and speed.
• Advanced Electronic Components: The kit is equipped with advanced electronic components such as 8-line sensor and Wing Fast Line Follower Robot Control Board. These components increase the functionality of the robot.
• Powered by LiPo Battery: Marathon Fast Line Following Robot is powered by 11.1V Lithium Polymer (LiPo) batteries. These batteries are known for their high current delivery capability and long life.

Technicial Specifications:

• 2-motor balanced design provides high acceleration and traction.
• JSumo brand closed geared high speed 4000 Rpm motors.
• 3-cell LiPo battery capable of delivering 12.6 Volts and high current when fully charged.
• Equipped with 8 line sensor QTR-8RC.
• Specially formulated 39mm diameter silicone wheels provide excellent grip on the ground.
• The MZ80 sensor detects the starting wall with an adjustable range of up to 50cm.
• Wing Arduino Nano board includes motor driver, voltage regulator and Arduino Nano.

Product Content:

• Arduino Nano Clone and USB Cable
• Wing Fast Line Follower Robot Card
• MZ80 Infrared Object Sensor
• QTR 8RC Infrared Line Sensor
• 2x Profast 12V 4000RPM DC Motor
• 2x Electron Silicon Wheel
• 2x 16mm Motor Connection Apparatus
• MZ80 Plastic Apparatus
• 11.1V LiPo Battery
• Marathon Fast Line Following Robot Body
• 2x Mini Plastic Caster Wheels
• 10x Female-Male 20cm Jumper Cable
• JST Connector
• 4x Engine Connection Cable
• 4x Metal Distance for Connection
• M3 and M2 Screw and Nut Set

The Marathon Fast Line Follower Robot Kit is perfect for exciting competitions and creative engineering projects. Designed for both beginners and experienced engineers. Get ready to explore your potential in the world of line follower robots with this kit.
