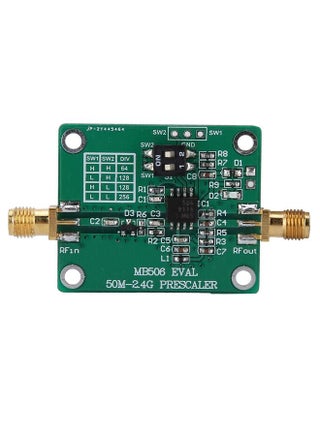

MB506 Module 2.4GHz Microwave Prescaler 64 128 256 Frequency Divider For DBS CATV Transceiver

Highlights

• MB506 is a high frequency prescaler with a frequency up to
• 4GHz.
• The impedance change is lower, which can get better classification performance and improve the dynamic range.
• It divides the input frequency by the modulus of 128 or 256, and the output level is
• 6V at the peak-to-peak value at the ECL level.
• The divider ratio can realize 64, 128 and 256 divider by two-digit dialing switch or external interface.
• Complete Phase Locked Loop synthesizer circuit with MB87006A, Phase Locked Loop synthesizer IC.
