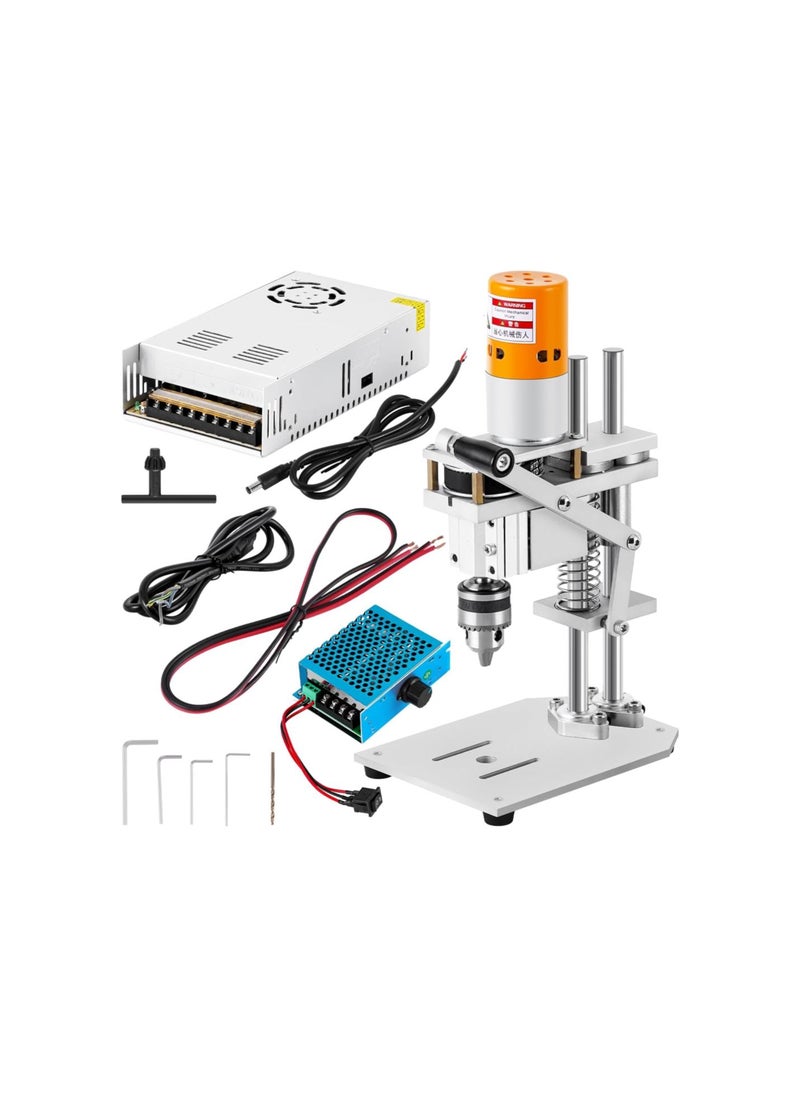

Mini Bench Drill Press Variable Speed Desktop Precision Drill Press 360W Portable Drilling Machine 110V for Wood, Metal, Crafts and Jewelry Making, CNC 795 Motor B10 Chuck, 1.97-inch Drilling Depth

• Belt width 10 MM thick 2 MM,no slippage and no breakage.
• The small wheel drives the big wheel to increase the torque.

• Pure copper coil
• Front and rear double ball bearings.
• Voltage: DC 12-24 V universal
• Speed: 1000 rpm at 12 V and 2000 rpm at 24 V

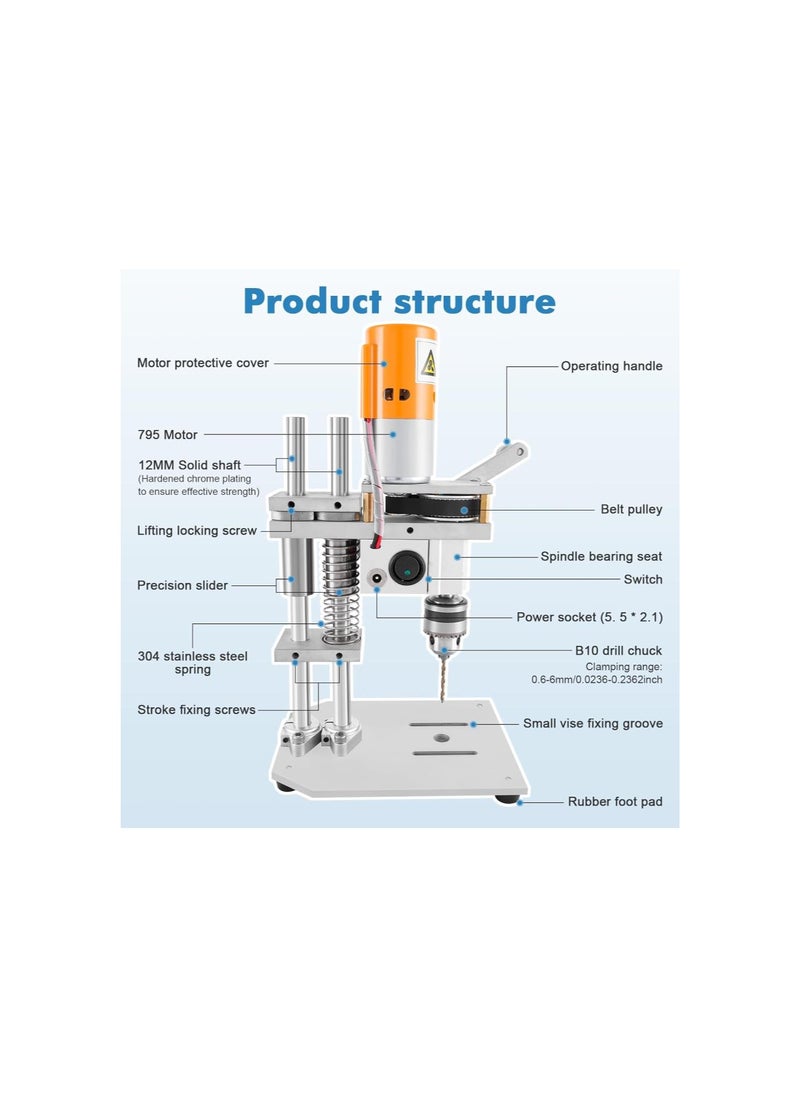

• 1. Lifting locking screw
• Loosen these two screws and adjust the machine to the appropriate position and then locking them.
• 2. Stroke fixing screws
• You can control the drilling depth by adjusting these two screws.

• Precision straight line slider
• Tightly matched with the spindle without any clearance.
• 12 mm hardened spindle
• Eliminate the up and down movement deviation.
• 304 stainless steel spring
• No rust, high toughness.

Chuck clamping range: 0.6-6 mm/ 0.0236-0.2362 inch

The machine is more suitable for drilling wood, plastic, acrylic, hardwood, soft metals (such as aluminum, copper, etc.), it is recommended to drill metal holes with a depth of no more than 1 cm/0.39 inch.

When drilling metal, please add water or oil to cool and lubricate the drill bit, and multiple drilling operations may be required.

If the motor is hot during use, please let the table drill press machine rest for a while before working again.

High precision belt

795 High Power DC Brush Motor

Lifting locking screw and Stroke fixing screws

Quality materials
