Highlights- - Image Sensor : CIS x 2 - Light Source : LED
- - Optical Resolution : 600 dpi - Hardware Resolution : 600 x 600 dpi
- - Scan Modes : > Color: 48-bit Input; 24-bit Output > Grayscale: 16-bit Input; 8-bit Output > B/W: 1-bit
- - ADF Capacity : 20 Sheets (A4/ Letter, 70 g/㎡ or 18 Lbs) 6 Sheets (Business Card)
- - Scanning Speed : 20 ppm / 40 ipm (Grayscale, 200 dpi, A4) 20 ppm / 40 ipm (B&W, 200 dpi, A4) 20 ppm / 40 ipm (Color, 200 dpi, A4)
- - Scanning Area (W x L) : ADF: Maximum: 216 x 914.4 mm (8.5" x 36") Minimum: 12.7 x 12.7 mm (0.5" x 0.5") Cardslot: Maximum: 54.6 x 101.6 mm (2.15" x 4") Minimum: 12.7 x 12.7 mm (0.5" x 0.5")
- - Acceptable Paper Sizes (W x L) : > ADF: Maximum: 216 x 914.4 mm (8.5" x 36") Minimum: 50.8 x 50.8 mm (2" x 2") > Cardslot: Maximum: 54.6 x 101.6 mm (2.15" x 4") Minimum: 50.8 x 50.8 mm (2" x 2")
- - Acceptable Paper Weight (Thickness) : Paper: 50 g/㎡ to 120 g/㎡ Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810)
- - Daily Duty Scan ( Sheets ) : 1500 - Roller Lifetime (Scans) : 100000 - Pad Lifetime (Scans) : 20000
- - Action Button : PDF, BCR, Scan
- - Power Supply : AC adapter: 24 Vdc/ 0.75 A
- - Interface : USB 2.0

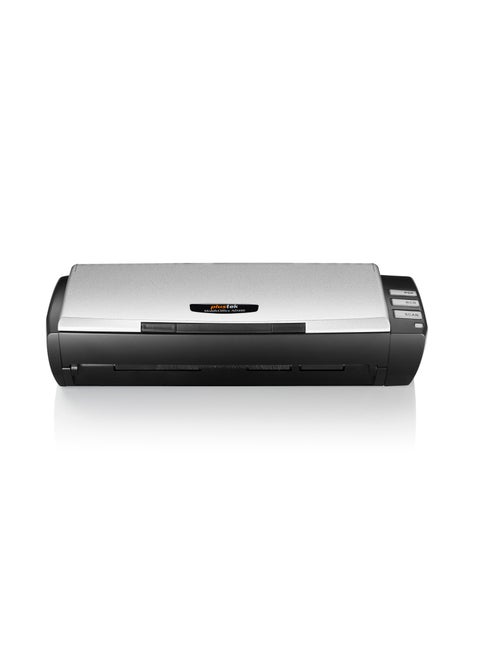

OverviewThe AD480 scanner is versatile and robust mobile scanner in its class, designed for home and small offices.
With double-sided scanning up to 20ipm and a 20-page automatic document feeder users can scan efficiently, in the office or at home. It has a strong robust design for handling up to 500 documents a day.
The AD480 scanner deliver speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications.
KEY FEATURES
• Ultra compact and robust for mobility
• High speed: 20ppm Grayscale/20ppm colour
• Productive mobile scanning with 20-sheet ADF
• Scans rigid cards including insurance cards, ID cards, drivers licenses etc
• Single-touch customizable button automates up to 3 frequent scanning jobs (e.g., Scan to Searchable PDF, Scan to file, email, network share, copy, etc.)
• Advanced image enhancement to automatically straighten and rotate pages, adjust brightness, detect color, and crop images minimizes file size and increase OCR accuracy.
• No warmup time. Instant On LED illumination.
• Small footprint – easily transportable and fits in crowed office
• 1500 page per day duty cycle
SOFTWARE
1- Plustek DocAction :
Button utility to simplify document scanning. DocAction enables you to specify your personalized scanning configuration settings and scan documents with the touch of a button. Scanned documents are automatically sent directly to Printer, Email, Folder or FTP. DocAction also enables you to scan directly to many imaging and document management applications. DocAction saves scanned documents in all common imaging formats including: JPEG, TIFF, and PDF.
2-NewSoft Presto! BizCard :
A comprehensive contact management system that helps you scan business cards, edit business cards, and then synchronize the contacts to various management applications. It is the ideal tool for staying in touch and organized no matter what languages your contact's business cards are printed in.
Built-in OCR
Plustek OCR*
Plustek OCR (Powered by ABBYY® FineReader®) helps to convert scanned paper documents, photos, and PDF files into editable formats.
With Plustek OCR, you can convert paper documents to editable formats, including Microsoft® Word®, and Excel®, edit resulting documents, and reuse their text and other content.
OS :
Window XP / Vista / 7 / 8 / 10 / 11
Linux compatibility is only available for system integrators.
Hardware Requirements :
2.0 GHz CPU processor or higher[1]
[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
4 GB RAM minimum (Recommended: 8 GB or more)
6 GB of hard-disk space for program installation
Display dimensions of 1024x768 or greater
Bundled Software :
Plustek DocAction
Plustek DocTWAIN
Presto! BizCard 6
Built-in OCR :
Plustek OCR
Powered by ABBYY® FineReader®)
