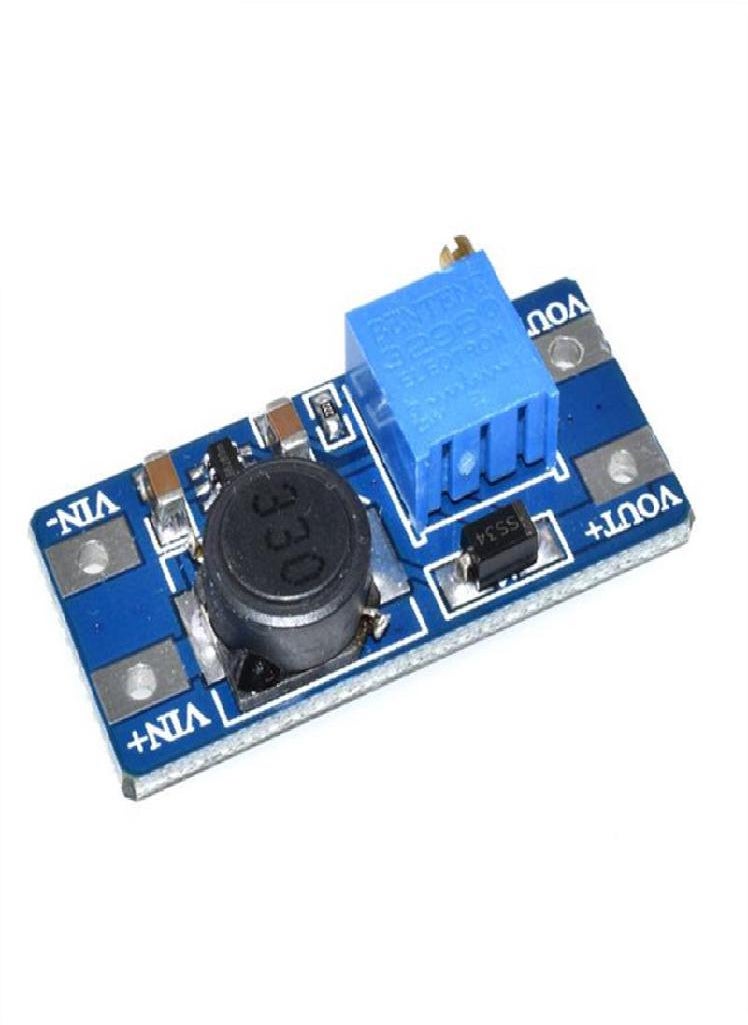

MT3608 DC-DC Adjustable Boost Module 2A Boost Plate Step Up Module with MICRO USB 2V-24V To 5V 9V 12V 28V

OverviewMT3608



Electrical Characteristics:

MT3608 2A Max DC-DC Step Up Power Module Booster Power Module



Features:

1. Maximum output current: 2A

2. Input voltage: 2 v - 24 v

3. Maximum output voltage:> 5V-28 v

4. Efficiency:> 93%



Note:

1. Input voltage should not exceed the maximum input voltage



2. Peak current output current does not exceed 2A



3.When the module output voltage can not be adjusted, always equal to the input voltage when the first 20 laps



counterclockwise rotary potentiometer or more, then you can use the module properly regulate the voltage.



Surgemode: potentiometer face chest, counterclockwise turn boost!









MT3608 Micro





2A Adjustable Booster Board DC-DC Step-up Module



Description:
The whole network smallest adjustable boost module can be easily installed in a variety of small equipment.
The module supports MicroUSB input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.
Wide input and output voltage, high conversion efficiency.
Maximum output current: 2A (recommended for use within 1A)
Input voltage: 2 v ~ 24 v
Maximum output voltage:> 28 v (recommended for use within 26V)
Efficiency:> 93%
Size: 30mm * 17mm * 14mm (L * W * H)
This module is a step-up module, the output voltage is greater than the input voltage.
Peak current output current does not exceed 2A.

Package Included:

1X 2A Booster Board
