Multifunctional 4D 16 Lines Laser Level 3° Self-leveling Machine USB Rechargeable Lithium Battery Leveling Tool with Vertical Horizontal Tilt Lines

stakeout and calibration, easy to operate, and versatile. Suitable for flooring tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry, wall stud layout and partition installation. You can have a try.



Note:

The laser output maker is located on the output hole.

Do not stare directly at the laser light.

Do not disassemble the instrument and perform internal repairs by yourself.

This instrument meets the laser radiation safety rating standard.



Specifications:

Name: Laser Level

Main material: plastics+metal

Type: green-UK Plug<

Laser class: class 2, output power ＜1mW

Line type: 4 * 360°

Wavelength: 532nm (Green)

Battery: 2 * rechargeable lithium battery, 3.7V, 2400mAh (included)

Horizontal/vertical: ±0.2mm/10m

Automatic leveling-range: ±3°

Working temperature: -5℃ to 50℃

Waterproof grade: IP54

Working distance: 25m

Level machine: 130 * 102 * 134mm / 5.12 * 4.02 * 5.28in

Tripod base size: 96 * 82 * 72mm / 3.78 * 3.23 * 2.83in

Wall-mounted bracket size: 161 * 71 * 89mm / 6.34 * 2.80 * 3.50in

Iron-board: 100 * 60 * 12mm / 3.94 * 2.36 * 1.47in

Lifting platform size: 127 * 90 * 30mm / 5.00 * 3.54 * 1.18in

Clip holder size: 63 * 25 * 24mm / 2.48 * 0.98 * 0.94in

Carrying bag size: 220 * 233 * 150mm / 8.66 * 9.17 * 5.91in

Item weight: 1485g / 3.27lb

Package size: 220 * 165 * 255mm / 8.66 * 6.50 * 10.04in

Package weight: 1649g / 3.64lb

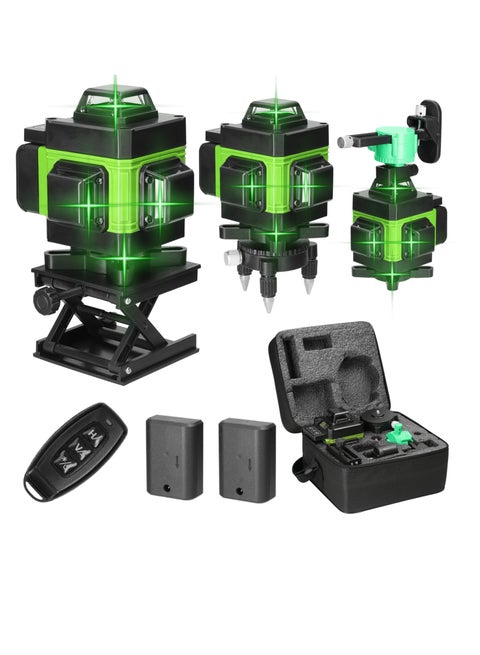

Packing List:

1 * Level Machine

2 * Battery

1 * Battery Recharger

1 * Tripod Base

1 * Wall-mounted Bracket

1 * Iron Board

1 * Lifting Platform

1 * Remote Controller

1 * 1/4inch to 5/8inch Thread Adapter

1 * Carrying Bag

1 * Guideline
