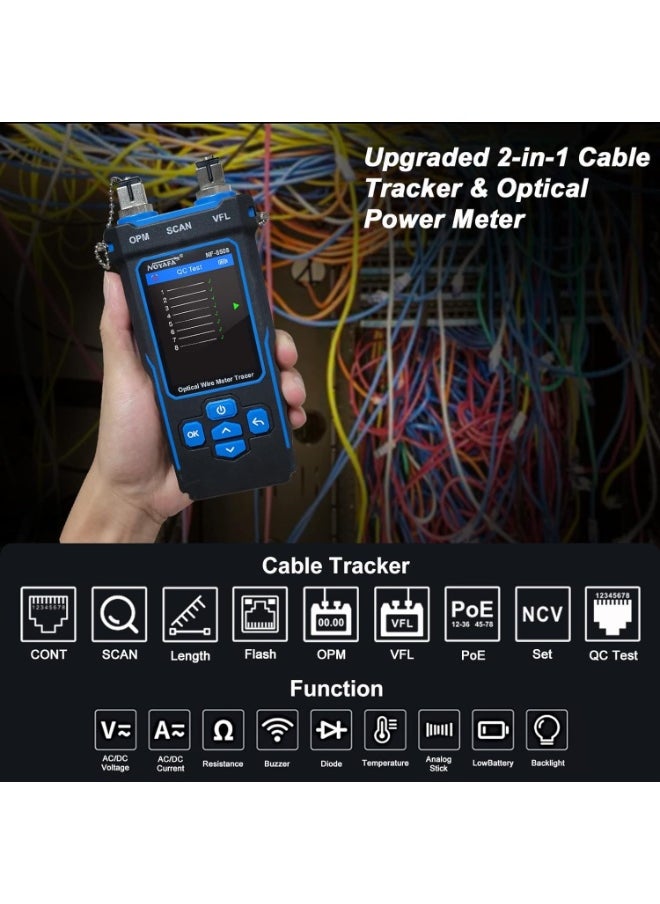

9 functions of network cable tester: NF-8508 (transmitter) continuity test, cable scan, port flicker, cable length measurement, PoE test, crystal head QC test, OPM (optical power meter), and VFL (visual fault location) NVC function.

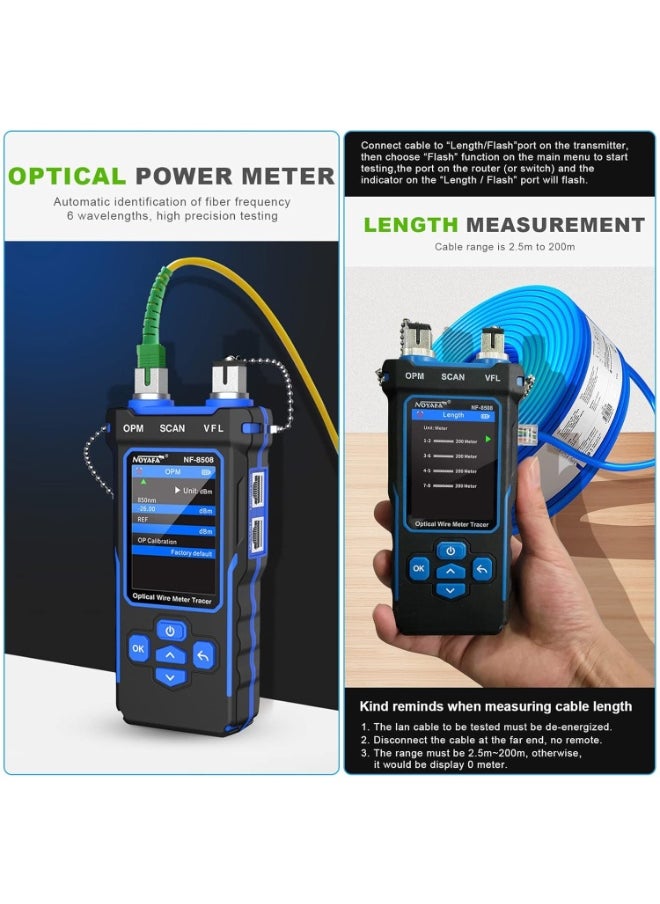

POE Test: 8-core automatic identification of the middle span/end span/power, automatic identification of standard and non-standard equipment, optical power meter: 850 / 1300 / 1310 / 1490 / 1550 / 1625nm, seven standard wavelength switch; unit switch for dBm, dB or MW, uw, nw; and REF switch, -70 ~ +10.
Cable Length Test: can measure the range of 200 meters, network cables, telephone lines, and BNC cables, with visual fault location function, detect and locate fiber breaks, poor connections, fiber bends or cracks, and other problems.
CAT5 CAT6 Cable Toner: (receiver) sensitivity adjustment, 300m null shielded network cable/non-null shielded network cable, NCV detection, lighting function, etc. Non-contact voltage detection: the receiver can be used to detect the AC voltage of household wires.

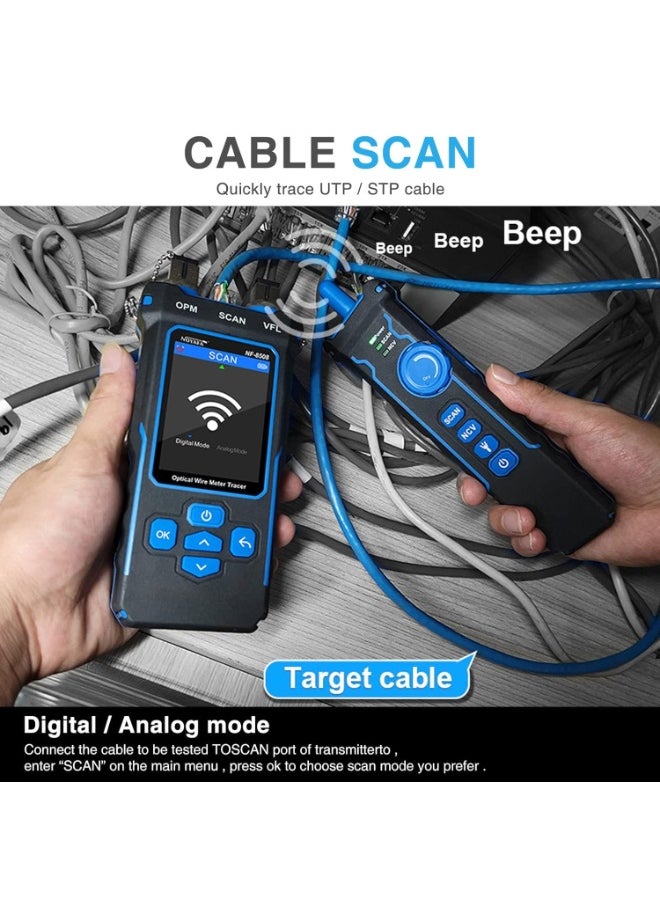

RJ45 RJ11 cable tester: cable tracking, wire locator and tests the faults of LAN cable tester, for telecommunications, computers, engineering wiring, networking, and home essential network tools.
Specifications
Product Weight
640 g
Product Length
29 cm
Product Height
6 cm
Product Width
20.6 cm
Model Name
NF-8508
