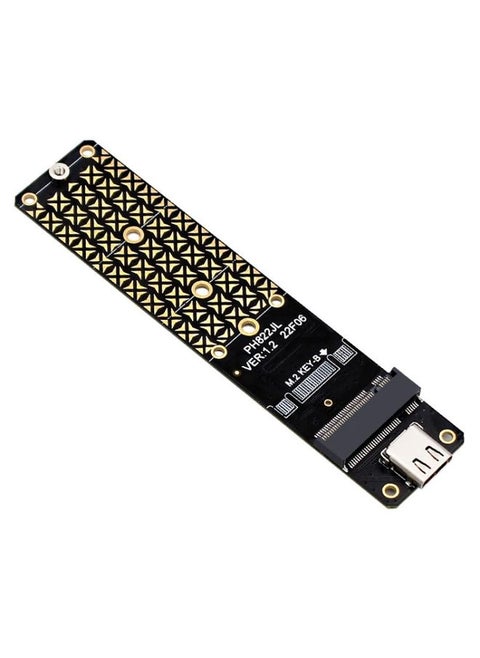

NGFF M.2 Bkey SATA Hard Disk SSD To USB3.1 Type-C / USB-C Expansion Card Conversion Board(Black)

Overview
1. NGFF SATA Riser Card Mobile Hard Disk Box
2. Large-area gold plating is used to expand the heat dissipation area, increase the heat dissipation effect, and improve the stability of the hard disk
3. 1GB file transfer in seconds
4. JMS580 master control, USB3.2 10G, SATA3 6Gb
5. Total bandwidth: USB3.2 10G SATA3 6G
6. Applicable slot: M.2 B KEY
7. Number of interfaces: M.2 SATA mobile hard disk adapter card
8. Product accessories: locking plate screw + screwdriver + mobile stud
9. Size: 98 x 22mm
10. Net weight: 7.6g
11. Gross weight: 13.6g
12. Note: The product does not include a demo SSD

2230/2242/2260 SSD turntable steps:
1. Insert the short-sized SSD at a 45-degree angle into the card slot
2. Snap the mobile stud into the end of the SSD
3. Press and hold the locked stud to rotate to the back of the product
4. Use a screwdriver to lock the locking disc screws into the holes from the back
5. Finish
