OS-214 Plus Barcode / Label Printer

Sorry! This product is not available.

Product Overview

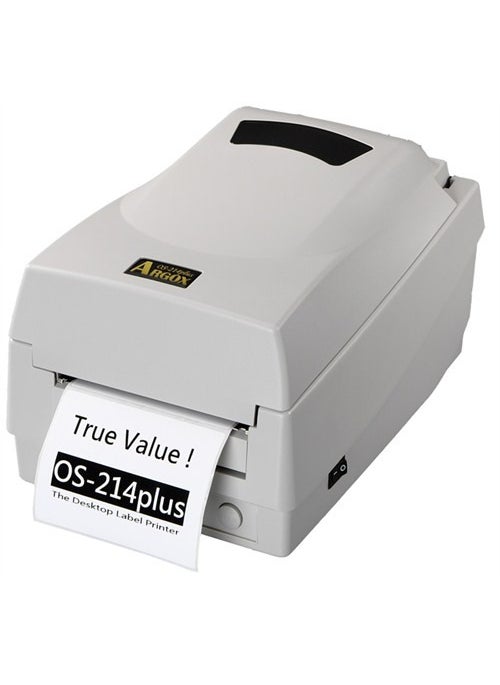

OverviewArgox OS-214 Plus Barcode / Label Printer

- Direct Thermal / Thermal Transfer Barcode Printer
- 203 DPI Print Resolution
- Max. 104 mm Print Width
- Max. 2540 mm Print Length
- Max. 76 mm / Second Print Speed
- 8 MB DRAM, 4 MB Flash Memory
- PPLA and PPLB Language Support
-

Transactional
Print method	Direct thermal (Ribbonless Printing), Thermal transfer (Ribbon Printing)
Print Resolution	203 DPI (8 dots/mm)
Print speed (Maximum)	76mm/second
Print length	13 ~ 1092mm
Print width	25mm ~ 104mm
Memory	8MB DRAM, 4MB Flash ROM
CPU	32-bit RISC processor
Transaction interfaces	1 button and 2 LEDs
Communication	LPT, Serial Port (RS-232C) and USB 2.0
Label detection sensor	Reflective (Left and fixed)
Print Angle	0, 90, 180, 270 degrees
Certificates	CE, FCC, UL, CUL, CCC, RoHS
Physical
Width	186 mm
Height	153 mm
Length	278 mm
Weight	2.0 kg
The safe	ABS Plastic
Electrical
Power input type	external power adapter
Power supply (Input)	100V~240V±10%, 1.5A, 50~60Hz
Power supply (Output)	24VDC, 2.4A
Environmental
Operating environment temperature	4 °C ~ 38 °C
Storage temperature	-20 °C ~ 50 °C
Storage environment humidity	0% ~ 90%
Tag
Type	Interleaved, Continuous form, black mark (separated by black line)
Width	25.4mm ~ 108mm
Thickness	0.0635 ~ 0.254mm
Skull inner diameter	25.4 mm
Label outer diameter	109mm (Max.)
Ribbon
Type	Wax , Wax/Resin, Resin
Winding direction	outer winding
Length	91 meters (Max.)
Width	25.4mm ~ 110mm
Skull inner diameter	13 mm
Ribbon outer diameter	37 mm
Software
Windows drivers	Windows 2000/XP/2003/VISTA/Windows 7
Label design program	Argobar Lite/ Pro or Bartender UltraLite (Free)
Utilities	Printer Utility and Font Utility
Supported barcode writing languages	PPLA, PPLB
Supported graphic formats	PPLA:PCX, BMP, IMG, HEX, GDI PPLB:
Supported Barcode Types
1D	PPLA:Code 39, Code 93,Code 128/subset A/B/C, Codabar, Interleaved 2 of 5, UPC A/E/2/5 add-on, EAN-13/8, UCC/EAN 128, Postnet, Plessey, Interleaved 2 of 5, Interleaved 2 of 5 with a modulo 10 checksum, Interleaved 2 of 5 with a modulo 10 checksum and shipping bearer bars , Code 128, UCC/EAN Code 128 Random Weight, HBIC, Telepen , FIM PPLB:
2D	PPLA:PDF-417, MaxiCode, Data Matrix (ECC200 only), QR Code, Composite codes PPLB:
Optional Options
Optional Options	cutter unit Label stripping unit RTC (Real Time Clock) card Font card (for Chinese, Korean and Japanese languages) external label source unit Argokee keyboard Argonet Printserver

RS-232C, LPT and USB port optionsPCX, Binary raster, GDICode 39, Code 93, Code 128/ subset A,B,C, Codabar, Interleaved 2 of 5, Interleaved 2 of 5 with check sum digit, Interleaved 2 of 5 with human readable check digit, Matrix 2 of 5, UPC A/ E 2 and 5 add-on, EAN-8/13, Code 128UCC, UCC/EAN, PostnetMaxiCode, PDF-417, QR Code, Composite codes
