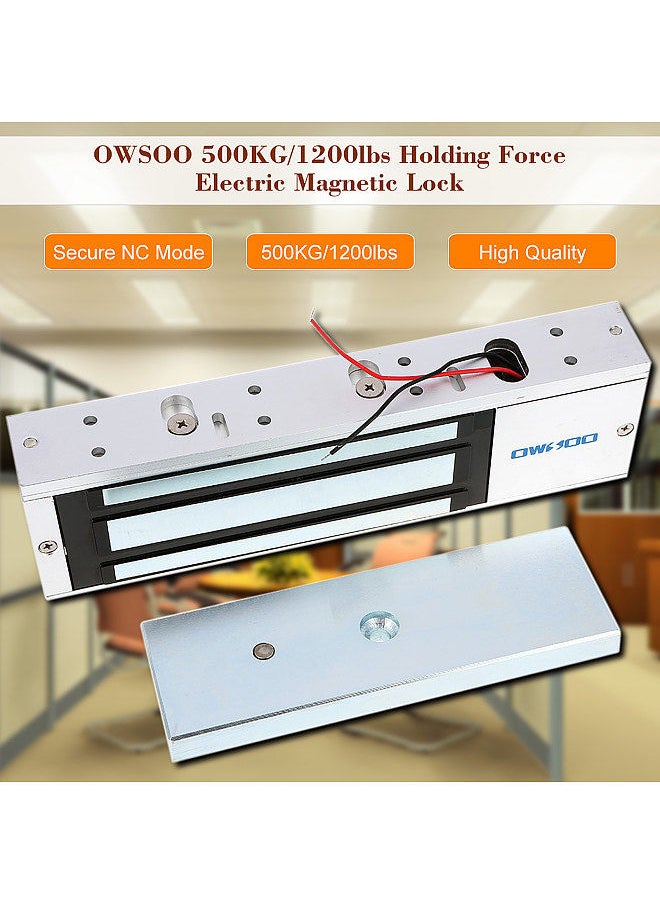

OWSOO 500KG 1200lbs Holding Force Electric Magnetic Lock For Door Access Control System Electromagnet Fail-Safe NC Mode

OverviewOverview:

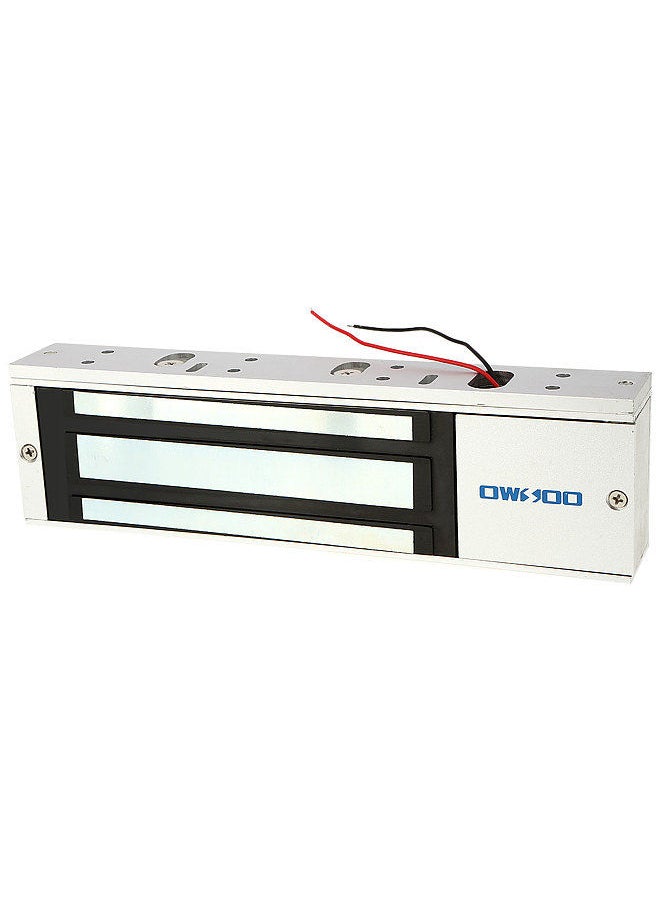

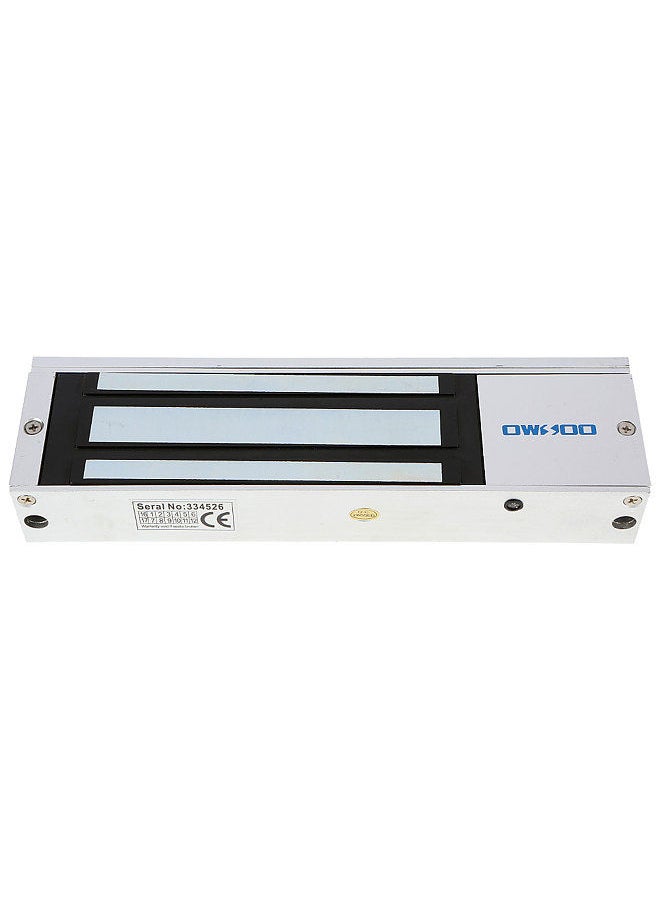

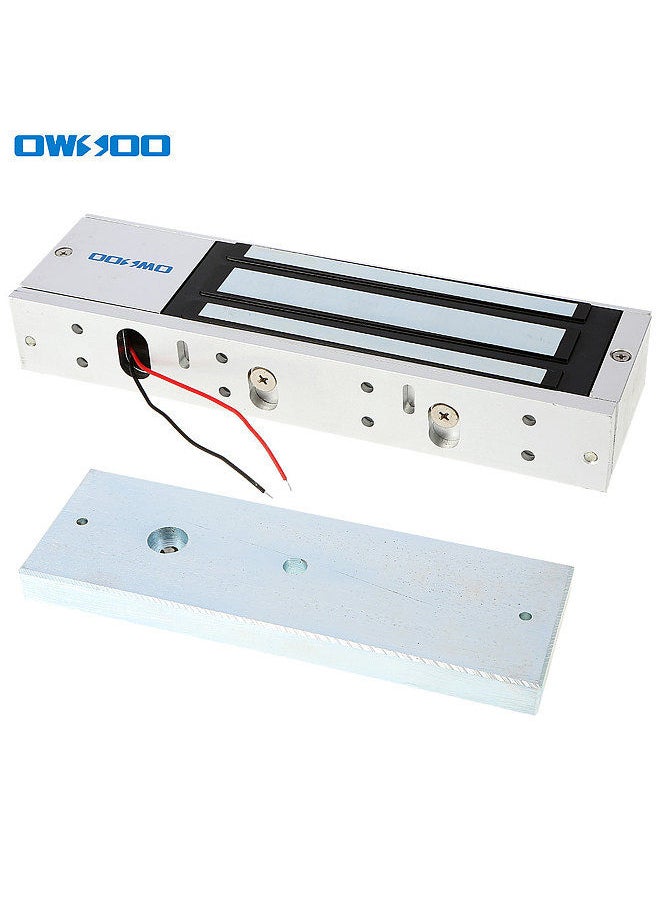

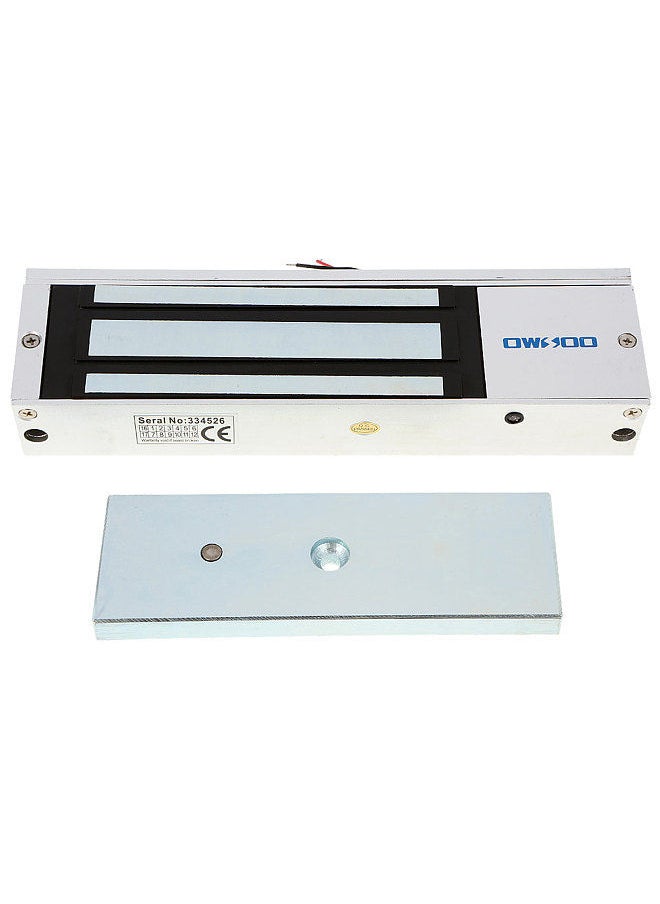

This item is magnetic lock that consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. When power off, the door will open. It is suitable for wooden door, glass door, metal door, fire-proof door,etc.


Features:
*500KG/1200lbs magnetic lock for door access control system
*Secure NC mode: unlocked when power off, locked when power on
*Power supply: DC12V; holding force: 500KG/1200lbs
*High quality and durable in performance
*Suitable for: wooden door, glass door, metal door, fire-proof door


Specifications:
Locking Mode: NC
Working Voltage:DC 12V
Material: Aluminum alloy shell + iron plate
Holding Force: 500KG/1200lbs
Lock Size: Approx. 26.7*7.8*4cm/8.5*6.2*1in
Plate Size: Approx. 18.5*6*1cm/7.3*2.4*2.6in


Package Information:
Package Size: Approx. 28*8.1*7.5cm/11*3.2*3in
Package Weight: Approx. 4300g/9.5lb

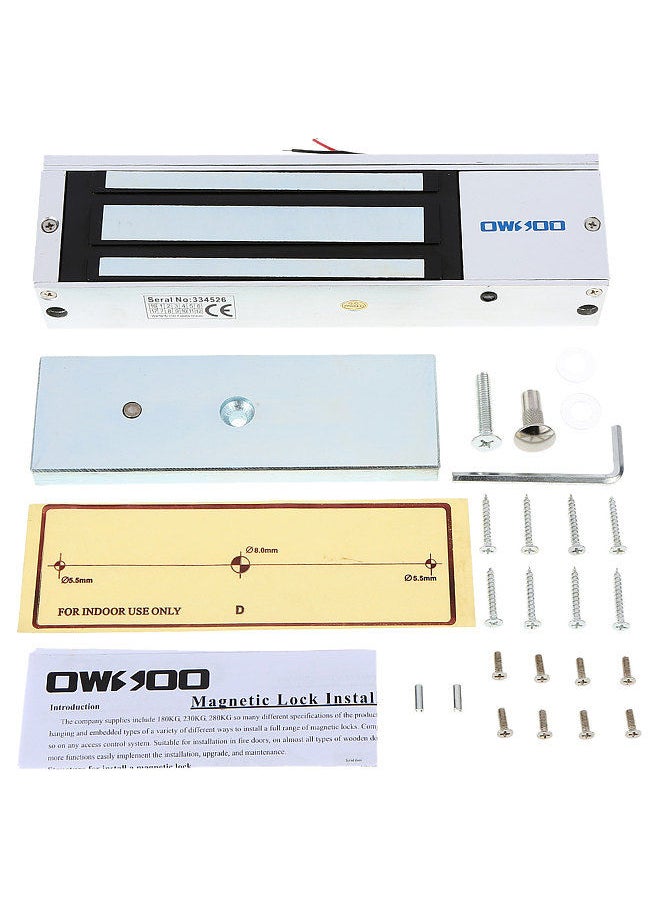

Package List:
1* Magnetic Door Lock
1* Package of Mounting Screws
1* User Manual
