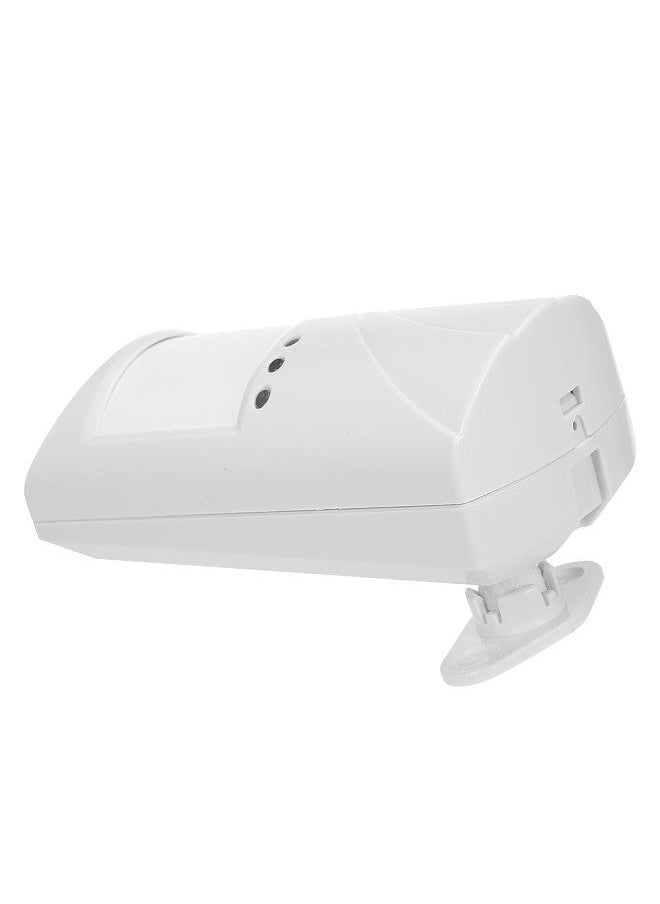

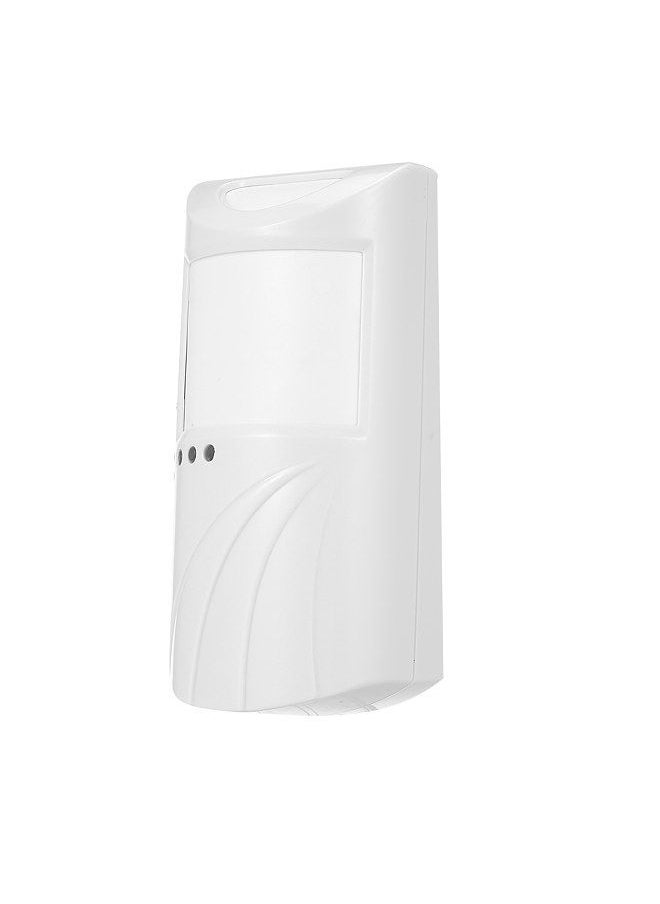

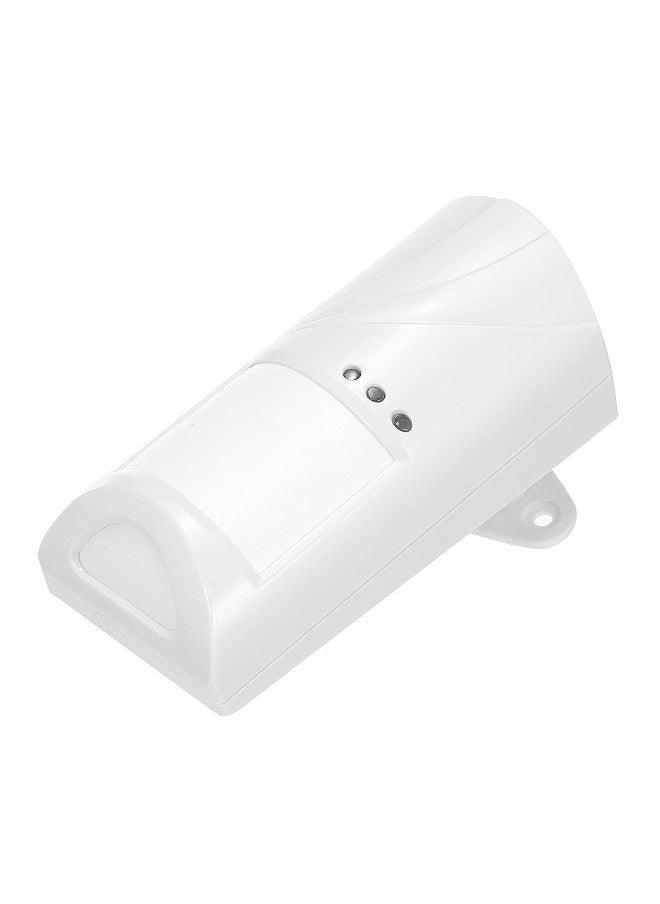

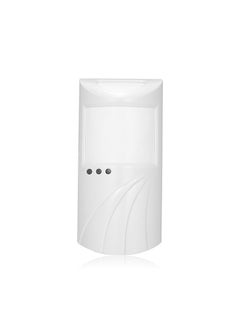

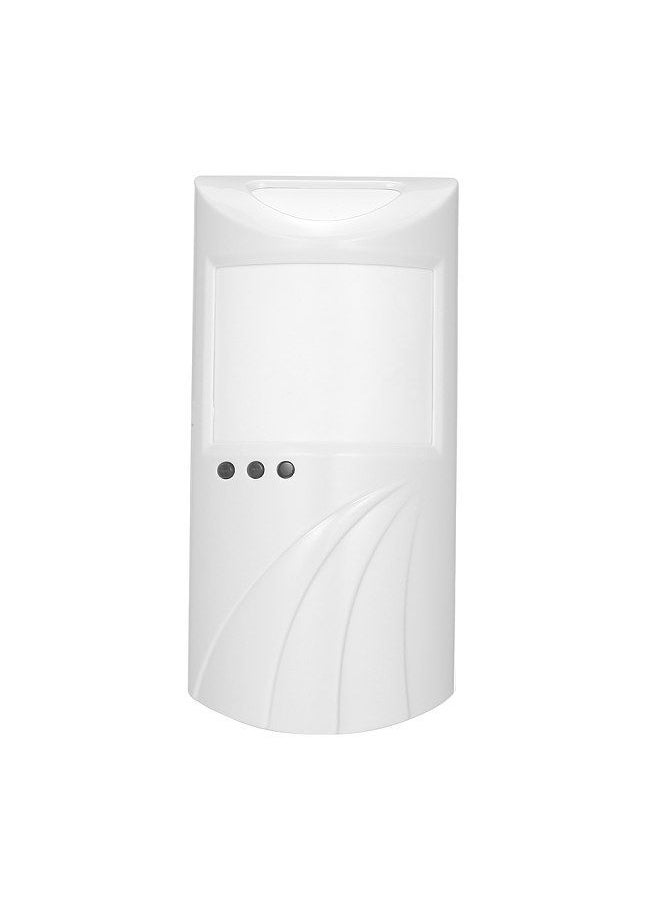

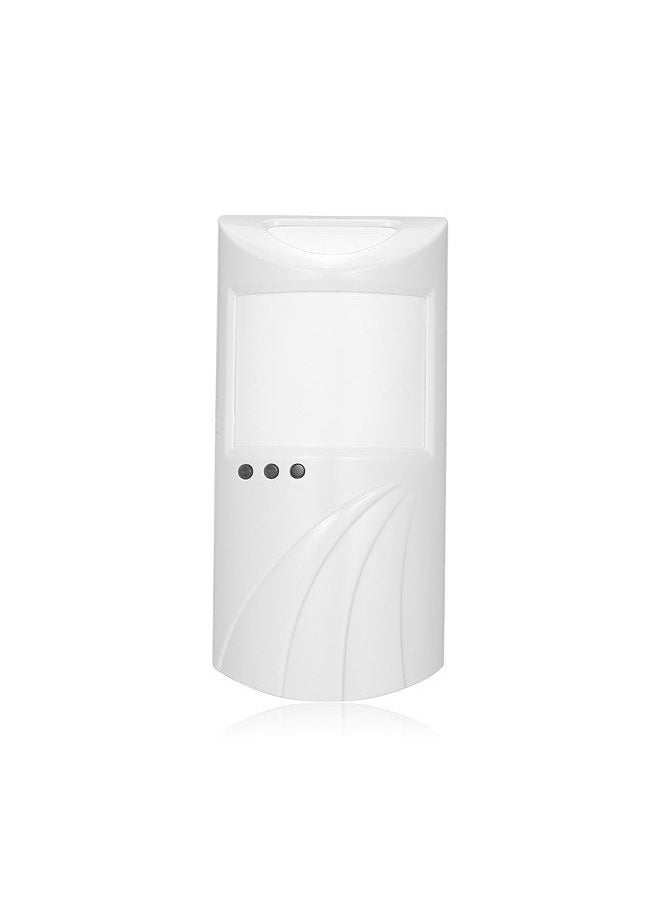

Pet Immune Wired PIR Motion Sensor Passive Infrared Detector Double PIR Infrared Detector Dual PIR Sensor For Home Burglar Security Alarm System

OverviewNote: Do not mount the unit in direct sunlight or near heat sources.
Overview:
This product is a wired anti-pet passive infrared detector, exquisite design, easy installation. Fit for the locations of the balcony, window, door, corridors, outdoor, etc. Imported high-end infrared sensor, SMT chip technology, anti-EMI & anti-RFI design, temperature compensation, pulse count, LED switch, etc. selectable functions, can be integrated with wired alarm host.

Features:
*MCU technology to prevent all kinds of false alarms. Sensitivity can be adjusted to meet different environmental needs.
*Dual PIR sensor with digital intelligent logic analysis technology and anti-pet recognition technology, is under 20kg pet immune, prevent false alarm when pet passing.

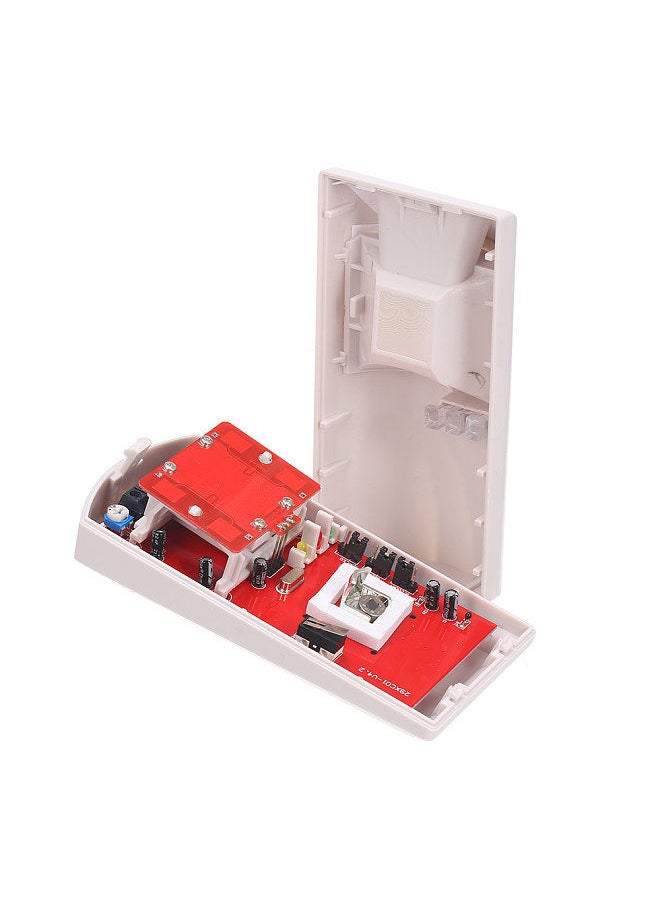

*SMT chip, super anti-visible light, anti-EMI & anti-RFI design. Anti-tamper alarm function to enhance anti-damage.
*The anti-pet PIR sensor is a wide angle horizon: 110°; vertical: 60°, 12mX12m with high catch performance and false alarm immunity.
*Automatic temperature compensation, adjustable pulse count. Convenient wiring. LED ON/OFF optional, better concealment.

Specifications:
Working Voltage: 9V-16V
Alarm Current: ≤ 30mA
Pet Immunity: Immune to animal weighting up to 20kg
Wide Detector Angle: Horizon: 110°; Vertical: 60°
Detection Distance: 12m (25℃)
Self-test time: ≤60s
Installation Way: Wall Hanging
Installation Height: 1.8m-2.3 m Adjustable
Operating temperature: -10°C to 50°C
Item Size: Approx. 130 * 65 * 51mm
Item Weight: Approx. 108g
Package Size: Approach. 13.2*6.8*5.5cm / 5.2*2.7*2.2in
Package Weight: Approach. 140g / 4.9oz

Package List:
1 * Wired Outdoor Anti-pet PIR sensor
1 * Bracket for PIR Sensor
1 * Set of Mounting Screws
1 * User Manual
