Portable ECG EKG Machine

OverviewDescription:

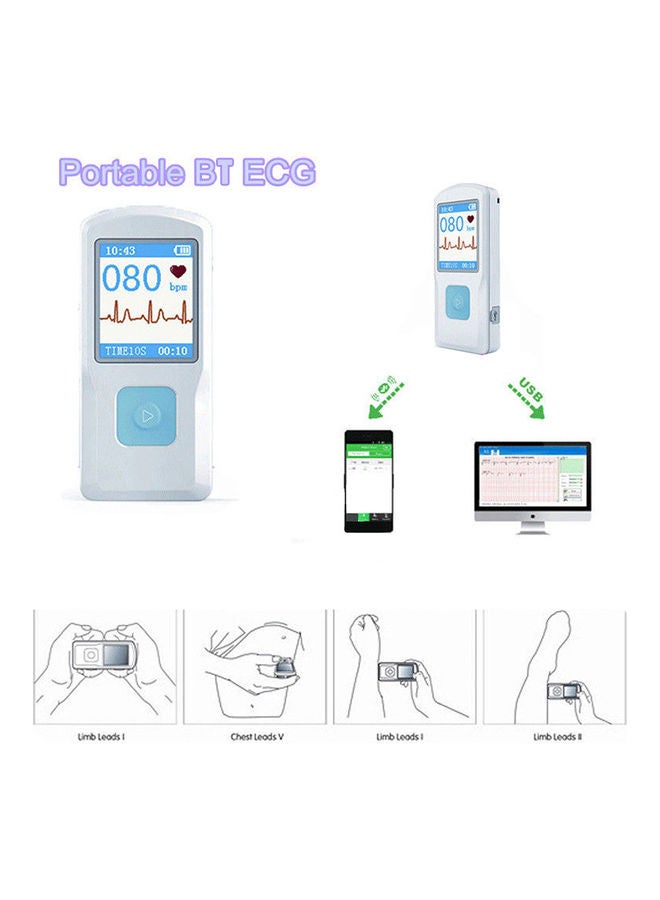

PM10 Portable ECG Monitor is a device for checking ECG,which is applicable for family and individual user, it is a good helper to early prevent from cardiovascular diseases and reduce risks. Intelligent design, achieves remote health management by using with mobile application, it can automatically start measurement, store ECG, upload data, download health conclusion and obtain doctor advice at the first moment.

Features：

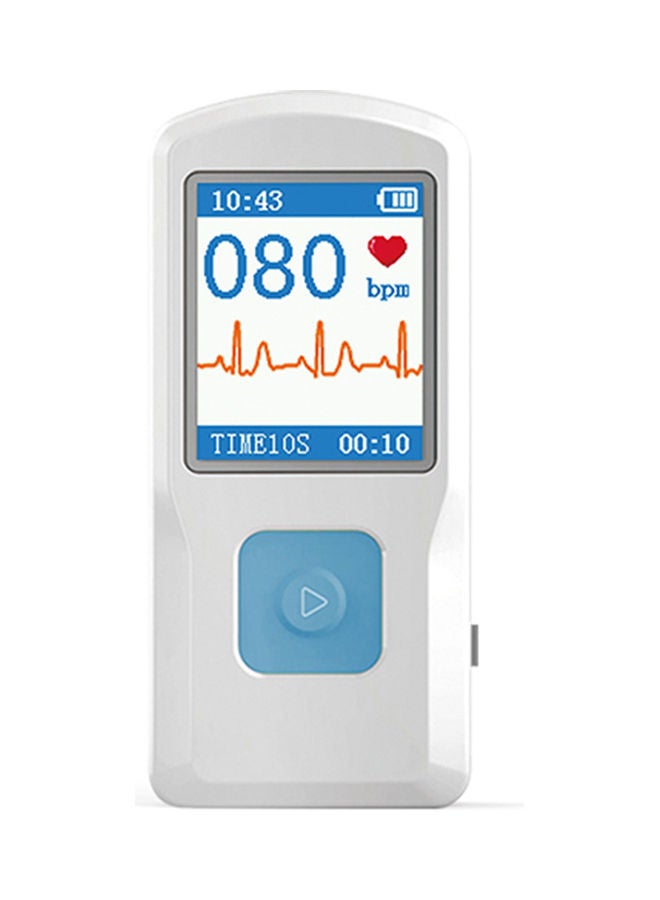

1.77" color TFT-LCD. BT transmission.
Quickly to check ECG once finger touching, convenient to operate.
Historical data can be printed at any time, convenient to diagnose.
Accurate conclusion can be obtained immediately after measuring.
Built-in rechargeable lithium battery can continuously record for up to 500 cases in full charging.
ECG data can be saved to CLOUD Platform permanently, convenient to check and analyze.

Performance:
Calibration voltage: 1mV±5%
Standard sensitivity：10mm/mV±5%
Amplitude frequency characteristic：standard: 10Hz, 1Hz～20Hz；(+0.4dB，-3dB)
Noise level：≤30μV
CMRR：≥60dB
Scanning speed：25mm/s±5%
Sampling rate：250 dots/s
HR measurement range：30bpm～300bpm，error：±1bpm or 1%
Type of protection against electric shock: Internal power device
Degree of protection against electric shock: Type BF applied part
Degree of waterproof: IP220

Specifications:
Material: ABS
Color: White
Package weight: 90g
Package size: 11.5*7*4cm/4.52*2.75*1.57inch

Note:
Item color may show sight aberration due to different shooting light and monitor display.

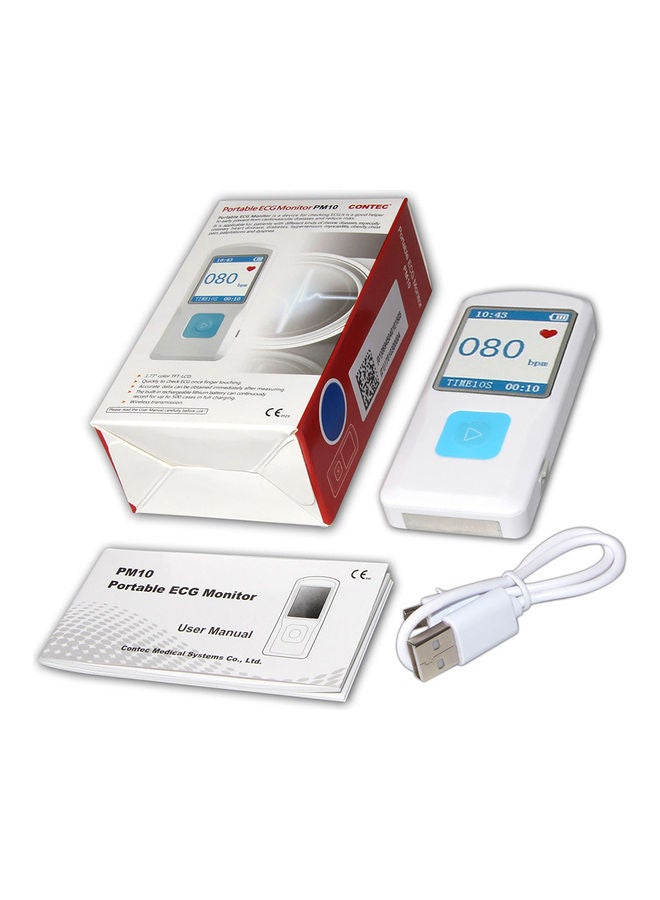

Package list:
1* EKG Machine
1*Power Cord
1*User Manual
