Power Meter Energy Monitor lug, Watt Meter LCD Display Electricity Usage Monitor 11 Monitoring Modes, Watt Volt Amp Power Consumption Meter Overload Warning Plug for Home Appliances

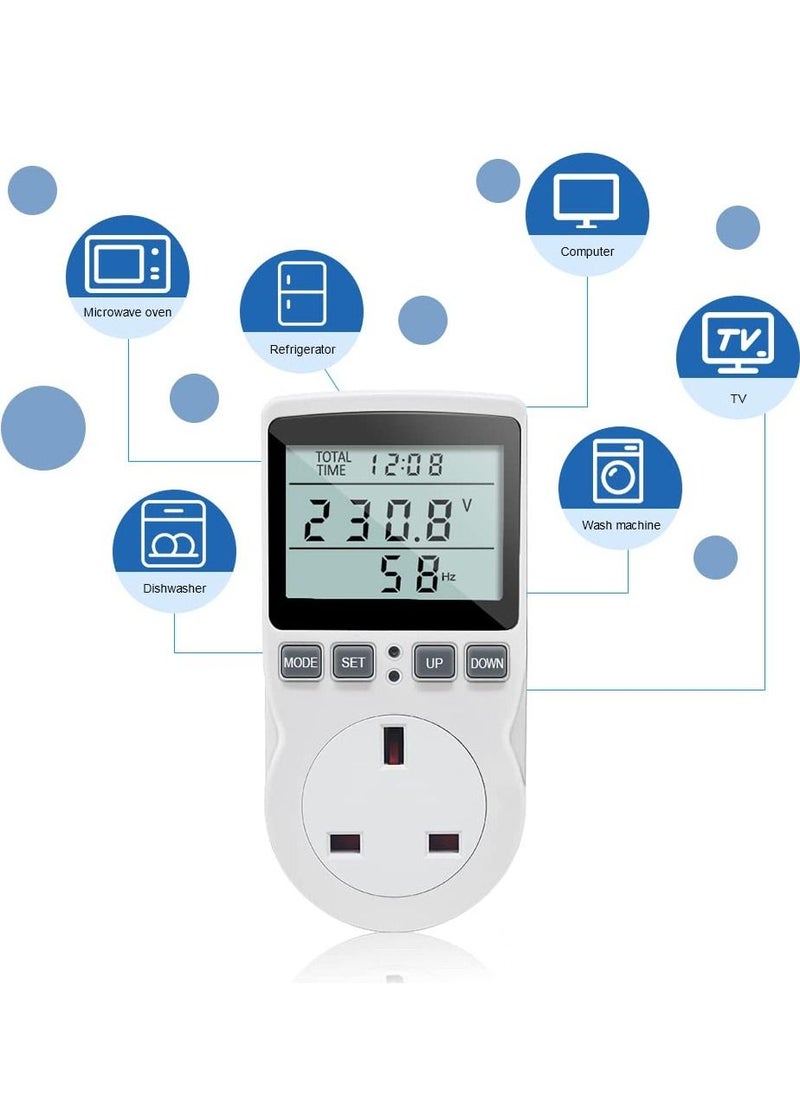

Comprehensive monitoring of your electrical devices

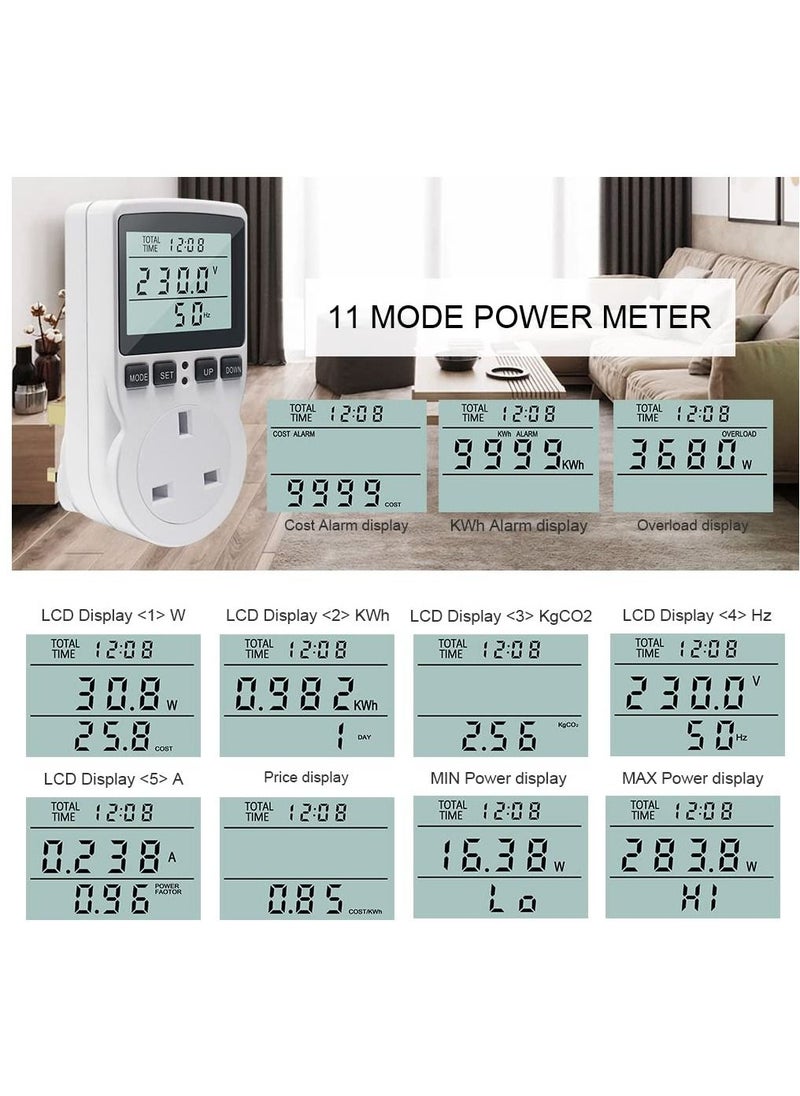

This energy meter supports multiple data displays with 11 monitoring modes including time, power, cost, cumulative power consumption, current, voltage, frequency, power factor, minimum power, maximum power, cost, carbon emissions, and unit electricity bill.

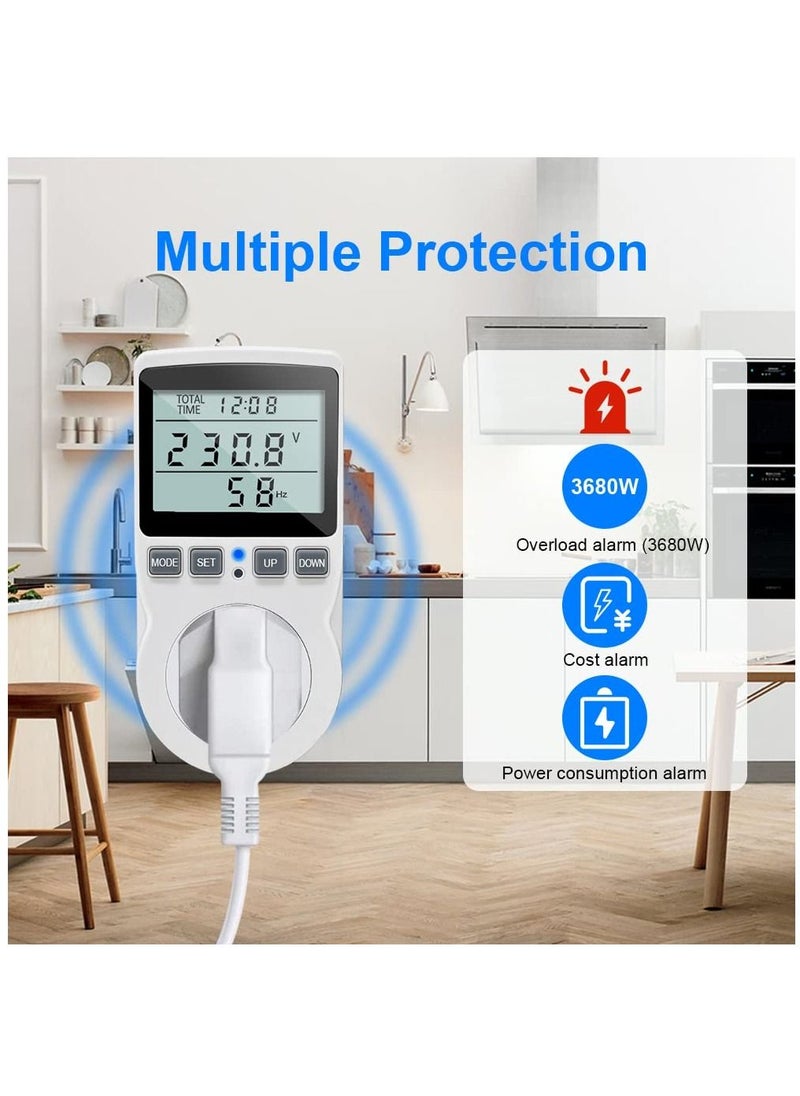

Multiple protection

When the power, power consumption, or energy cost reaches the set value, the words "OVERLOAD", "KWh ALARM" or "COST ALARM" will be displayed on the screen and the LED indicator will flash to protect the device from damage.

ABS material

electric meter socket is made of ABS material, which is tough, hard, and high temperature resistant. UKCA CE Certified.

Energy saving

Use the power meter on your electronic device to learn more about device consumption. It can avoid excessive power consumption, save costs and prolong the life of electrical appliances.

Notes:

The factory will randomly check and test some meters before leaving the factory. This causes some meters to store some test data. Please press the RESET button to reset the meter before use.

When the power of the connected device exceeds 2W, the meter will start timing. Before the measurement time exceeds one hour, the two digits on the left represent minutes and the two digits on the right represent seconds, after the measurement time exceeds one hour, the two digits on the left represent the hour, and the two digits on the right represent minutes. This is repeated every 24 hours.

Delete measurement data

If you need to clear the measurement data or measure different household appliances, you can press and hold the DOWN button for 5 seconds until the display flashes, and then press the MODE button to clear the measurement data only and keep the measurement settings.
