Professional CCTV Testing Tool 5 Inch TFT LCD 5MP AHD TVI 4MP 3MP CVI CVBS CCTV Camera Tester Monitor Support PTZ UTP

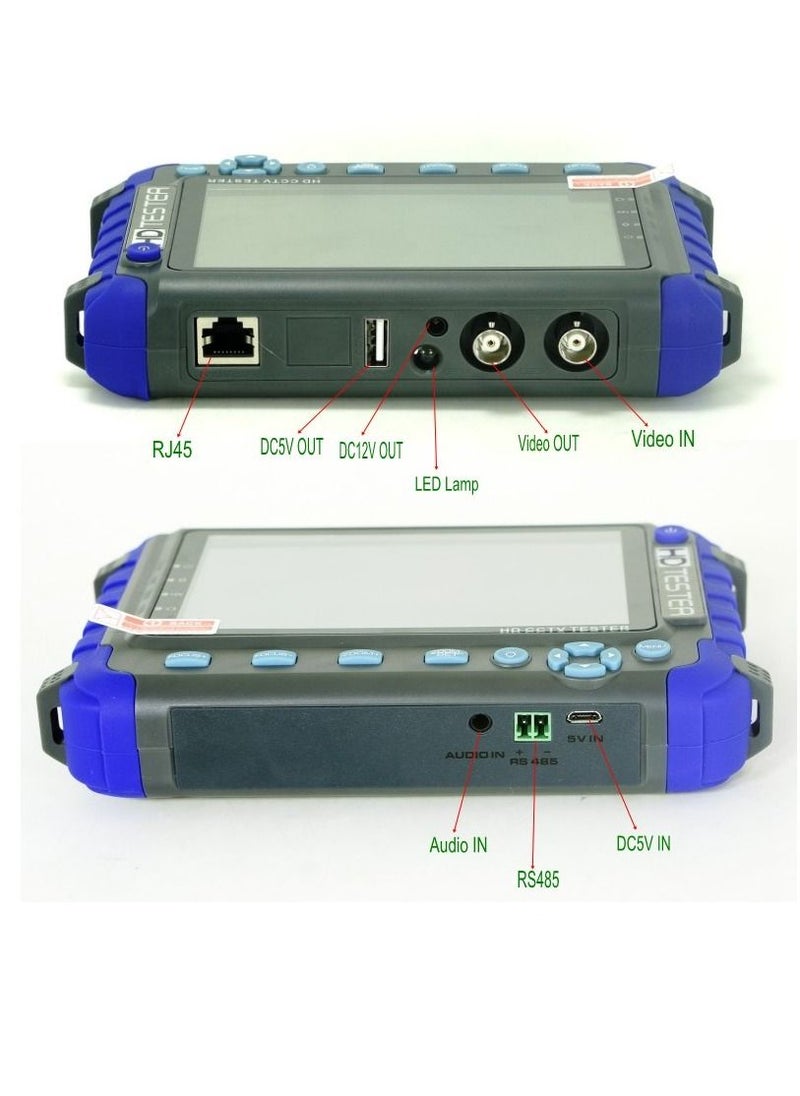

Professional CCTV testing tool IV8C 5 Inch TFT LCD 5MP AHD TVI 4MP CVI CVBS CCTV Camera Tester Monitor support PTZ UTP Cable Test note :IV8C not support VGA/HDMI input IV8W support CVBS + AHD (5MP) + TVI (5MP) + CVI (4MP) Camera VideoTest: (1) AHD Signal test: 5MP 4MP 3MP 1080P 720P; (2) TVI Signal test: 5MP 4MP 3MP 1080P 720P; (3) CVI Signal test: 4MP 3MP 1080P 720P; Product overview: The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc. Main Features: * Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, * Support PAL/NTSC standard video signal. CVBS testing. * PTZ controller Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size. * Image generator Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section * DC12V 1A output power Power the camera with DC12V (1A) power from the tester. * Audio testing Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable. * Improvement cable test UTP cable, telephone cable etc order and connectivity test, can save testing report * TVI camera test HD TVI video surveillance testing, support 1MP 2MP 3MP 4MP 5MP. When TVI signal input, the tester will display HD TVI camera image. * CVI camera test HD CVI video surveillance testing, support 1MP 2MP 3MP 4MP. When CVI signal input, the tester will display HD CVI camera image. * AHD camera test HD video surveillance testing, support 1MP 2MP 3MP 4MP 5MP. When AHD signal input, the tester will display the AHD camera image. * LED lamp It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate. Specifications: Model IV8W LCD screen 5.0 inch TFT-LCD, 800(RGB)x 480 resolution Video test NTSC/PAL (Auto adapt) LCD adjustment Brightness, Contrast, Saturation adjustable Video IN/OUT 1 channel BNC Input & 1 channel BNC Output VGA/HDMI input NOT Support PTZ Controller Support RS485 PTZ Protocol Compatible with protocols PELCO-D/P, Baud Rate Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps Color bar generator Support both PAL / NTSC format’s standard color bar output (Red, Green, Blue, White, Black, Grey) and testing image output UTP Cable Test Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box. DC12V power output Output DC12V1A power for camera Audio input test 1 channel audio signal input Coaxial HD test TVI test 1 channel TVI input(BNC interface), support 1MP 2MP 3MP 4MP 5MP CVI Test 1 channel TVI input(BNC interface), support 1MP 2MP 3MP 4MP AHD Test 1 channel AHD input (BNC interface), support AHD 2.0 version, 1MP 2MP 3MP 4MP 5MP POWER Power Adapter DC 5V(1.5A) Battery Built-in 18650 2600mA battery X 2, After charging 3-4 hour, working time lasts 11 hours General Language English and Chinese optional Working Humidity 30%-90% Dimension 194mm x 112mm x 48mm / 540g Packing list: HD coaxial tester Adapter DC5V 1A(with USB cable) International Standard 18650 2600ma battery BNC cable RS485 connector Power output conversion cable Audio cable Lanyard Tool bag Instruction Manual
