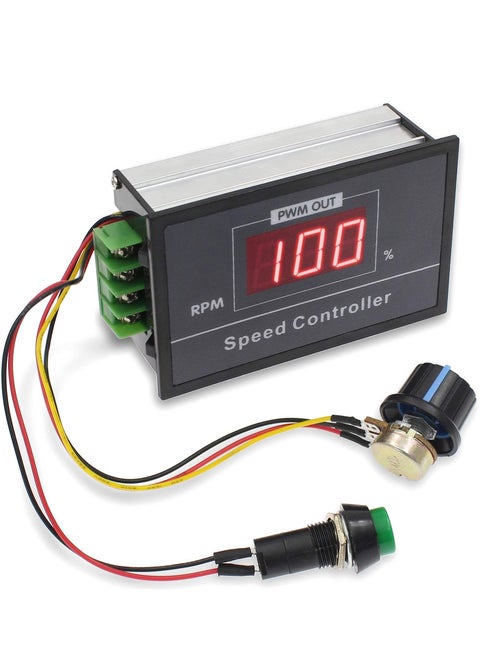

PWM DC Motor Speed Controller DC6-60V 6V/ 9V/ 12V/ 18V/ 24V/ 36V/ 48V/ 30A, PWM DC Motor Stepless Speed Regulation Start Stop Switch with Digital Display

PWM DC motor governor DC6-60V 6V 9V 12V 18V 24V 36V 48V 30A,
PWM DC motor step-less speed regulation start-stop switch with digital
display


Specification:

Dimensions: 3.74" x 2.36" x 1.33"/95 x 60 x 34mm (L*W*H)
Output Voltage: Linear Load
Input voltage range: DC 6V-60V
Output current: 0A-30A
Continuous current: 20A
Speed range: 0% to 100%
PWM frequency: 15KHz
Adjustment method: potentiometer
Regulation Type: Regulation Current
Connection Type: Screw Terminals
Premium Material: Premium Circuit Board


Package contains

1 x PWM DC Motor Speed Controller Switch with Digital Display


Notice:

1. The digital display is not the percentage of the actual speed of the motor,
but the percentage of the actual speed to the maximum speed

2. The input voltage must be divided into positive and negative poles

3. The input voltage must be equal to the rated voltage of the motor in the
range of 6-60V
