Q6 Removable 6 Sections 18650 Battery Box Charger Case, Style: Ordinary(Red)

Overview
Ordinary version:
1. Output power: 12W
2. Single USB output: 5V/0.1-2.1A
3. Dual USB output: 5V/0.1-2.4A
4. Micro USB input: 5V/2A
5. Type-C/USB-C port input: 5V/2A

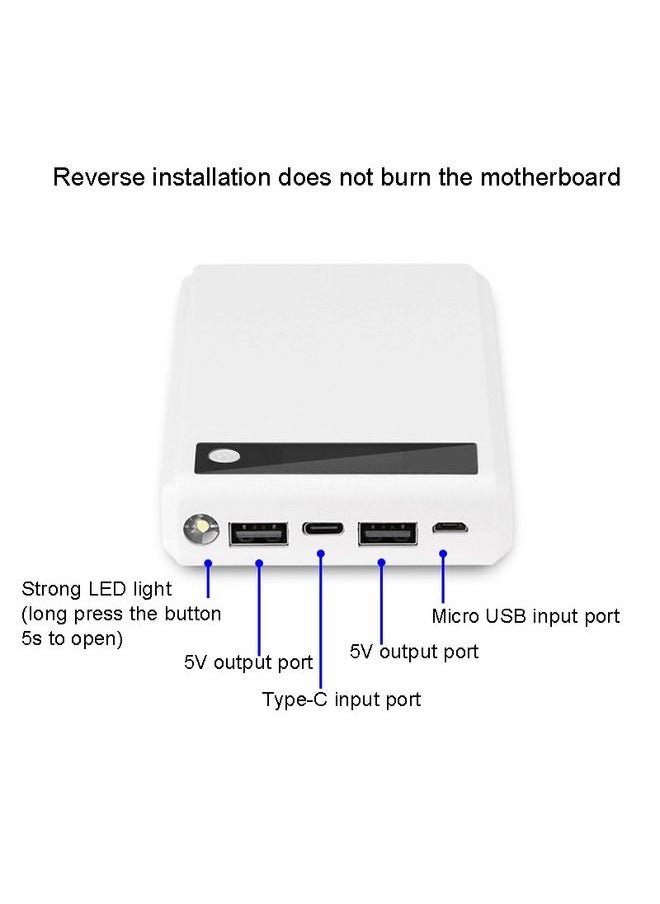

6. Other features: long press or double-click the button to turn on the LED light, installed backwards not to burn the motherboard

Flash charging / fast charging version:
1. The first time you put the battery, you have to charge the rechargeable battery to activate the output
2. Output power: 22.5W
3. Power: 25W
4. OUT 1 output: 5V/3.7A; 9V/2.5A; 12V/1.87A (support 5V side charging and discharge)
5. OUT 2 output: 5V/3.7A, 3.3-5.5V/4.5A (VOOC/SCP), 9V/2.5A, 12V/1.87A (fast charging port supports 5V side charging and discharging, fast charging mode without handshake protocol only 5V output)
6. Micro USB port input: 5V/3A, 9V/2A, 12V/1.5A
7. Type-C/USB-C output: 5V/3.7A, 9V/2.22A, 3.3-11V/2A (PPS), 12V/1.67A (output only if PD protocol is supported)
8. Type-C/USB-C input: 5V/3A, 9V/2A, 12V/1.5A
9. Other features: double-click the button to turn on the LED lights, installed backwards not to burn the motherboard
10. Fast charging specifications: need stable quality and data transfer charging cable, no handshake protocol only 5V output, fast charging protocol automatically adjusts the current and voltage to the applicable state after successful matching

Multiple protection, high reliability:
1. Built-in input over-voltage, under-voltage protection
2. Integrated output overcurrent, overvoltage, short-circuit protection
3. Built-in battery overcharge, overdischarge and overcurrent protection
4. Built-in IC over-temperature protection
5. Integrated charge/discharge battery temperature NTC protection
6. ESD 4KV, input (including CC pins) withstand voltage 25V

1. Battery requirements: flat-head unprotected 18650 battery (65mm long), internal resistance of 60 milliohms or less, more than 1C discharge, do not use the dismantled battery placed for a long time, used more times, the use of dismantled batteries will affect the experience

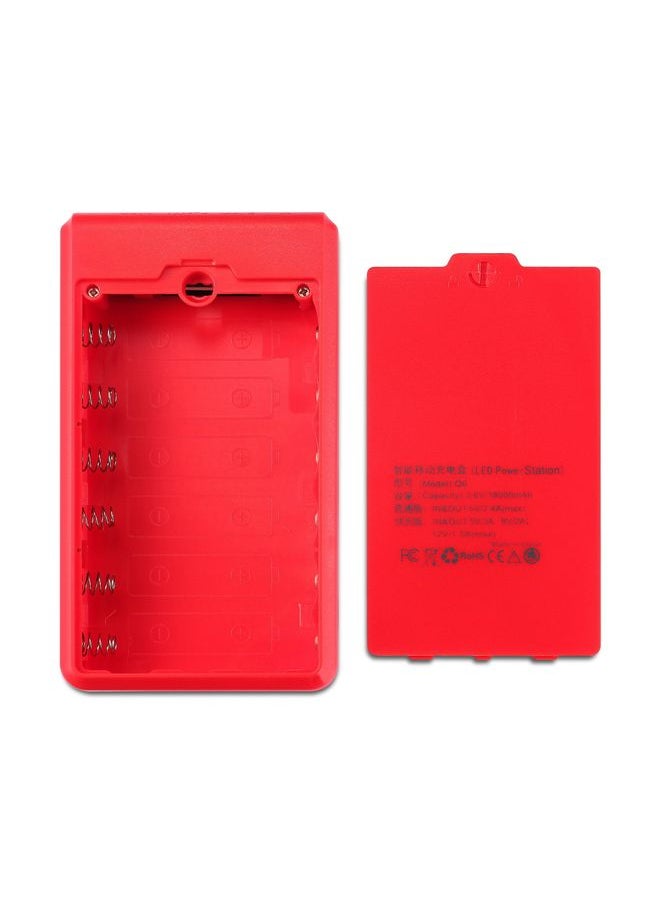

2. Can be repeatedly put into 6 18650 batteries, easy and convenient to replace the battery
3. Rotate to the left (clockwise) for the lock, close the cover must be locked or the cover will fall out; replace the battery to the right (counterclockwise) to unlock, take out the cover, you can replace the battery, simple and convenient
4. Note: installed in reverse does not burn the motherboard, but do not a positive and negative, broken skin battery to insulate, otherwise it will cause the battery short circuit burn spring (shipping does not include the battery)

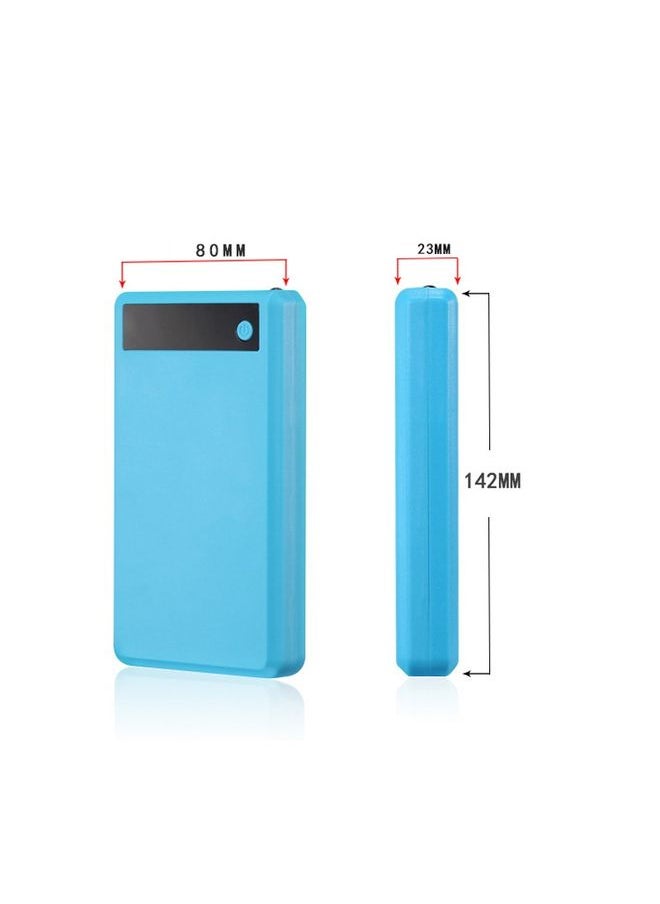

5. Size: about 14.2 x 8 x 2.3cm
