Highlights- 【Versatile Testing Capabilities】: This product can drive and test various parts, including ignition coils, fuel injectors, solenoid valves, fuel metering valves, idle stepping motors, instrument stepping motors.
- 【High Precise Simulation】: The Hall signal with adjustable output frequency, amplitude, and duty ratio can accurately simulate various duty cycle sensors such as air conditioning pressure sensors and air flowmeters.
- 【Enhanced Safety Features】: The powersupply voltage ranges from 12 to 24V, with reverse connection and overcurrent protections to ensure the safety of the equipment during use.
- 【Wide Adjustment Ranges】: The electromagnetic coil driving current ranges from 0 to 3.5A, the output frequency ranges from 1HZ to 100KHZ, the duty cycle adjustment is 1%-100%, and the adjustable voltage is 1.25V-11.5V.
- 【User-Friendly】: Easy to operate, all parameters are adjustable, making it easy to operate even for those without professional knowledge.

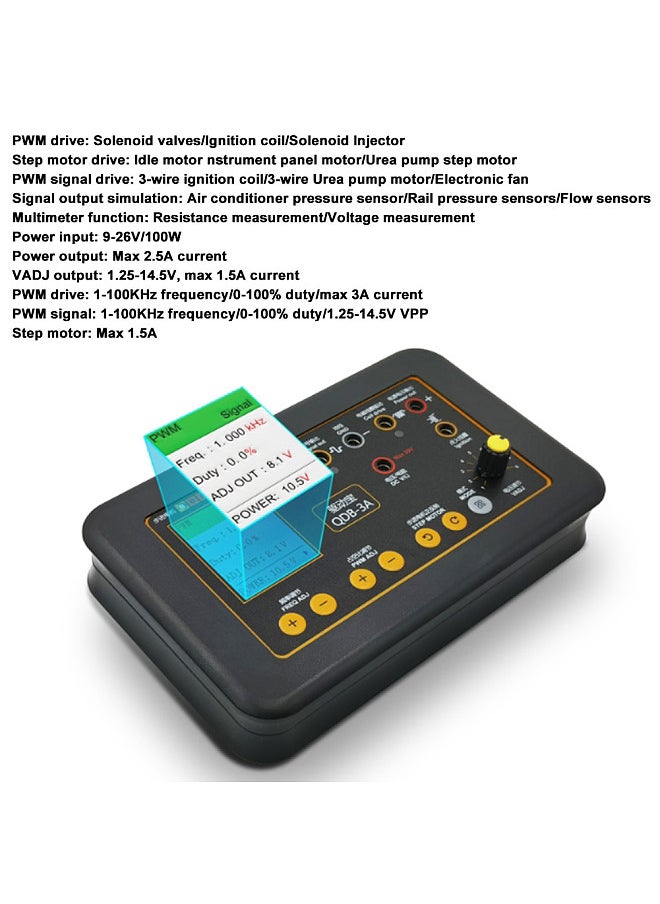

OverviewSpecifications:
Name: Ignition Coil Tester
Material: ABS
PWM drive: Solenoid valves/lgnition coil/Solenoid Injector

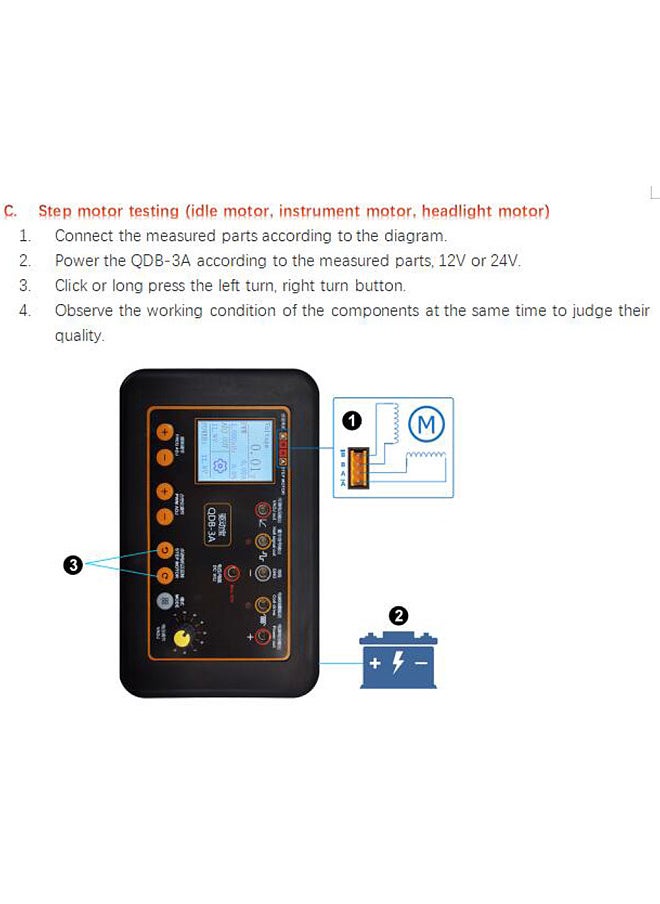

Step motor drive: Idle motor nstrument panel motor/Urea pump step motor

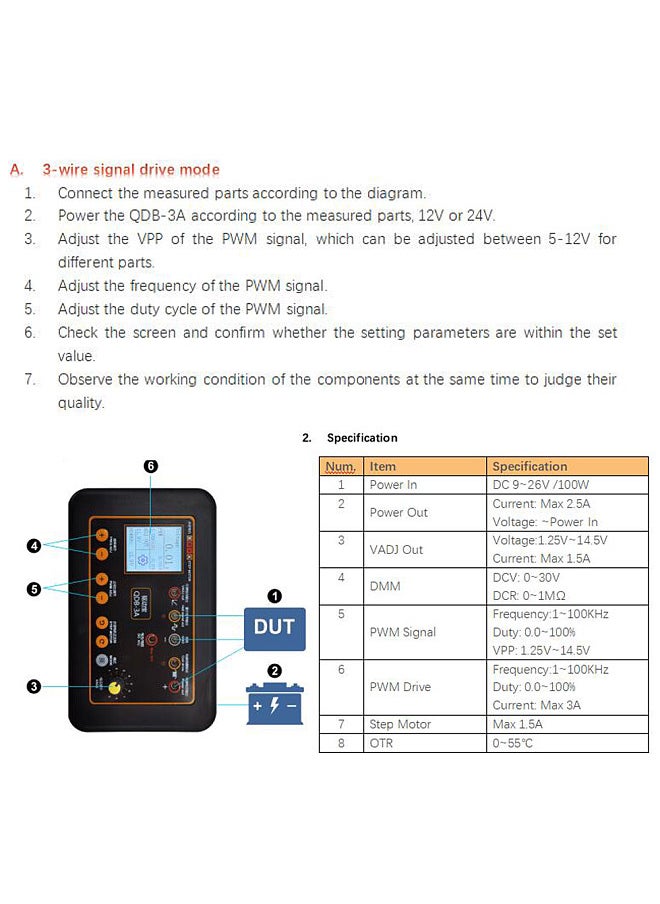

PWM signal drive: 3-wire ignition coil/3-wire Urea pump motor/Electronic fan
Signal output simulation: Air conditioner pressure sensor/Rail pressure sensors/Flow sensors

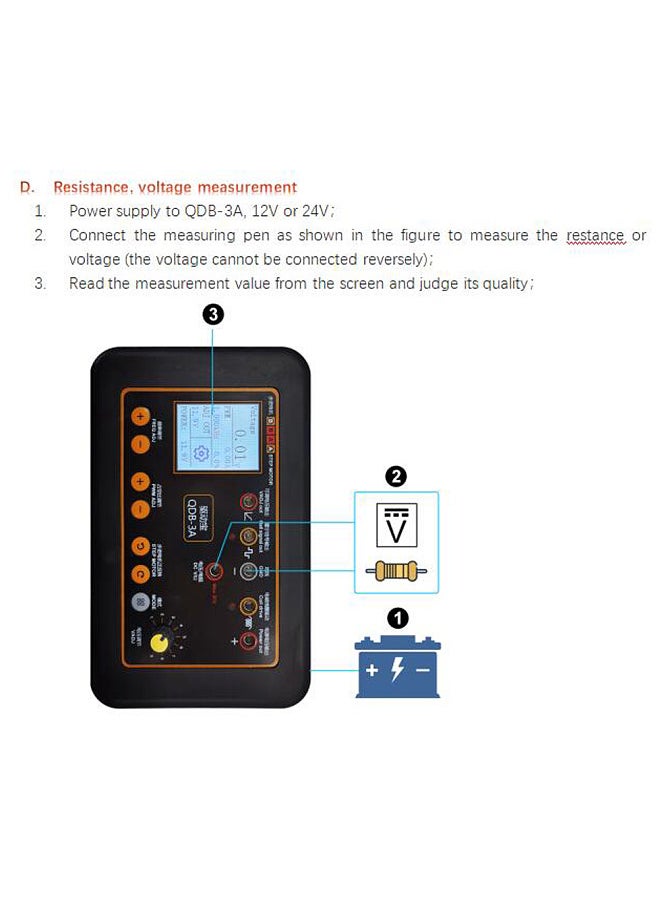

Multimeter function: Resistance measurement/Voltage measurement
Power input: 9-26V/100W
Power output: Max 2.5A current
VADJ output: 1.25-14.5V, max 1.5A current
PWM drive: 1-100KHz frequency/0-100% duty/max 3A current
PWM signal: 1-100KHz frequency/0-100% duty/1.25-14.5V VPP
Step motor: Max 1.5A
OTR: 0-55℃
Item size: 165 * 96 * 26mm / 6.50 * 3.78 * 1.02in
Package size: 150 * 100 * 60mm / 5.91 * 3.94 * 2.36in
Package weight: 550g / 1.21lb

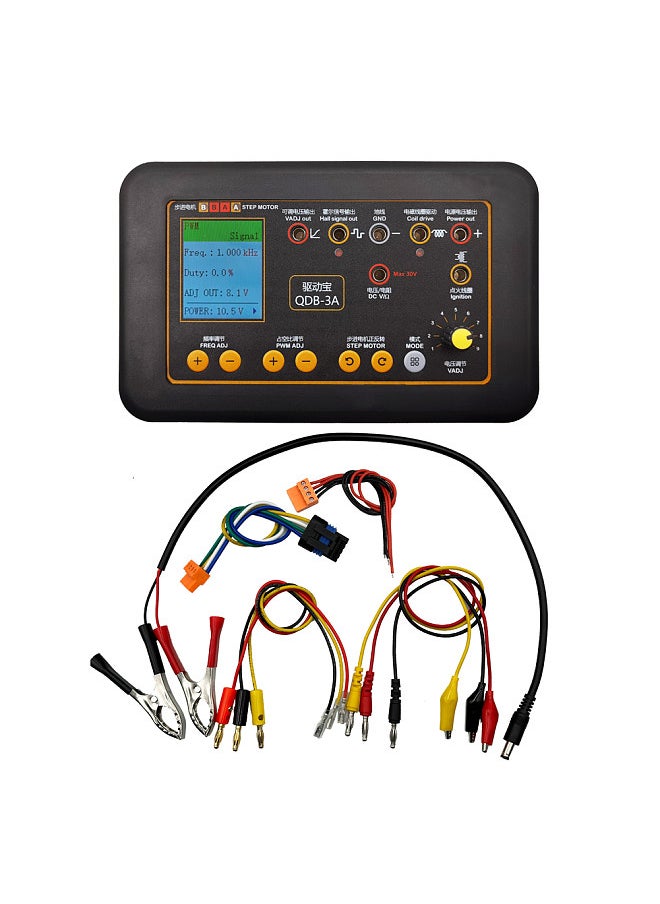

Packing List:
1 * QDB-A3 Ignition Coil Tester
1 * Power Cable
3 * Test Connection Cables
3 * Single Plugs
1 * Idle Speed Stepper Motor Plug
1 * Stepper Motor Welding Cable
