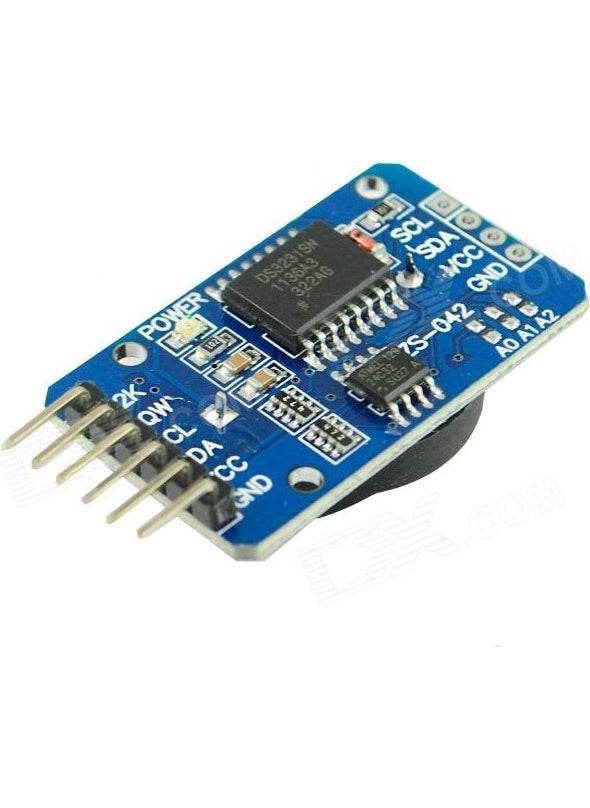

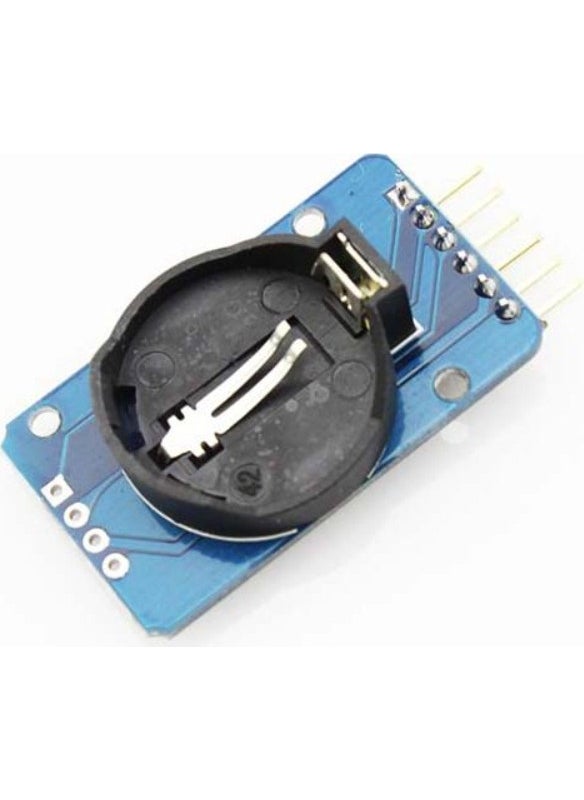

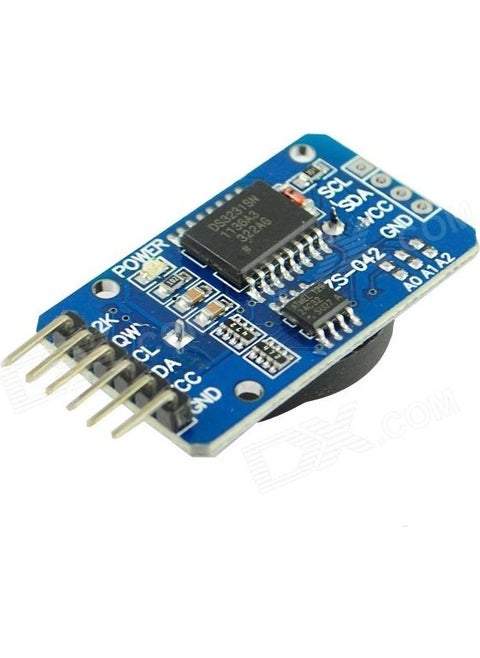

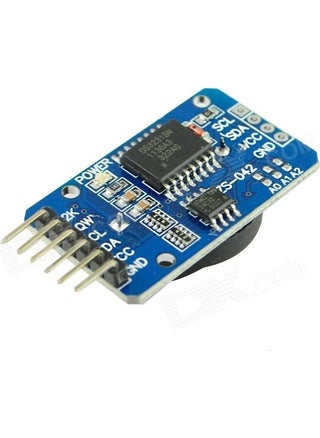

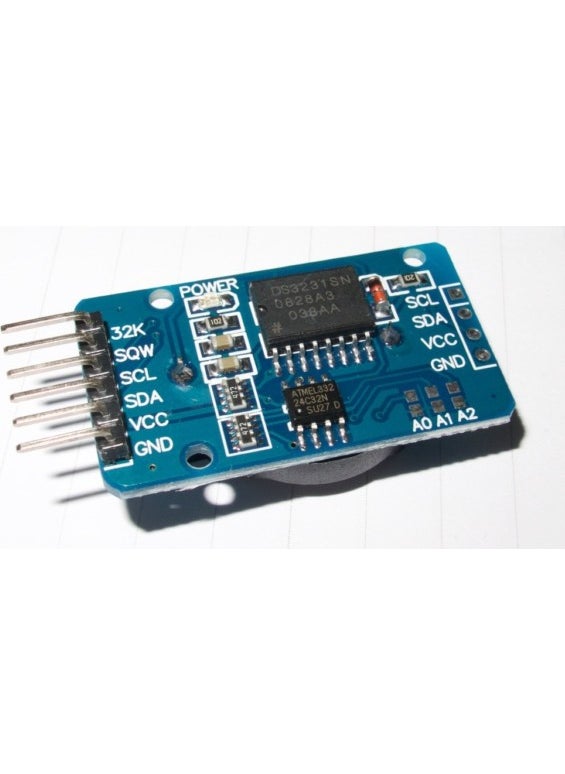

Real Time Clock Module Ds3231 At24C32 IIC Arduino

Real Time Clock Module Ds3231 At24C32 IIC Arduino

It is the module used to keep the clock memory in Arduino circuits. It can also be used for general purposes.

ÖFEATURES:

• Programmable square wave output,
• Actual time is hour, minute, hour, week, date, month and year ,   until 2100 year late valid.
• (Arduino uno r3 inçin) pin connector :
  • SCL - A5,
  • SDA - A4,
  • VCC - 5V,
  • GND - GND.



TECHNICAL FEATURES:

• çwork voltage: 3.3-5.5 V ,
• Clock chip: high precision clock chip DS3231,
• Clock precision: 0-40°C range, precision 2 PPM, error 1 minute about a year,
• Built-in itself temperature sensors çip sensitivity ± 3,
• Memory chips: AT24C32 (storage capacity: 32 k),
• IIC bus interface, high speed 400 kHz ( 5 v when çwork voltage v),
•  24 c32 address with A0 / A1 / A2 with , default address 0x57,
• Size :  38   mm   (length )  *   22 mm   (width )  *    14 mm   (high )
• Weight :  8 gr



PACKAGE CONTENTS:

• 1 x clock memory module (Battery not included)
