RJ45 Waterproof Connector, Panel Mounting RJ45, IP65 PCB Signal Panel Cat5/5e/6 8P8C Connector Ethernet LAN Cable Connector Double Head Coupler Adapter with Dust Cap (5 Pack, 90° Vertical)

RJ45 Waterproof Connector, Panel Mounting RJ45, IP65 PCB Signal Panel Cat5/5e/6 8P8C Connector Ethernet LAN Cable Connector Double Head Coupler Adapter with Dust Cap (5 Pack, 90° Vertical)

★★★Why choose us?★★★

✅ - It is a dual RJ-45 coupling connector for panel mounting. It can accommodate any standard RJ45 plug and can be mounted on the housing.

✅ - Both are female plugs. The cable is pushed in only on both sides, no need to punch holes, and use the same connector on both sides.

★★★Specifications★★★

INGRESS PROTECTION: IP67(with Waterproof/Dust Cap)

Withstanding voltage: 500V

Contact resistance: less than 60mΩ(Crystal head to RJ45 network port)

Color: Black

Shell, insulating parts: High-performance engineering plastics

Material of copper needles: Copper alloy

Connect Port: RJ45

Cable Core: 8

Pins:8P8C

Connecting mode: Plug/Unplug

Working Temperature: -25℃-80℃

Flame retardance: UL94 V-0

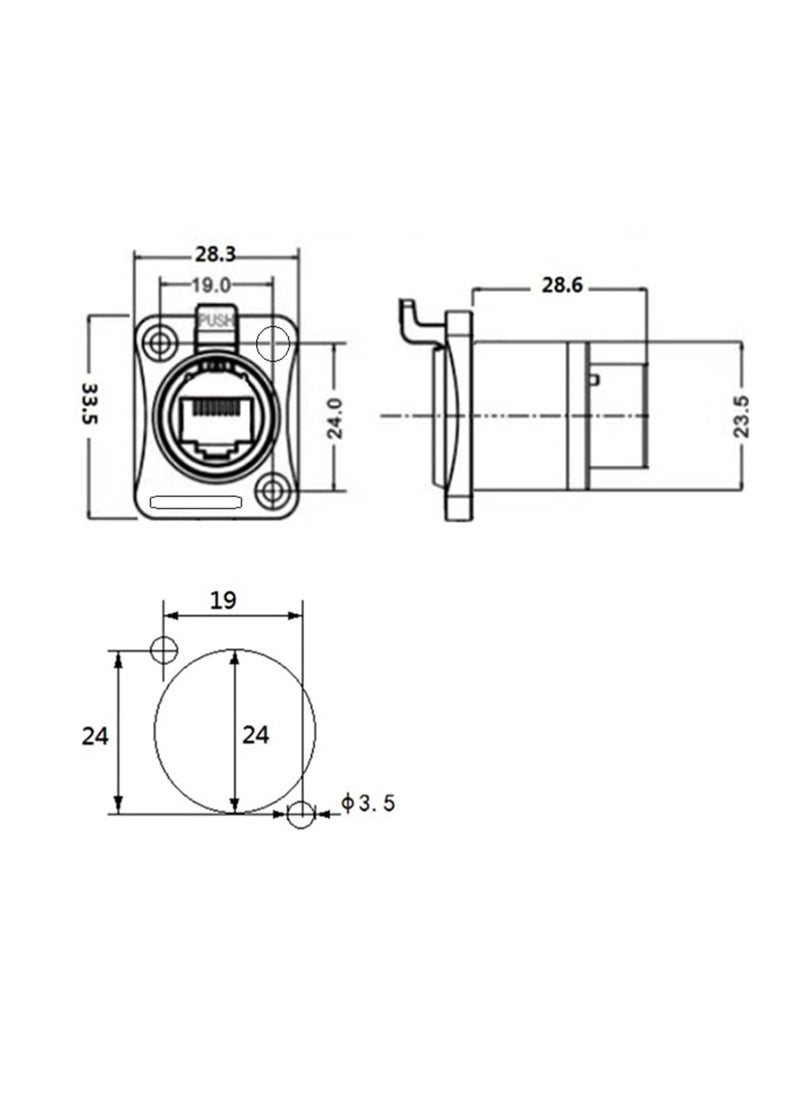

Mounting holes: diameter 3.4mm

★★★What you will get★★★

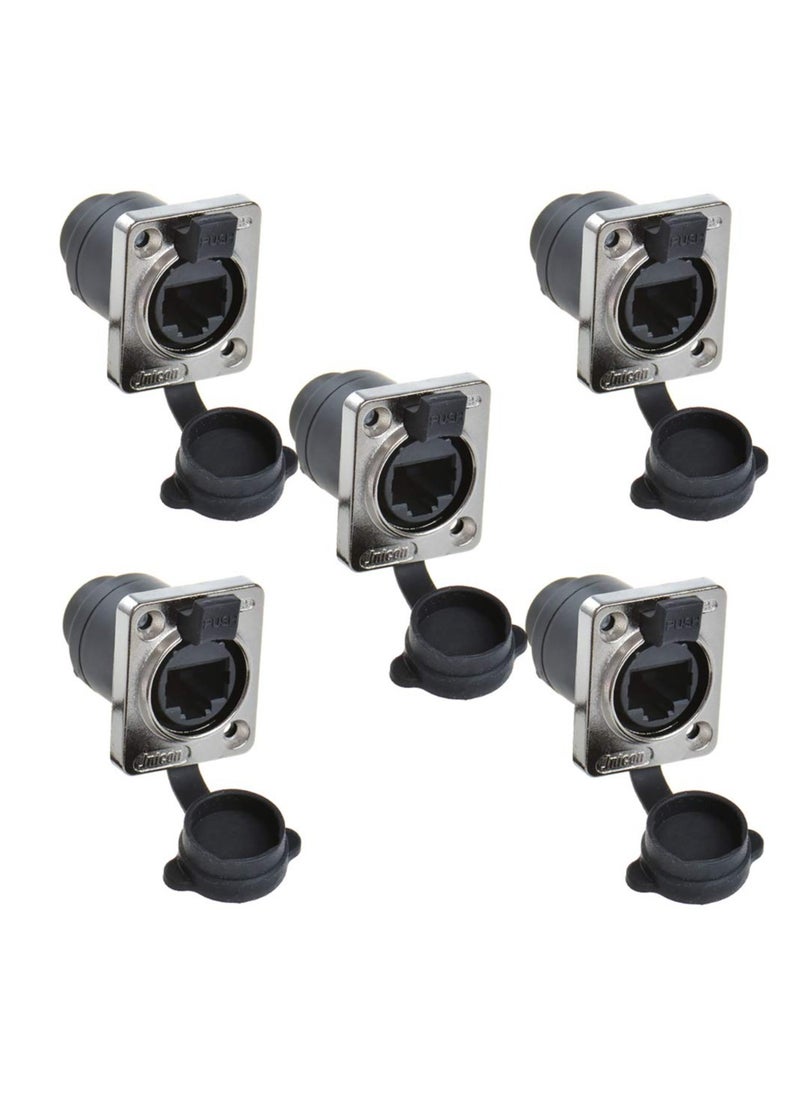

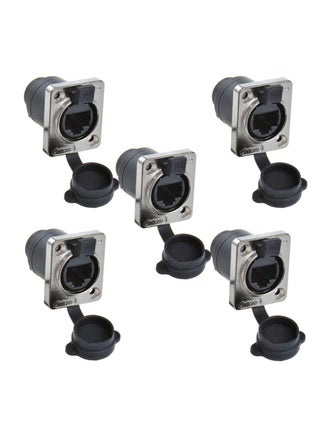

5 * PCB Signal Panel RJ45 Connector

★★★Note★★★

- Manual measurement, please allow slight errors on size.

- The colors may exist slight difference due to different screens.
