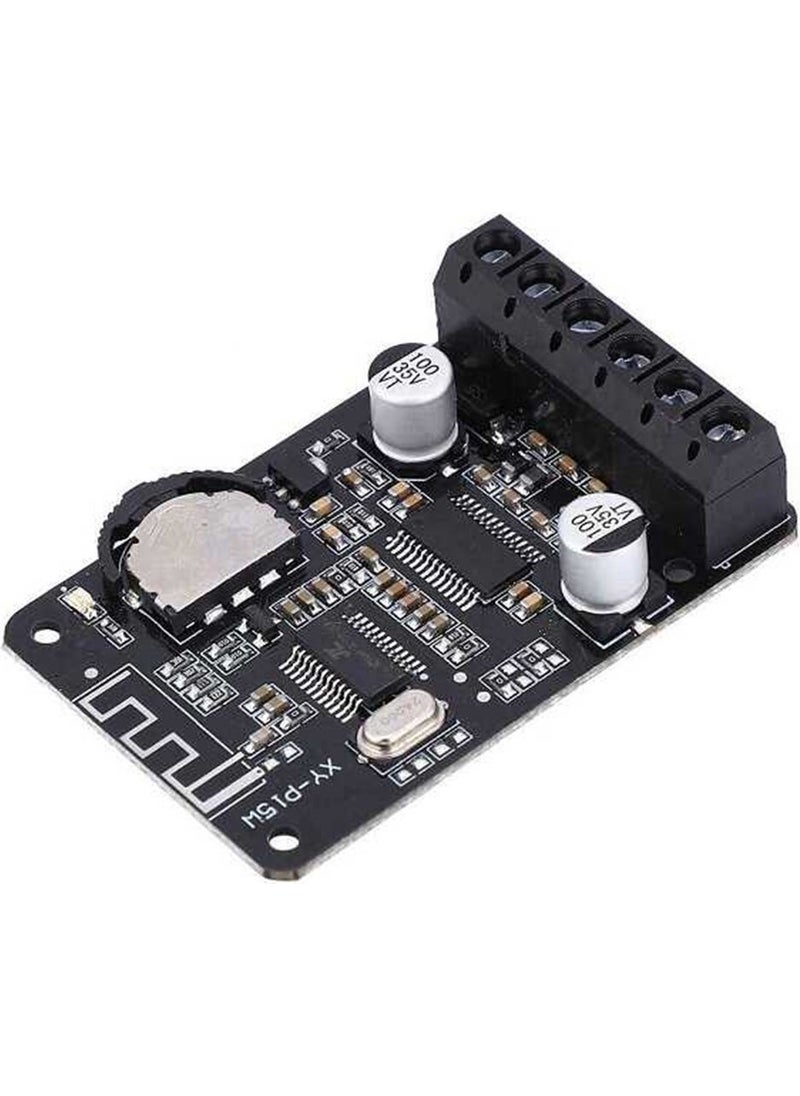

OverviewXY-P15W Bluetooth Amplifier Module Amplifier Circuit
XY-P15W is a high power stereo Bluetooth audio module. It has dual channels and two speakers can be connected. It can be powered by a DC source between 8-24V from the terminals. It is very easy to use. Speakers are connected from SPK1 and SPK2 terminals. Then you can listen to your audio files by establishing a Bluetooth connection with your phone or computer. You can both pause the tracks being played and increase or decrease the volume with the rotatable volume adjustment knob on it.
Note: It does not transmit sound during phone calls.
Features:
- Wide voltage operating range
- Can work with many different speaker types 4-16 ohms
- Easy volume adjustment
- Reverse connection protection
- Short circuit protection
- Overheating protection
Technicial Specifications:
- Working Voltage: DC 8V-24V
- Communication distance: 15 meters (max)
- dual channel
- Output Power (at 1KHz):
- Output power 16W*2 at 12V 4ohm
- Output power 10W*2 at 12V 8ohm
- Output power 15W*2 at 16V 4ohm
- Output power 20W*2 at 20V 4ohm
- Output power 30W*2 at 24V 4ohm (Need to add extra heat sink!)
- Matching speaker (30W ~ 150V):
- 7.1> at 12V .4ohm
- 7.2> at 24V .8 ohms
- 7.3> at 24V .16ohm
- Working Temperature: -40℃~85℃
- Module Size: 50 * 35 * 14mm
