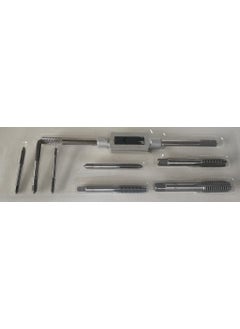

Roll Guide Set 8 Pieces

BN5 Manual Set 8 Pieces

The thread guide set is a set used for threading screws on cylindrical surfaces. The set consists of two main parts: sheet and guide.

sheetIt is a tool used to cut screw threads on the outside of cylindrical surfaces. The body of the die is made of high alloy steel and has cutting edges on it. The cutting edges of the die vary depending on the type of material to be threaded.

GuideIt is a tool used to cut screw threads on the inside of cylindrical surfaces. The body of the guide is made of high alloy steel and has guide teeth on it. Guide teeth assist the cutting edges of the die and ensure that the screw thread is opened in the correct shape and size.

Thread guide sets can be designed to cut screw threads of different sizes and types. Sets are generally produced in two different measurement systems, metric and inch.

Some points to consider when using a die guide set are:

• The guide and die must match the diameter of the hole.
• The guide must be inserted correctly into the hole.
• The die must completely cover the surface of the thread opened by the guide.
• The die should not be pressed too much into the hole.

The die guide set should be cleaned regularly. The set must be cleaned of oil and sawdust after use.
