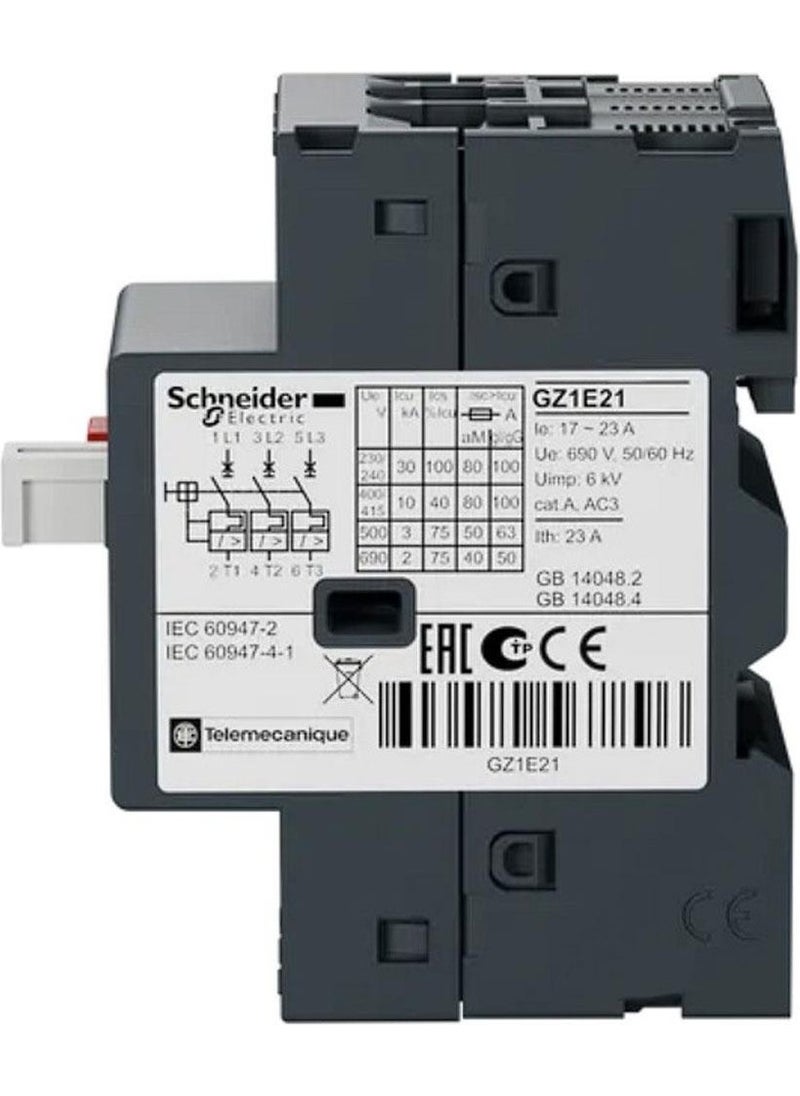

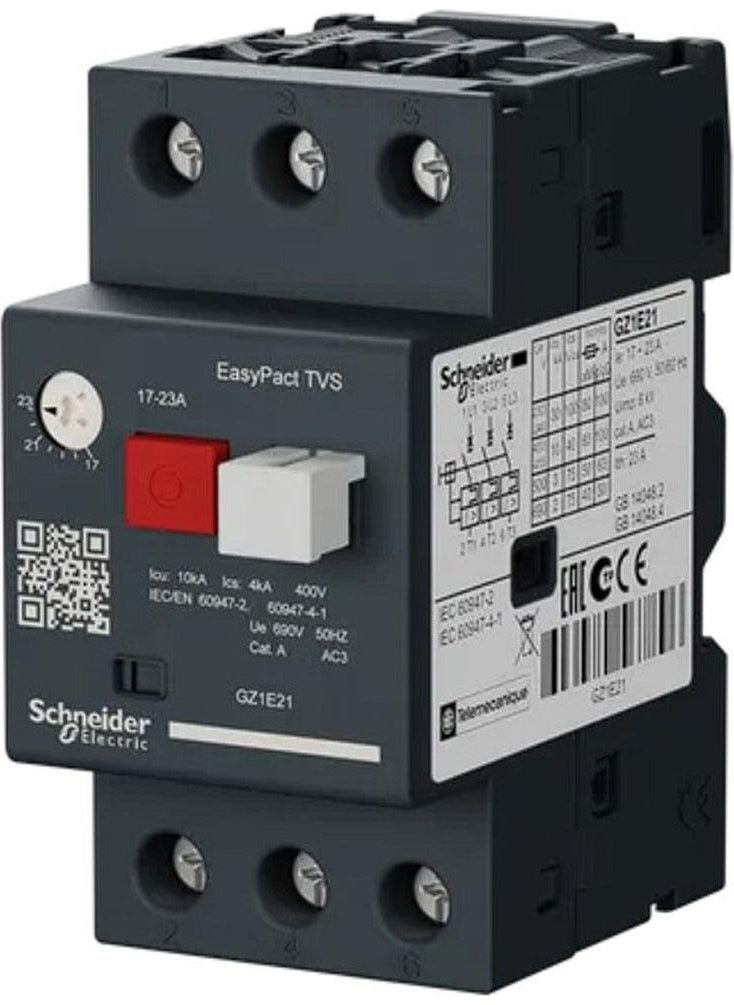

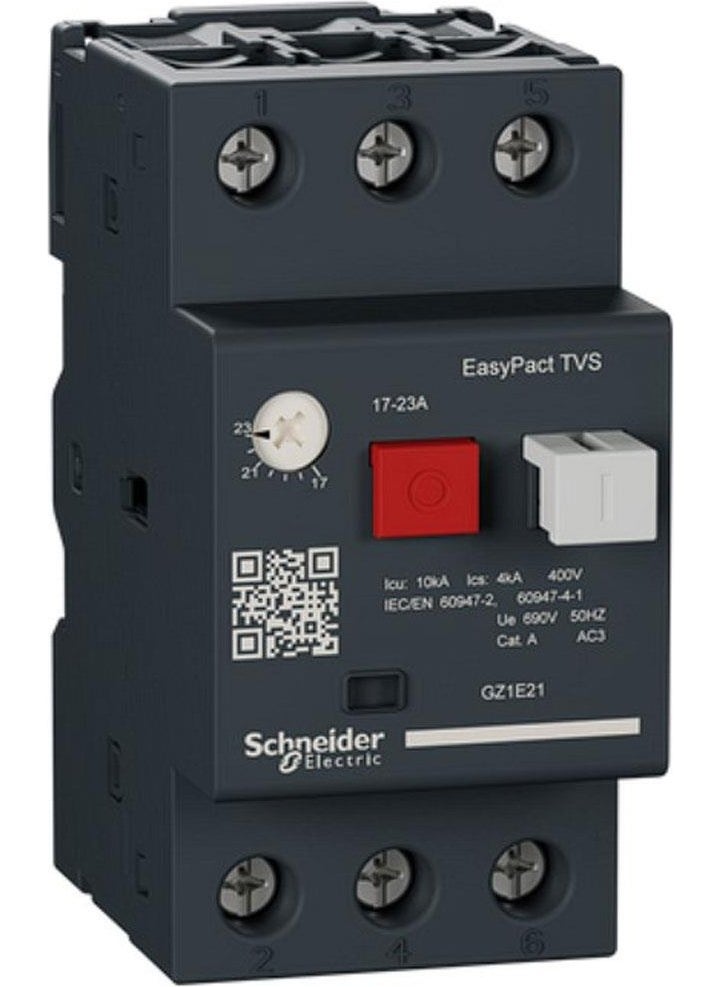

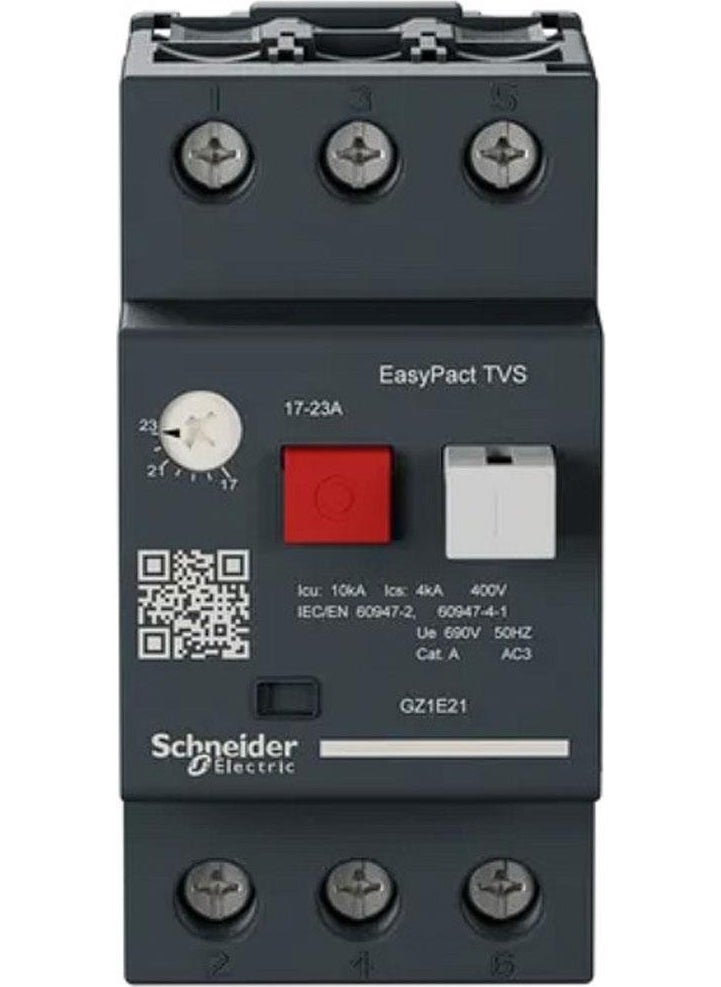

SCHNEIDER EASYPACT TVS GZ1E21 ENGINE PROTECTION SWITCH (17A-23A)

SCHNEIDER ELECTRIC EASYPACT TVS MOTOR PROTECTION SWITCHES



Schneider Electric EasyPact TVS series motor protection switches are designed to perform basic motor starter and switching functions. It is used in simple machines for HVAC, Pumps, Telecommunication, GenSet, Textile, Packaging, Conveyor etc.



SCHNEIDER EASYPACT TVS GZ1E21 ENGINE PROTECTION SWITCH (17A-23A)





TECHNICAL SPECIFICATIONS:

- For Motor Circuit Breaker Application,

- Thermal Magnetic Opening Unit Technology,

- AC-1 and AC-3 Usage Category,

- 3P Pole Definition,

- 50/60Hz Network Frequency,

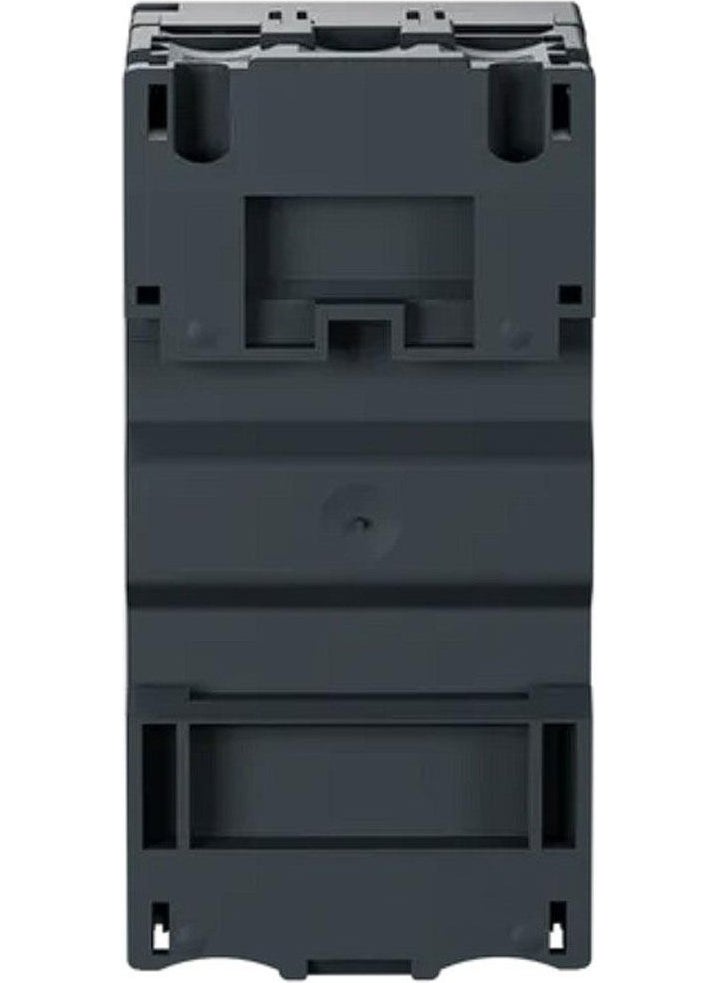

- Rail Mounting with Screws and Clips,

- 5.50 kW at 230V AC 50/60Hz Motor Power (kW),

- 9.00 kW at 400V AC 50/60Hz Engine Power (kW),

- 11.0 kW at 440V AC 50/60Hz Motor Power (kW),

- 11.0 kW at 500V AC 50/60Hz Motor Power (kW),

- 18.5 kW at 690V AC 50/60Hz Engine Power (kW),

- 17A…23A Thermal Protection Setting Range,

- 327A Magnetic Opening Current,

-≤690V AC 50/60Hz

- 690V AC 50/60Hz[Ui] Nominal Insulation Voltage,

- 6kV [Uimp] Nominal Impulse Withstand Voltage,

- 2.5W Power Dissipation per Pole,

- 100,000 Cycles Mechanical Durability,

- 100,000 Cycles AC-3 Electrical Durability,

- 25 Cycles/Hour Maximum Working Rate,

- EN/IEC 60947-4 and 60947-2 Standards,

- IEC 60529 Protection Degree Compliant with IP20,

- (-20°C…. 60°

- (-40°C…. 80°

- 960°IEC 60695-2-1 Fire Resistance Conforming to C,

- Dimensions 89mm (H) x 44.5mm (W) x 78mm (D),

- 0.26 Kg Product Weight,

- Under 18 Months Manufacturer's Warranty.

[Ue] Nominal Operating Voltage,C) Ambient Temperature for Operation,C) Ambient Temperature for Storage,
