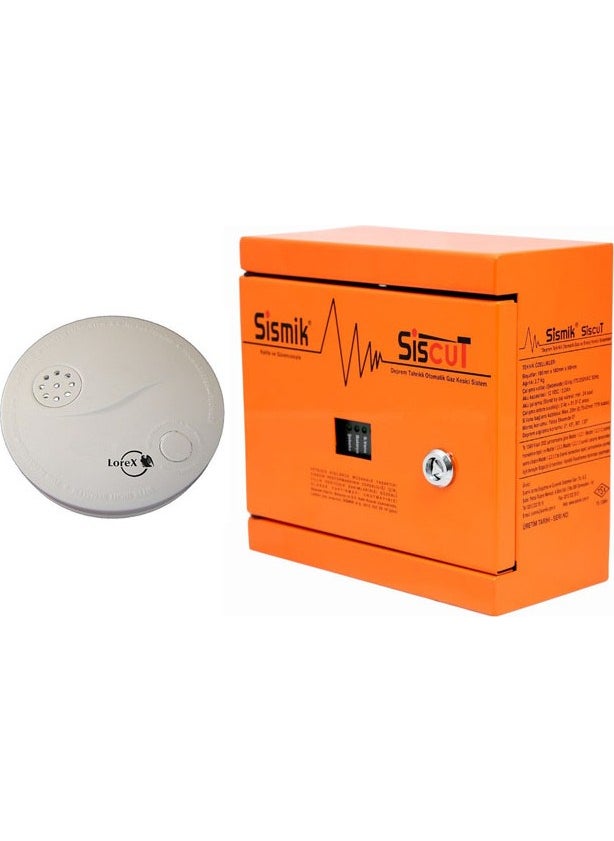

Seismic Siscut / 4 Output Electromechanical (No-C-Nc) Earthquake Sensor + Relay Smoke Detector

Name: noon E-commerce
Address: Boulevard Plaza Tower 2, Sheikh Mohammed bin Rashid Boulevard, Dubai, Dubai, 454602, AE
Telephone: +971551972585
Price range: $ - $$$

Sorry! This product is not available.

Product Overview

Overview

Seismic Siscut / 4 Output Electromechanical (No-C-Nc) Earthquake Sensor Lorex Relay Smoke Detector

SET FEATURES

Technicial Specifications

Operating voltage (on mains): Input; 170/250VAC 50Hz
Current draw in standby: 30mA
Battery capacity: 12VDC / 2.2Ah
Battery operating time (Stand by): 24 hours
Battery check feature: Automatic
Operating ambient temperature: 0 to +51.5º C
Mounting position: 0° horizontally
Battery warning voltage: 11.85 VDC(±5%)
Dimensions: 185mm*180mm*90mm
Weight: 2.7 Kg
Dry Contact N/O – N/C: Additional Contact can be installed upon request for use in Elevator, Generator, Electricity, Fire Panel etc. systems.

 Indicator and Alarm Features

Earthquake alarm: Light indicator and sound
Mains operation indicator: Light indicator
Battery operation indicator: Light indicator
Battery defective or insufficient: Light indicator and audible. The battery test performed automatically by the device is repeated for 1 day. During this period, if the batteries cannot reach above 11.85V, an audible warning will be given every 5 seconds and the battery LED on the light indicator will appear to flash.
S.Valve malfunction or line break warning: Light indicator and audible. If there is a fault in the solenoid valve coil or a break in the connection to the valve, the S.Valve LED, one of the light indicators on the cover, will blink continuously and an audible warning will sound once every second.
Battery automatic charging feature.
Alarm reset feature: Manually with the reset button.
After closing, shock, vibration etc. Even if the mounting axis is disrupted by the effects, it does not return to the initial position and maintains the alarm status until manually reset.
Truck, Dozer, Train, Plane, Cylinder etc. It is not affected by the operation of vehicles that can vibrate the ground, it works with the mass movement of the ground.

Lorex Relay Smoke Detector

LOREX LR-2100-R12&24 Relay smoke detector works on the principle of optical smoke detection. As soon as it detects smoke, the siren on it warns the user by giving an alarm with a intensity of 85dB.
At the same time, you can give commands to an existing burglary alarm system, fire alarm system or PLC-powered automation system with the selectable NO or NC dry contact outputs.

For example, when your LOREX smoke detector detects smoke or fire, you can activate the emergency stop system of your elevator with NO/NC commands, so that the elevator is lowered to the nearest floor and out of service.

It can be offered according to 12V and 24V DC supply voltages.

You can test it at any time with the TEST button on your LOREX smoke detector.
