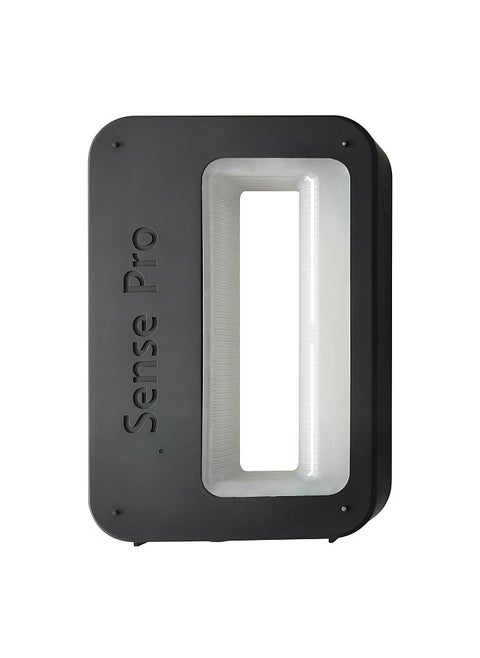

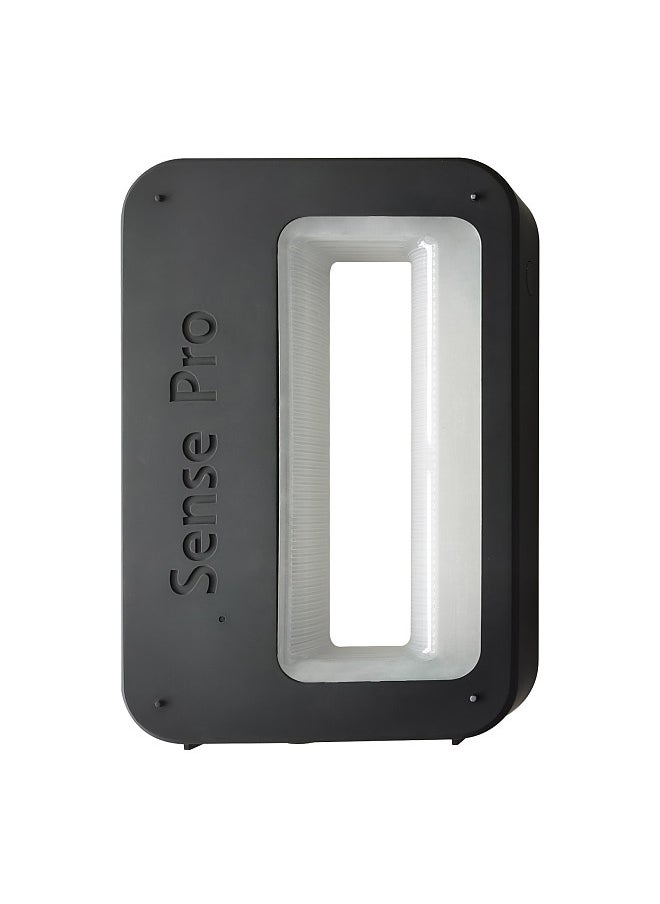

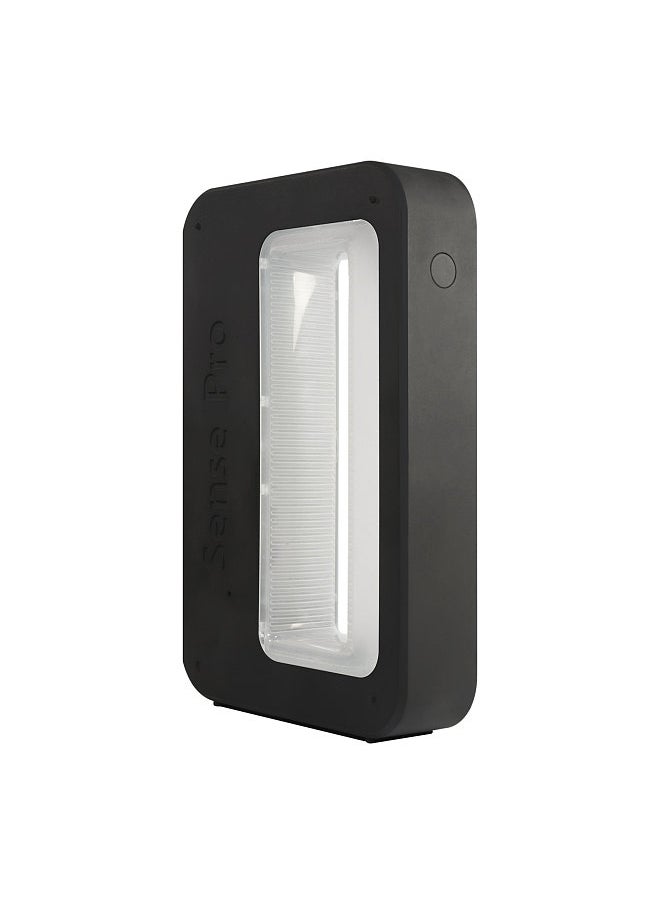

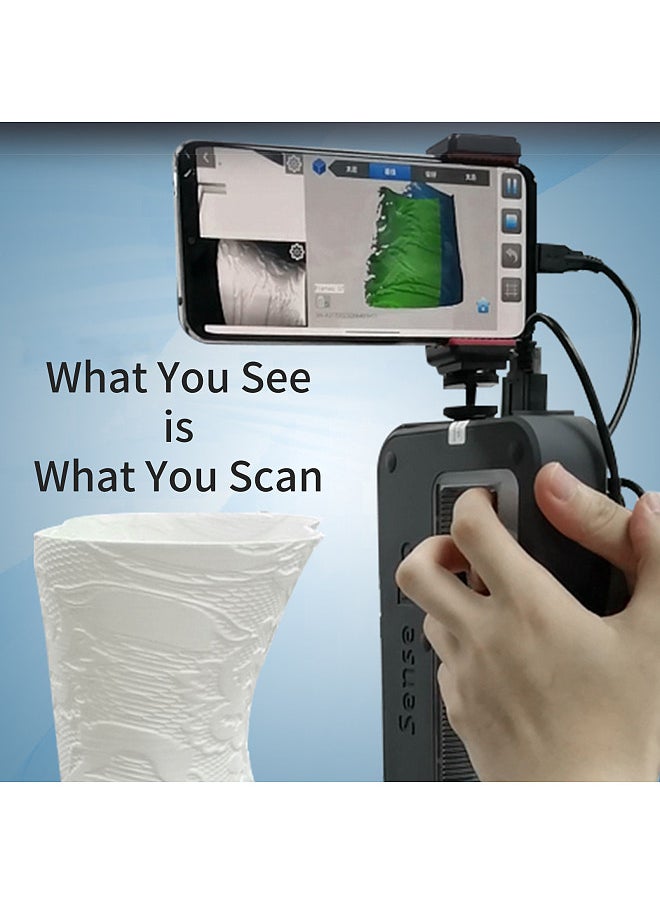

Highlights- Upgraded Version Sense Pro: Support Connect with mobile phone directly and able to display the image on your phone on time when scanning the model, able to scan according to the navigation in the software
- Professional 3D Scanner: The lens chip adopts the latest structured light 3D sensing chip CS02, with a single scanning accuracy of 0.3mm

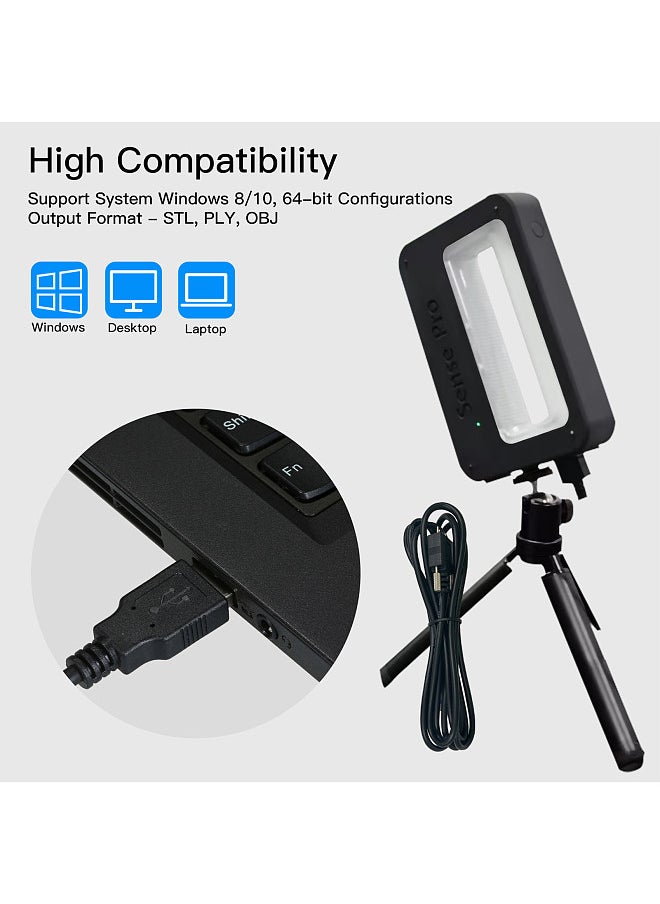

- Wide Compatibility: Upgraded version 3D scanner is compatible with Windows10/8, iOS and Android System, USB and WiFi connections are optional, which can see the images both in computer and mobile phone.
- Simple Operation: Hand-held scanning, the perfect 75.55 degree design of the handle arc is more ergonomic; Humanized one-key operation
- Safe to Use: In line with international strict technical standards, using Class 1 eye safe infrared structured light
OverviewTechnology: Dual Camera Infrared Structured Light
Single Scanning Accuracy: 0.3mm
Volume Accuracy: 0.5mm/m
Single Capture Range: 210mm x 130mm
Working Distance: 200-800mm
Minimum Scan Volume: 50x50x50mm
Depth Image Size: 640 x 400 px
Color Image Size: 1920 x 1080 px
Depth Resolution: 640,000 dots/SEC
Scan Speed: 10fps
Laser: Infrared (Eye-Safe)
Alignment: Feature Alignment, Marker Alignment
Output Format: STL, PLY, OBJ
Texture Scan: Yes
Special Object Scanning: For The Transparent And Highly Reflective Objects, Please Spray Powder Before Scanning
Outdoor Scanning: Cover Is Needed To Avoid Interference Of Strong Light
Required Configuration: Windows 8/10, 64-bit Configurations
Computer Minimum Configuration Requirements: i5-6 Generation And Above, 6G Memory, Video Memory >1G
Recommended Configuration: i5-6 Generation And Above, 8G Memory, Video Memory>2G
Interface: USB 3.0
Scanner Weight: 380g
Scanner Size: 129x178x33mm
Package Size: 31x25.3x7.5cm/12.2x10x2.9in
Package Weight: 1225g/43.2oz
Notes:
1. App Download: For iOS system, Search “Handyscan“ in APP Store; For Andorid system, please download the APP via Flash Disk (comes with the package).
2. Make sure that the SensePro scanner is connected to the 3.0 port of your computer. If it is connected to 2.0, it may cause insufficient power supply and SensePro repeated disconnection problems.
