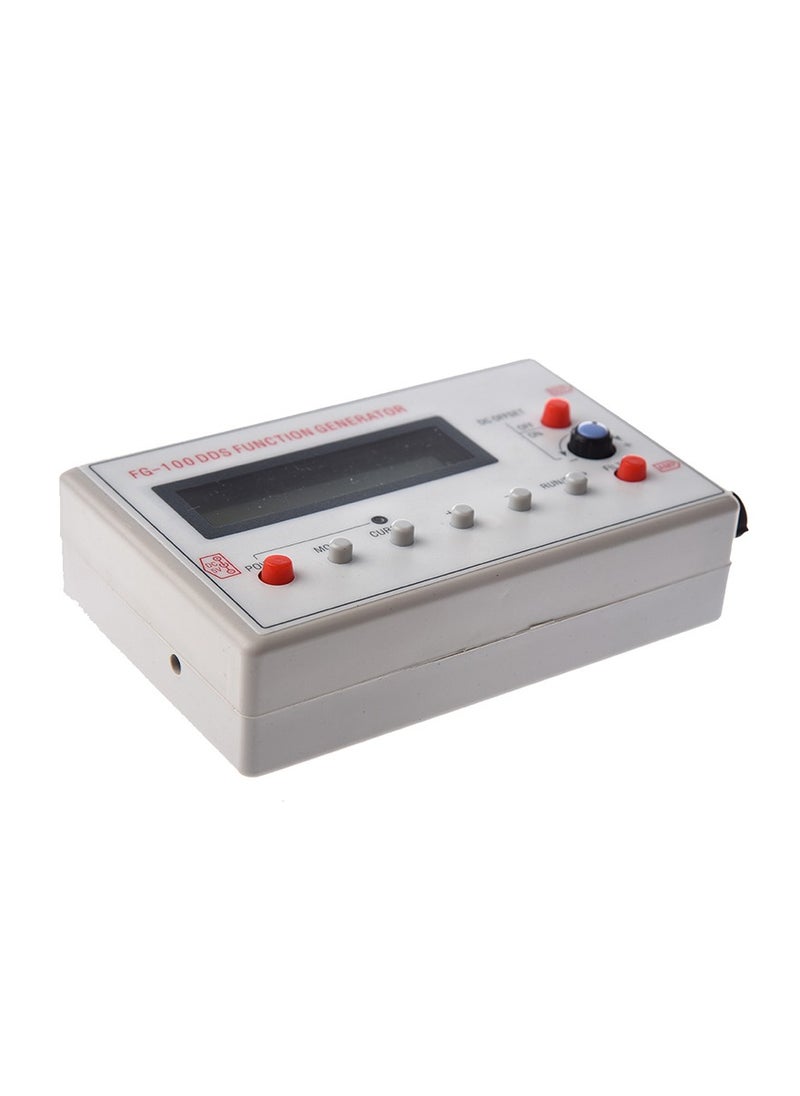

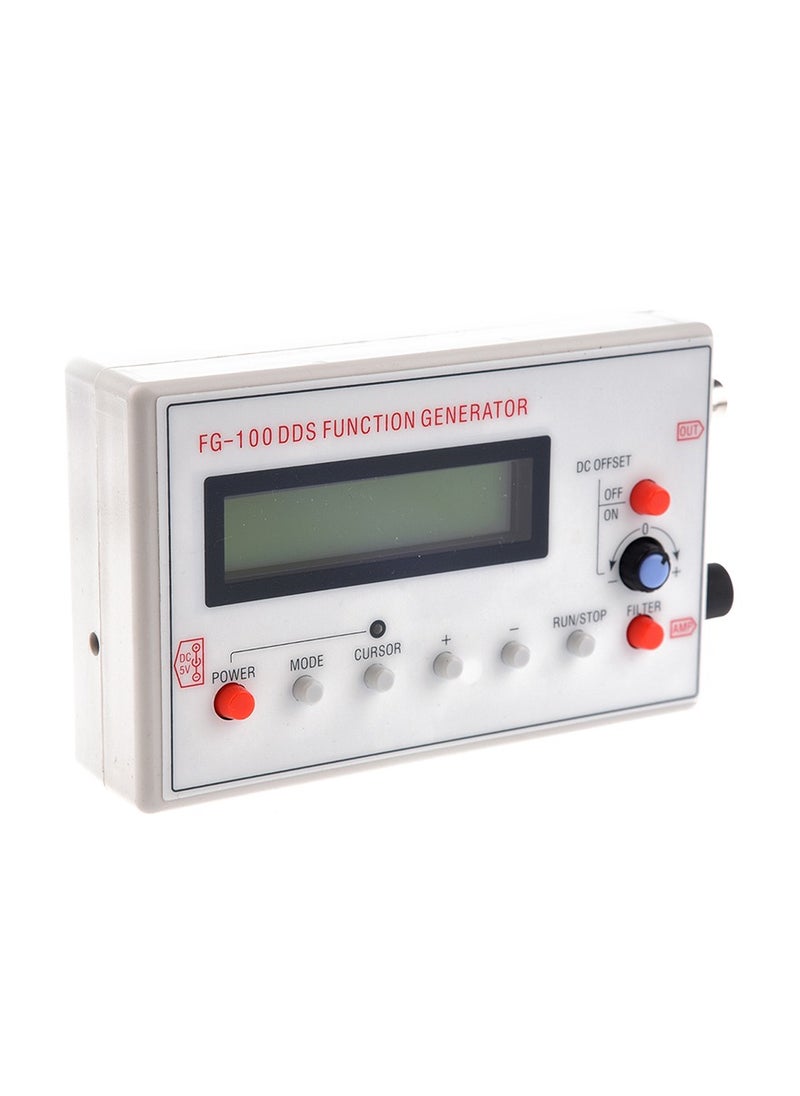

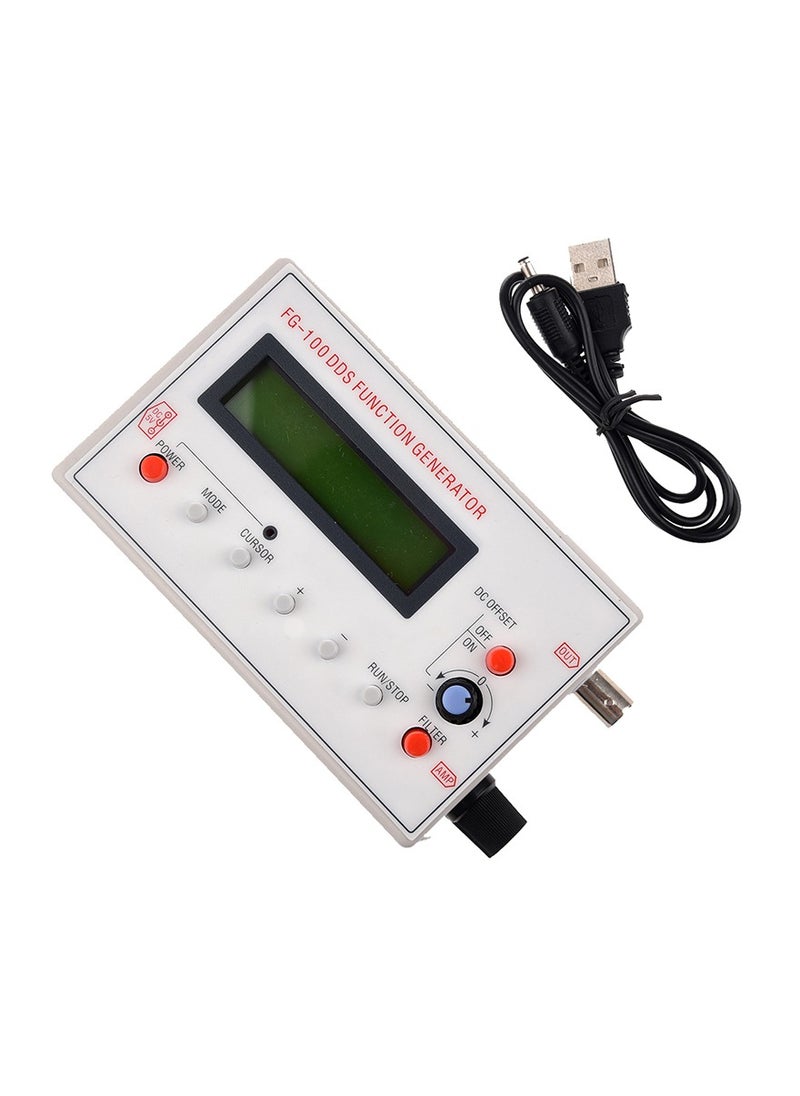

signal generator FG-100 DDS function generator Function Signal Generator

This functional signal generator can test many kinds of wave forms such as: sine, square, triangle, positive and negative sawtooth waveform. It is especially designed for those professional workers. Features： It is small but has many functions, easy to operate and carry. It can be used with oscilloscope to test and debug electronic circuit, the frequency response of audio amplifier and impulse response. The square waveform is suitable for oscilloscope attenuator and the adjustment of probe impulse response. It also can calibrate the sweep time factor of oscilloscope. Have a filter (can be opened and closed) to suit the output of sine wave and pulse wave. Specifications: The Output Signal Types: sine, square, triangle, positive and negative sawtooth waveform. Frequency Range: sine wave is 1Hz-500kHz, other kinds of waveforms is 1Hz-20kHz. Resolution: 1Hz Sine Wave Distortion: under 1kHz < 1%, over 1kHz <0.5%. DC Offset Range: ±10V (Can be closed) Output Range: ±10V(P-P) Output Impedance: 50ohm Power Supply Voltage: DC3.5-10V. Display: LCD Item Size: 14 * 8 * 3.5cm / 5.51 * 3.15 * 1.38in LCD Screen: 6.5 * 1.5cm / 2.56 * 0.59in Item Weight: 197.5g / 6.96oz Package Size: 23 * 16 * 3.5cm / 9.06 * 6.3 * 1.38in Package Weight: 202.5g / 7.15oz Package list: 1 * Signal Generator 1 * USB to DC Power Cable
