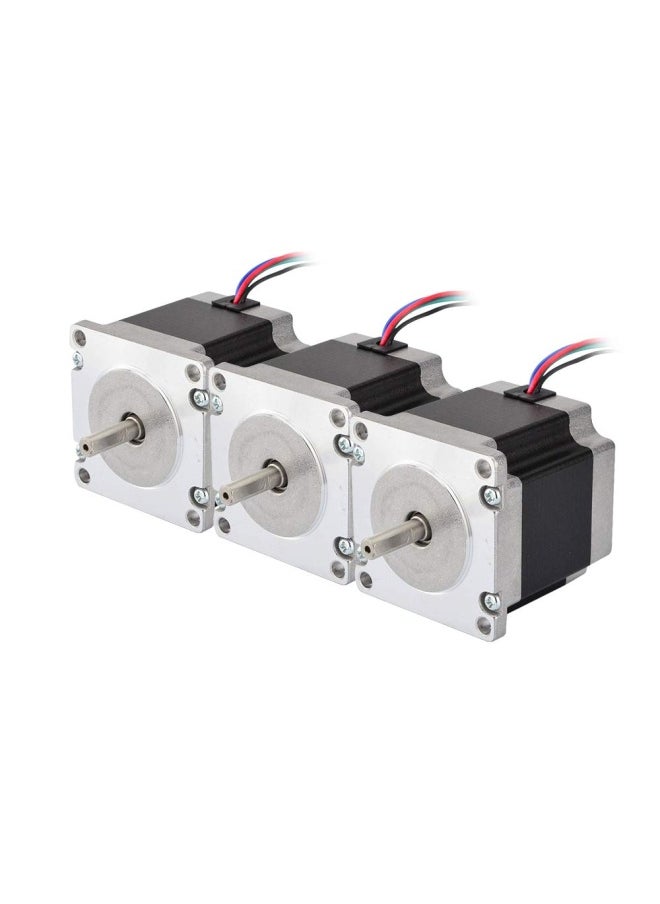

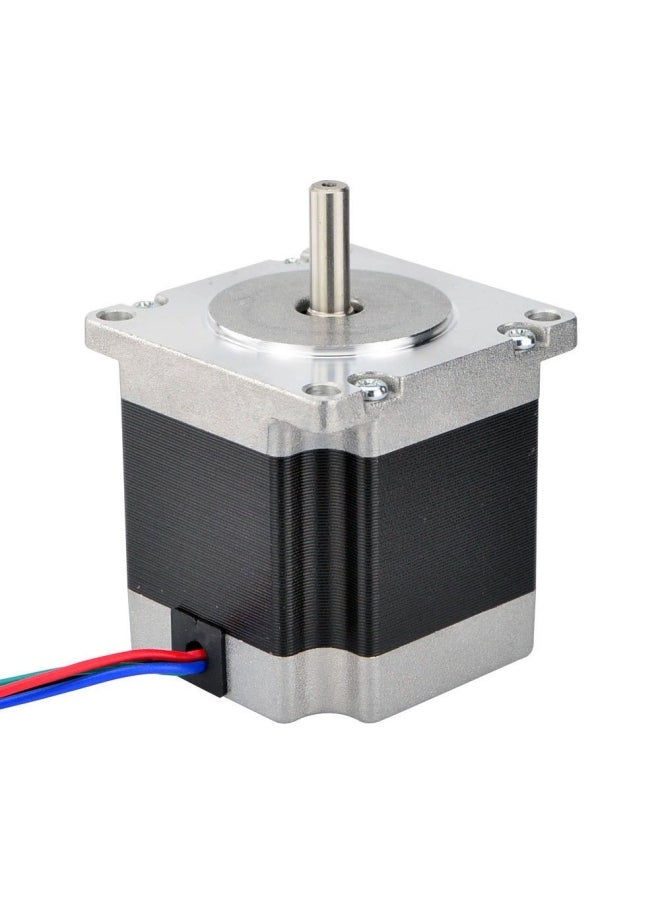

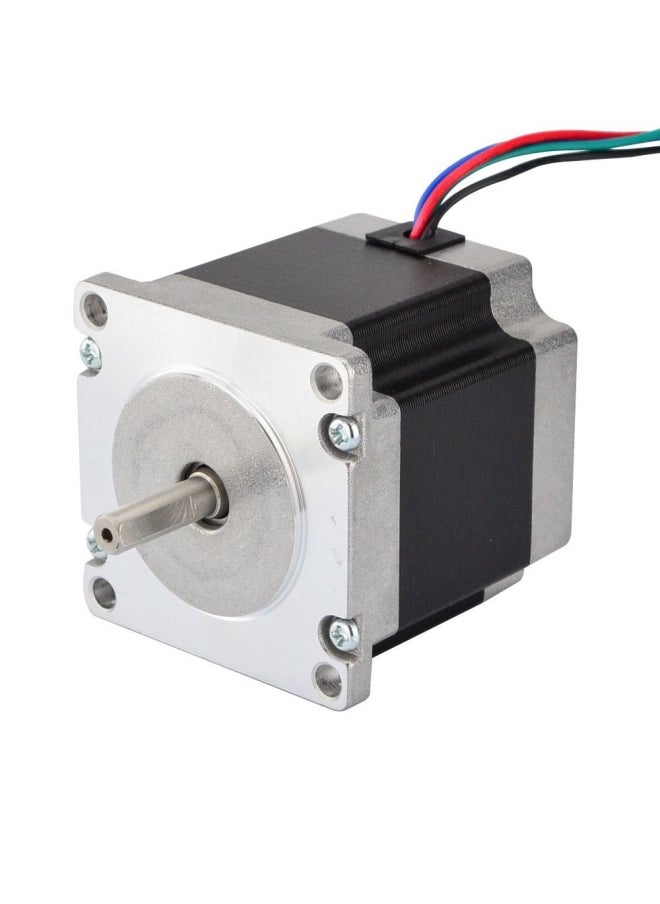

Stepperonline 3Pieces Nema 23 Cnc Stepper Motor 2.8A 179Oz.In 56Mm Bipolar For Hobby Cnc Kit

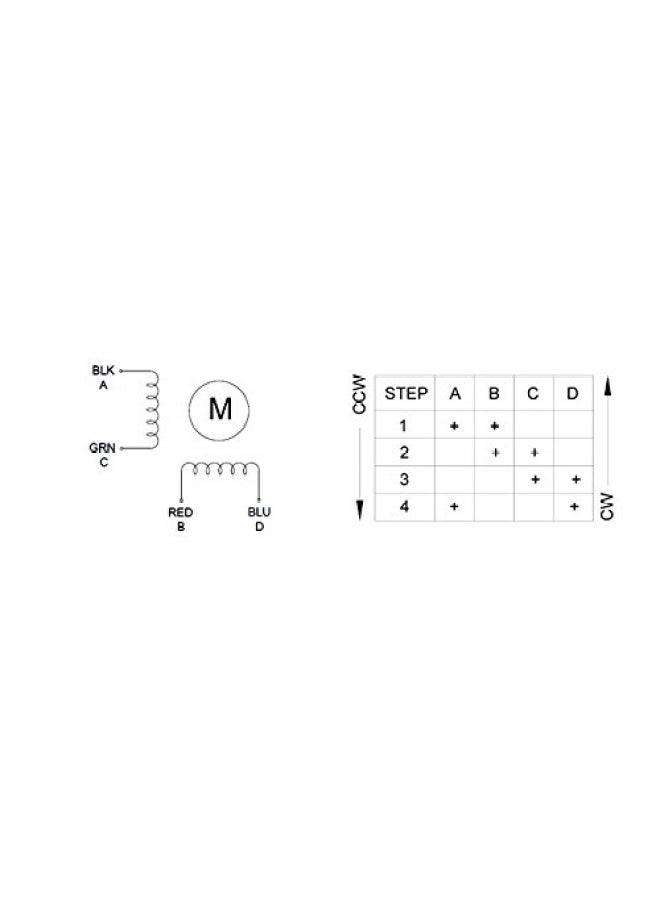

OverviewThis bipolar Nema 23 stepper motor with 1.8 deg. step angle (200 steps/revolution). Each phase draws 2.8A, allowing for a holding torque of 1.26Nm(178.5oz.in). Electrical Specification: Manufacturer Part Number: 23HS22-2804S Motor Type: Bipolar Stepper Step Angle: 1.8 deg. Holding Torque: 1.26Nm(178.5oz.in) Rated Current/phase: 2.8A Phase Resistance: 0.9ohms Inductance: 2.5mH /-20 (1KHz) Physical Specification: Frame Size: 57 x 57mm Body Length: 56mm Shaft Diameter: 6.35mm Shaft Length: 20.6mm Number of Leads: 4 Lead Length: 300mm Weight: 700g Connection: Black(A ), Green(A-), Red(B ), Blue(B-) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

Package in 3PCS
