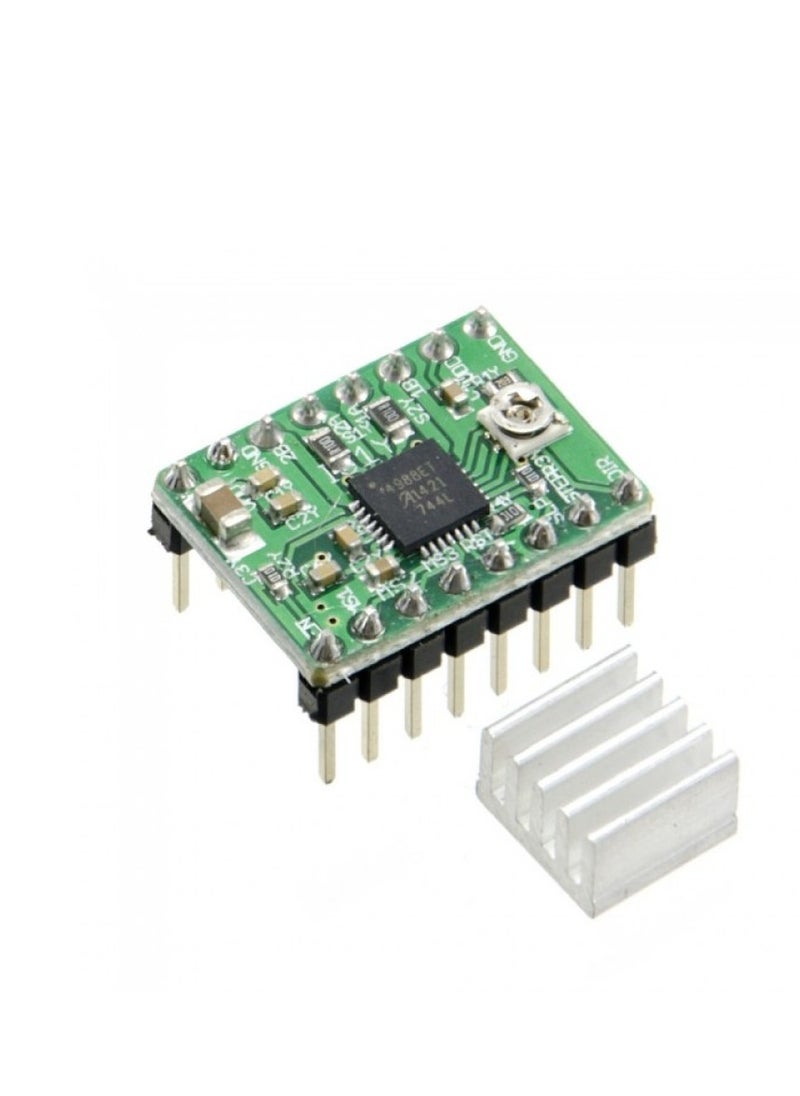

TECNOIOT 5 x Reprap Stepper Driver A4988 Stepper Motor Driver Module with Heatsink

OverviewPlease note: The order over 20 Euros will be shipped by a GSL express courier (48-72h). The order less than 20 Euros will be shipped by the certificated mail of post office. A4988 is a complete microstepping motor driver with built-in translator for easy operation. This product is available in full, half, 1/4, 1/8 and 1/16 step modes operate bipolar stepper motors, output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator in slow or mixed decay modes. A4988 converter is the key to the easy implementation. As long as the "step" input inputting one pulse drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened. Features: Low RDS (On) Output Automatic current decay mode detection/selection. Mix with slow current decay modes. Synchronous rectification for low power dissipation. Internal UVLO Cross-current protection. 3.3 and 5 V compatible logic supply Thermal shutdown circuitry Ground fault protection. Load short circuit protection. Optional step five modes: full, 1/2, 1/4, 1/8 and 1/16. Package contents: 5 x A4988 stepper motor driver module. 5 x Heatsink.
