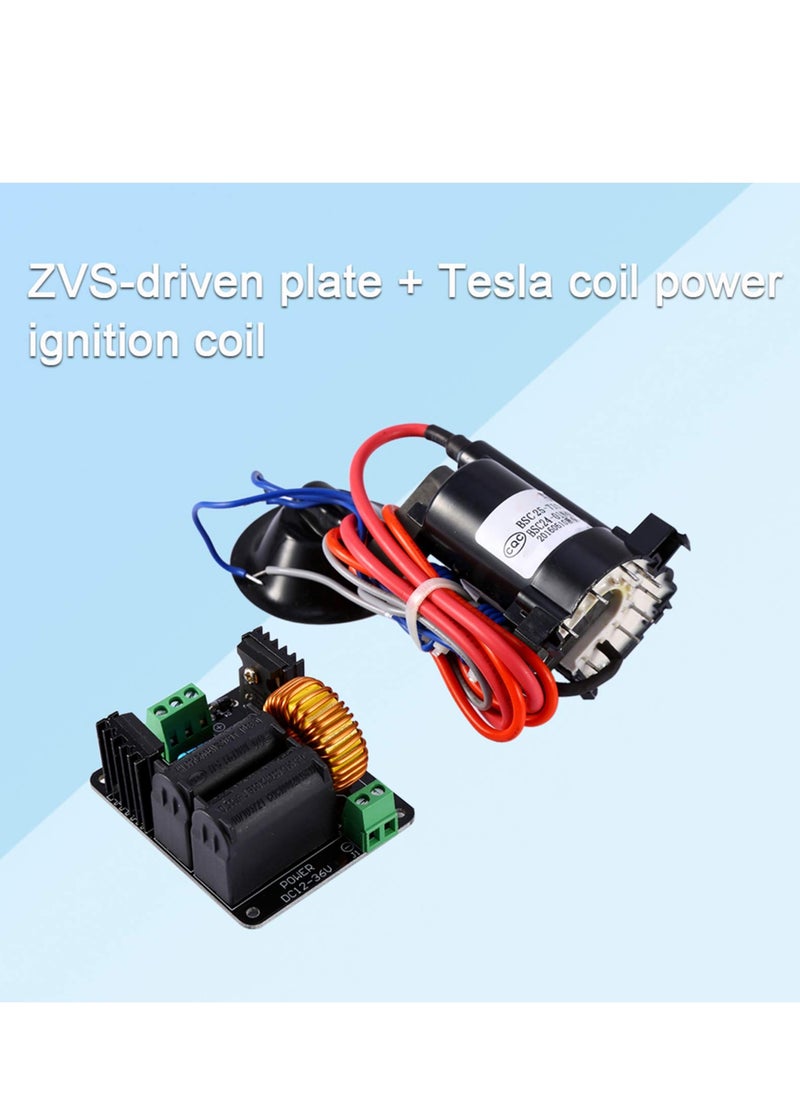

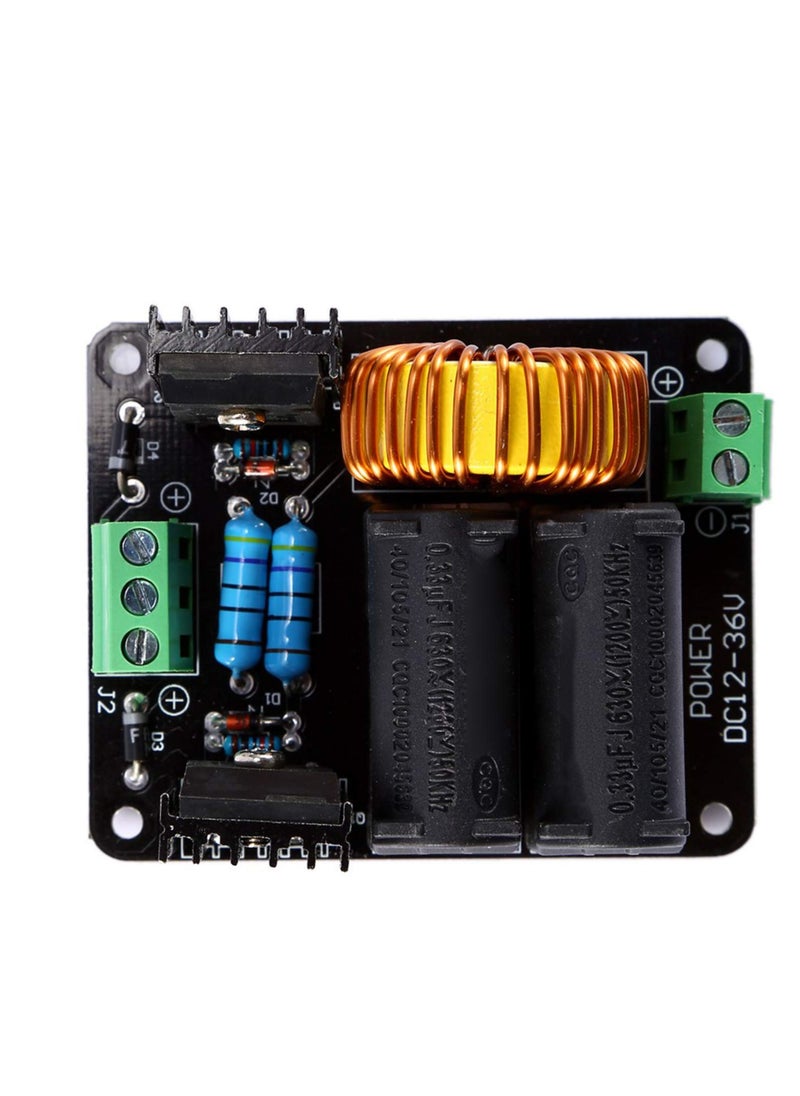

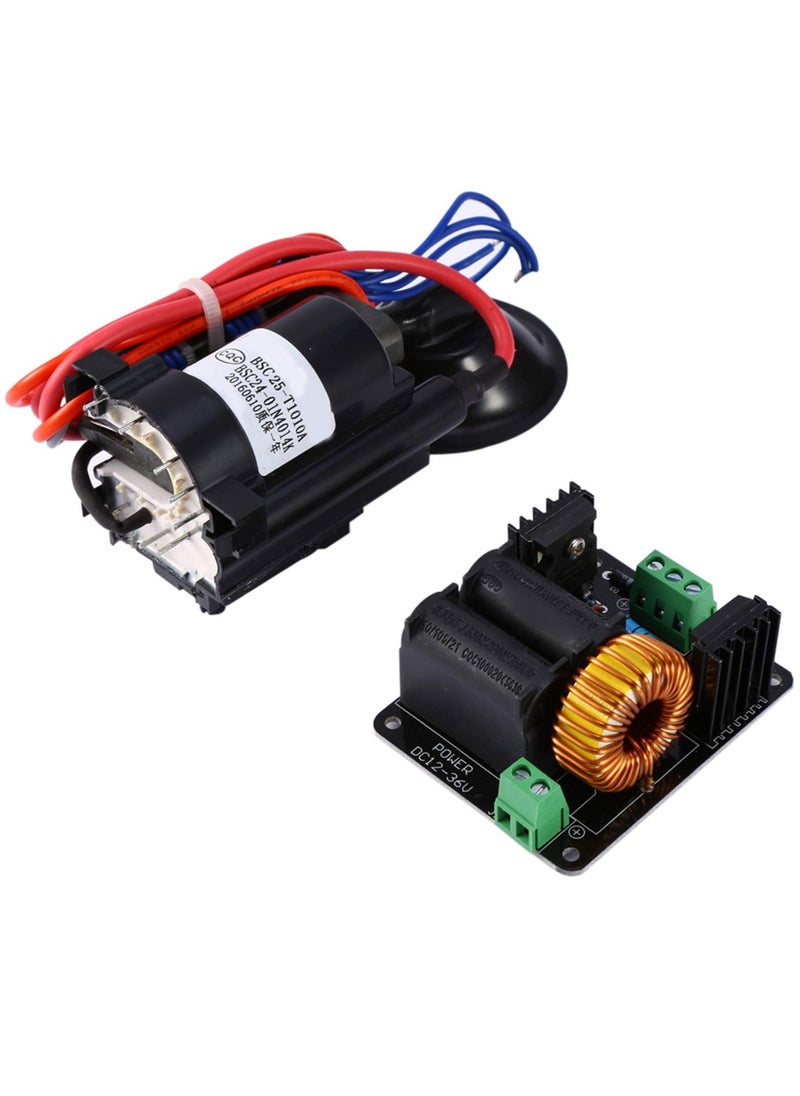

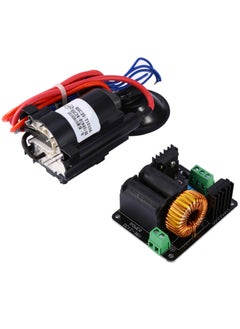

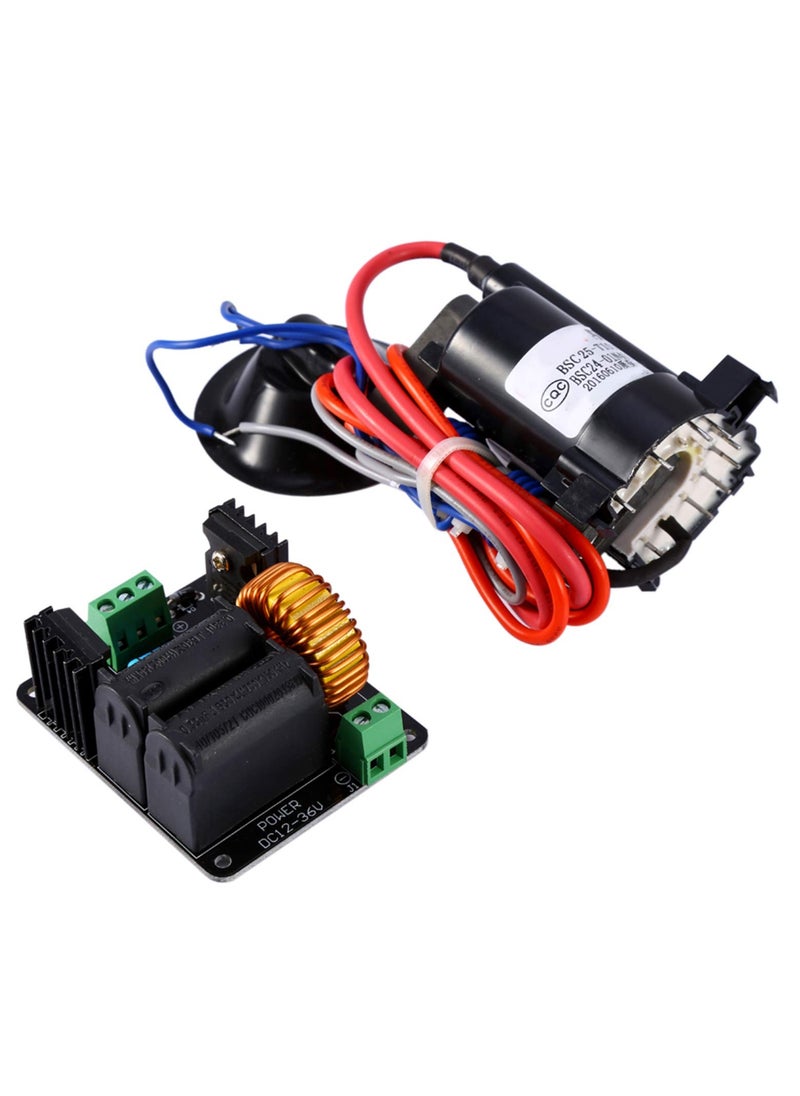

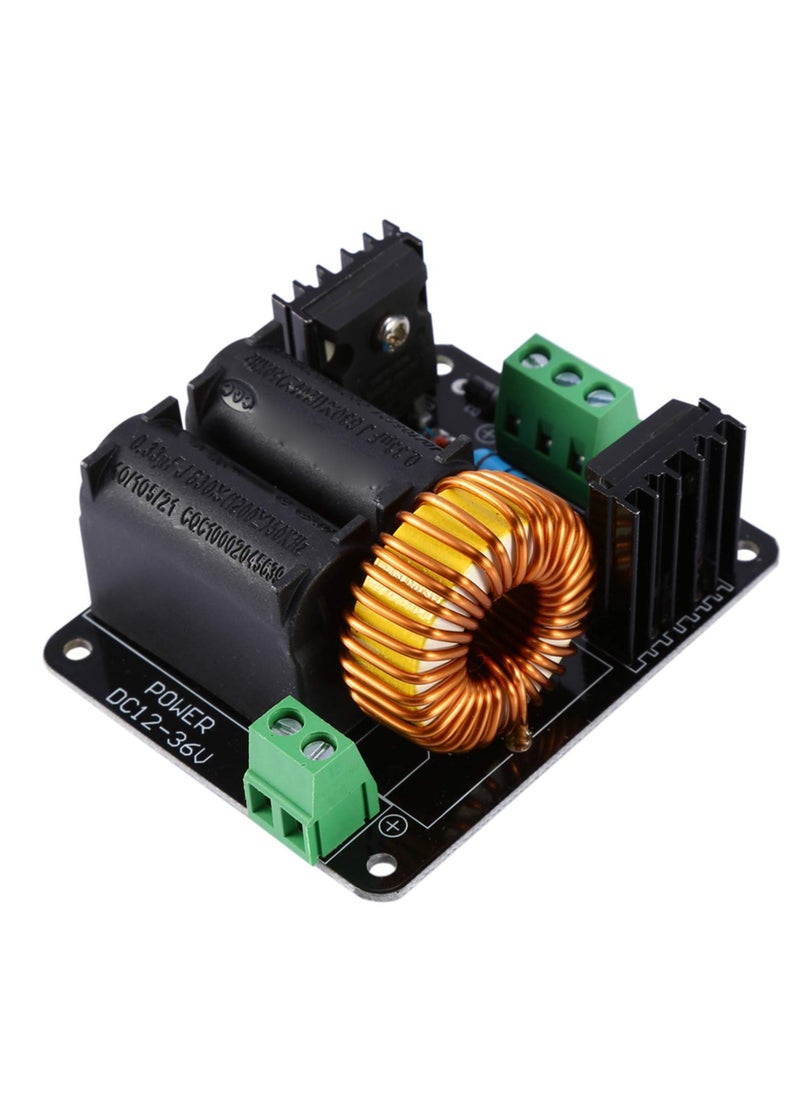

Tesla Coil Driver Board ZVS Tesla Coil Flyback Driver Marx generator Tesla Coil DC 12 to 36V High Voltage Coil Heating Board Module Excitation Circuit Design

Overview【High-Efficiency Voltage Input & Output】Our device supports a 12-36VDC input, with a recommended 24V for optimal performance. It outputs a high voltage direct current, approximately 1000 times the input voltage, showcasing remarkable efficiency in voltage conversion.

【Powerful Performance Capabilities】With a 12V input, this unit can achieve a power output of 50-100W. When using a 24V input, it can reach an impressive 200W or more. For best results, we recommend using a power supply with a current of over 10A.

【Low Heat & Reliable Operation】Owing to its efficient power utilization and low heat generation, this product is highly reliable and favored by enthusiasts. It's commonly used in driving spark gap Tesla coils (SGTC), Jacob's ladders, Marx generators, and similar applications.

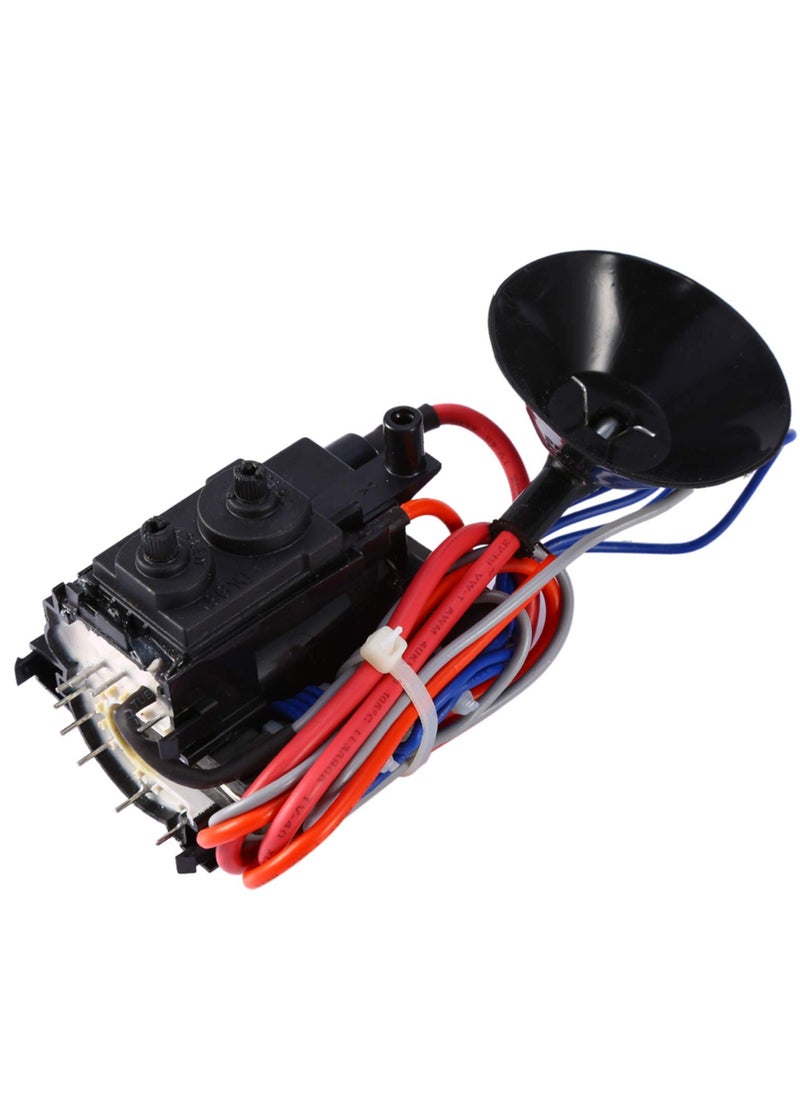

【Innovative Flyback Drive Circuit】This unit includes a flyback drive circuit designed to drive the ignition coil. It operates on 0 Voltage Switching (ZVS), making it highly efficient and popularly known as the ZVS circuit among fans.

【Tested for Safety & Reliability】Both the Tesla coil power supply and the ignition coil have undergone rigorous safety tests. Users can be assured of their safety and reliability, making them suitable for various projects and experiments with confidence.
