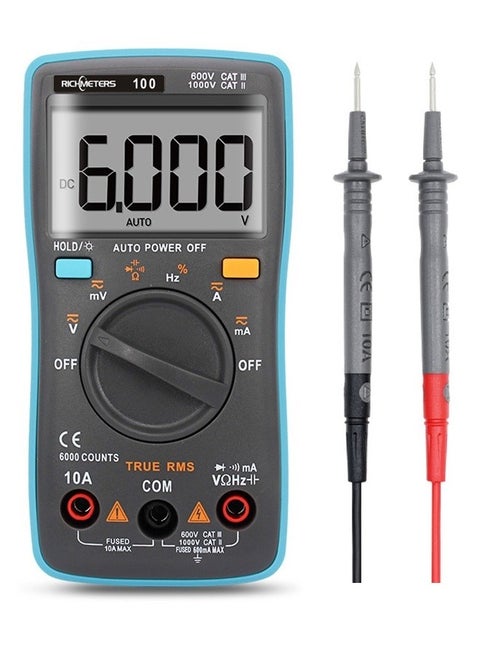

True RMS Multifunctional LCD Digital Multimeter DMM DC AC Voltage Current Resistance Diode Continuity Capacitance Frequency Duty Tester Measurement Automatic Polarity Identification Ammeter Voltmeter

It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode, continuity testing, frequency, duty cycle, etc. Characterized by stable function and high reliability, with the features of overload protection and backlight lighted LCD display for clear reading, this product is a perfect tool for lab, factory, radio fans, and family use. Specifications: Model: RM100 Maximum display: 4000 Operational temperature: 0-40℃, <75% RH Storage temperature: -20-60℃, <80% RH Power supply: 3V (2 * 1.5V）AAA battery (Not included) Power consumption: 4.5mW (Typical) DC voltage: 400.0mV/4.000V/40.00V/400.0V/600V DC voltage resolution: 0.1mV/1mV/10mV/100mV/1V AC voltage (RMS): 400.0mV/4.000V/40.00V/400.0V/600V AC voltage resolution: 0.1mV/1mV/10mV/100mV/1V DC current: 40.00mA/400.0mA/10.00A DC current resolution: 10μA/100μA/10mA AC current (RMS): 40.00mA/400.0mA/10.00A AC current resolution: 10μA/100μA/10mA Resistance: 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ Capacitance: 4.000nF/40.00nF/400.0nF/4.000μF/40.00μF/200μF Capacitance resolution: 1pF/10pF/1nF/10nF/100nF/1000nF Frequence: 99.5Hz/999.5Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz Frequence resolution: 0.5Hz/0.5Hz/1Hz/10Hz/100Hz/1kHz Duty cycle: 0.1% to 99.9% Item size: 130 * 65 * 32mm / 5.1 * 2.56 * 1.26in Item weight: 114.5g / 4.0oz Package weight: 224g / 7.9oz Package size: 16 * 8 * 5cm / 6.3 * 3.15 * 1.97in Package list: 1 * Multimeter 1 * Pair of test leads 1 * English user manual 1 * Carrying bag
