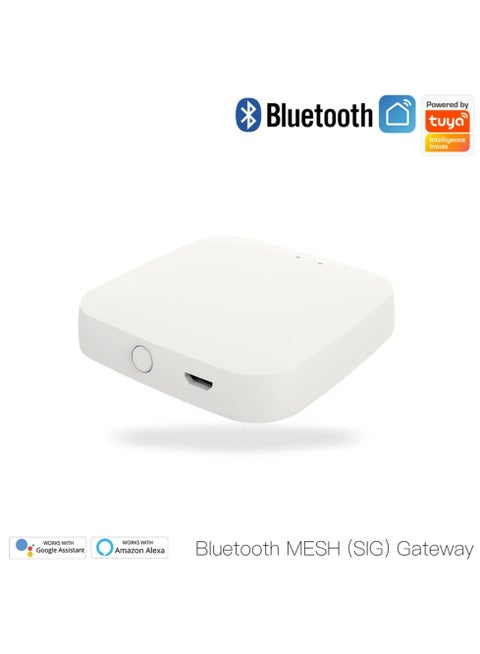

Tuya Bluetooth Gateway Wireless Bluetooth Hub Bridge Works for All Tuya Bluetooth Mesh Devices App Control Compatible with Alexa Google Home (Bluetooth Hub)

Specifications:
APP:Tuya/Smart Life
Product name:Smart Bluetooth Mesh Gateway
Power input:DC 5V1A(no adapter)
Working temperature:-10°C ~ 55°C
Working humidify ：10% ~90% (non-condensing)
Wireless connection:bluetooth-compatible

Step-by-Step Guide to Using the Bluetooth Gateway
1. Initial Setup
Power Connection
Connect the Bluetooth gateway to a power source (e.g., phone charger or computer USB port) using the included USB cable.
The indicator light will illuminate (typically solid/flashing blue/green) to confirm power is on.
Download and Open the App
Download the Tuya Smart or Smart Life app (iOS/Android).
Register/log in to your account.

2. Add the Bluetooth Gateway to the App
Enter Device Pairing Mode
Tap “+” or “Add Device” on the app home screen.
Select the “Gateway” or “Bluetooth Hub” category.
Pair the Gateway
Ensure your phone’s Bluetooth and Wi-Fi are enabled.
Press and hold the reset button on the gateway (usually for 5 seconds) until the indicator flashes rapidly (pairing mode).
Select your home Wi-Fi network (2.4GHz band) in the app, enter the password, and wait for the connection to complete.
Complete Setup
Once connected, the app will display “Device Added”. Rename the gateway (e.g., “Living Room Hub”).

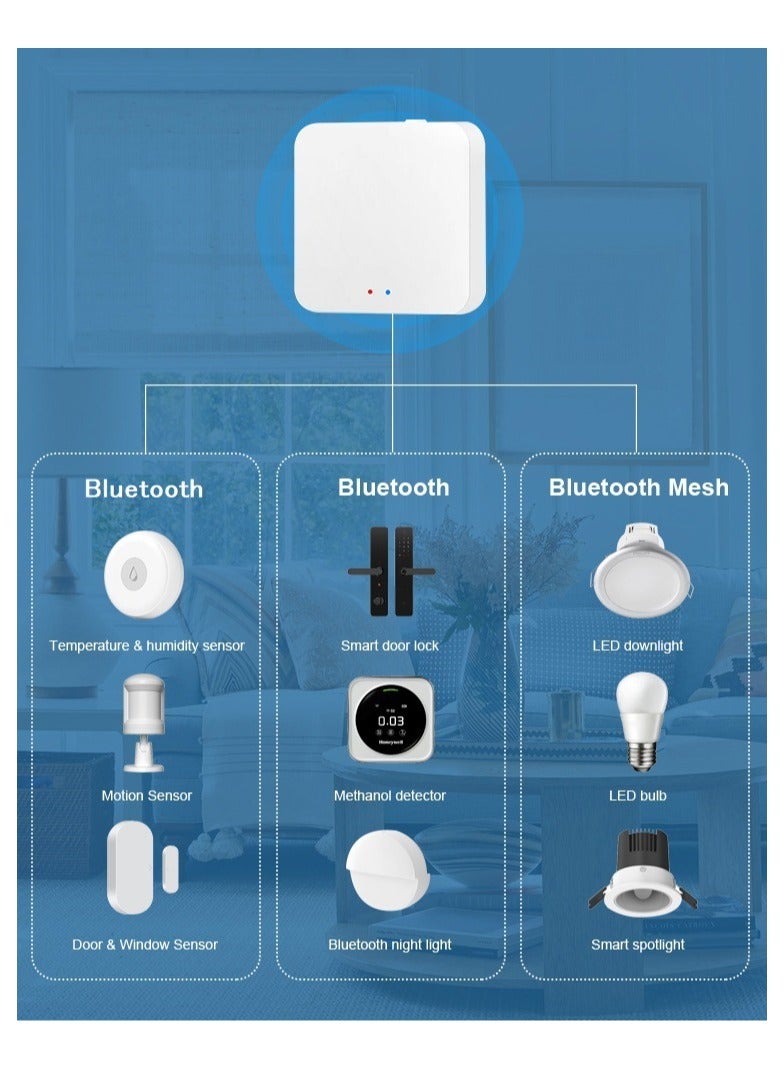

3. Connect Bluetooth Sub-Devices
Activate Sub-Device Pairing Mode
For sub-devices (e.g., smart bulbs, sensors), press and hold their pairing button until their indicator blinks.
Bind Devices via the App
Go to the gateway’s management interface in the app and tap “Add Sub-Device”.
The app will auto-scan nearby Bluetooth devices. Select and confirm the device to bind.

4. Remote Control & Automation
Remote Access
Control connected Bluetooth devices via the app outside your home (requires the gateway to stay online).
Voice Control
Link Alexa or Google Home in the app to control devices via voice commands (e.g., “Alexa, turn on the living room light”). Automation Scenarios

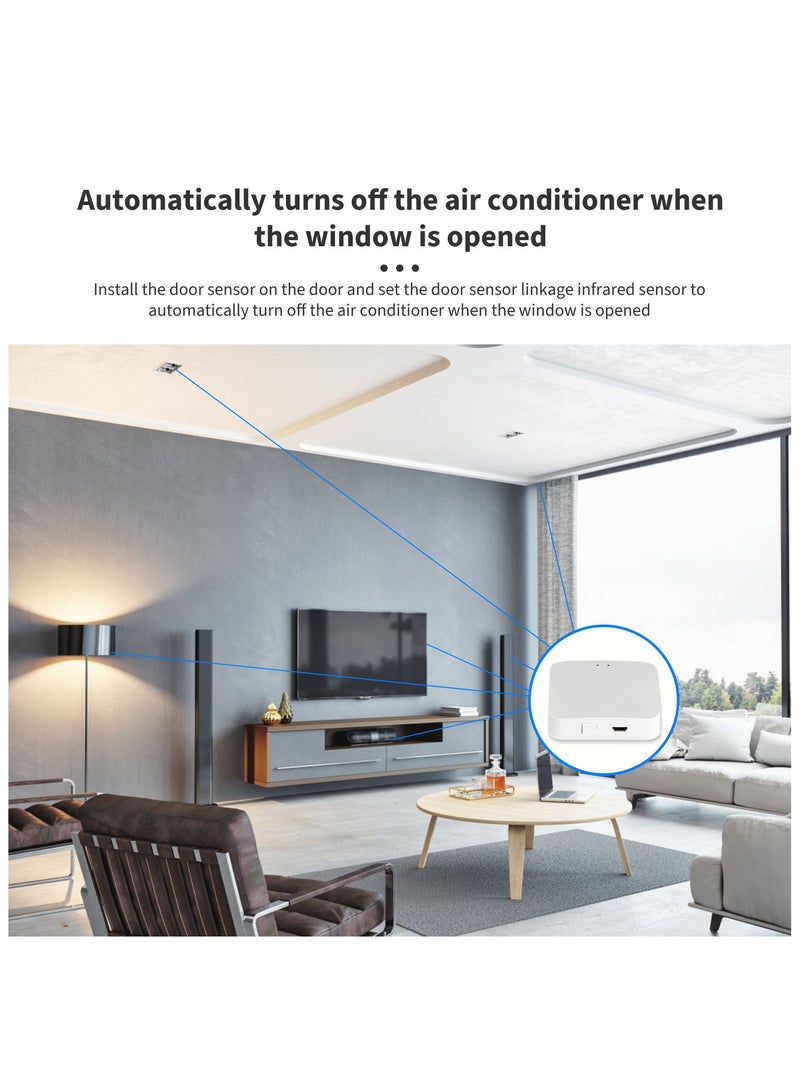

Create rules in the app (e.g., “If the temperature sensor detects >25°C, turn on the fan automatically”).
5. Troubleshooting
Device Fails to Connect
Ensure the gateway and sub-devices are within 10 meters (no walls for optimal signal).
Restart the gateway and router.
Remote Control Unavailable
Check if the gateway is online (indicator light should be solid).
Confirm the app account is logged in to the same network.
