Uni-T UT-682D Cable Finder and Tester

UT-682D Cable finder and tester

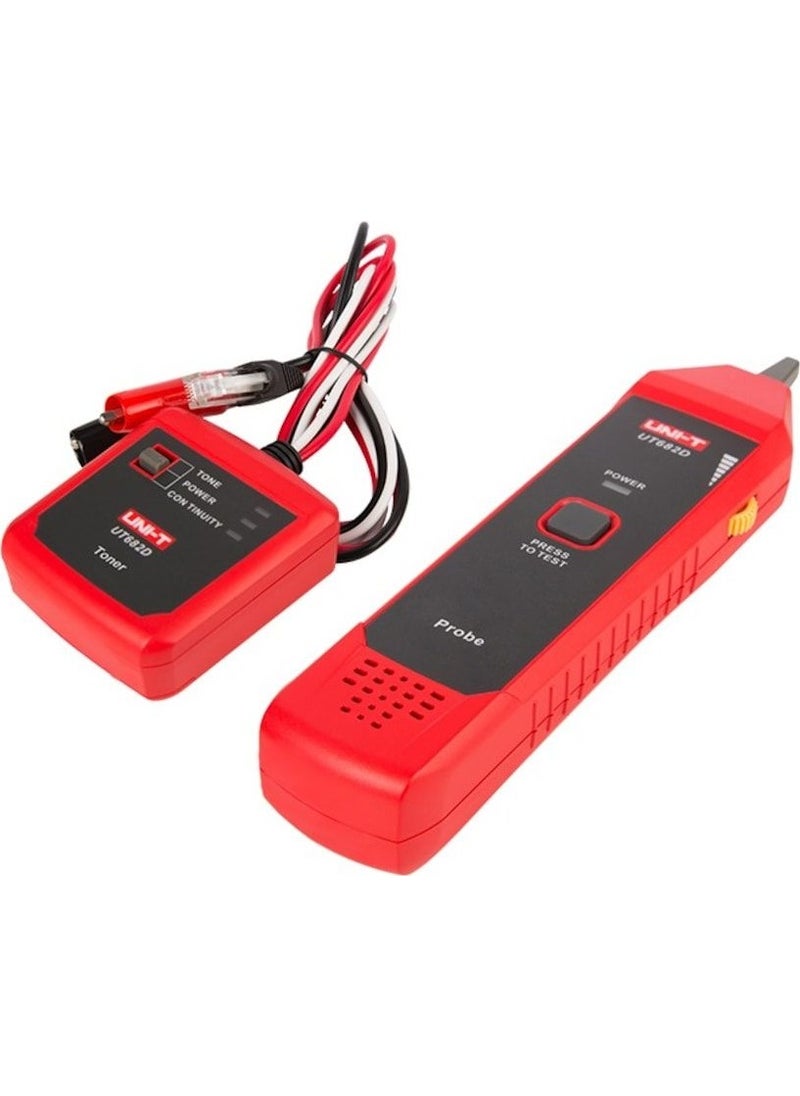

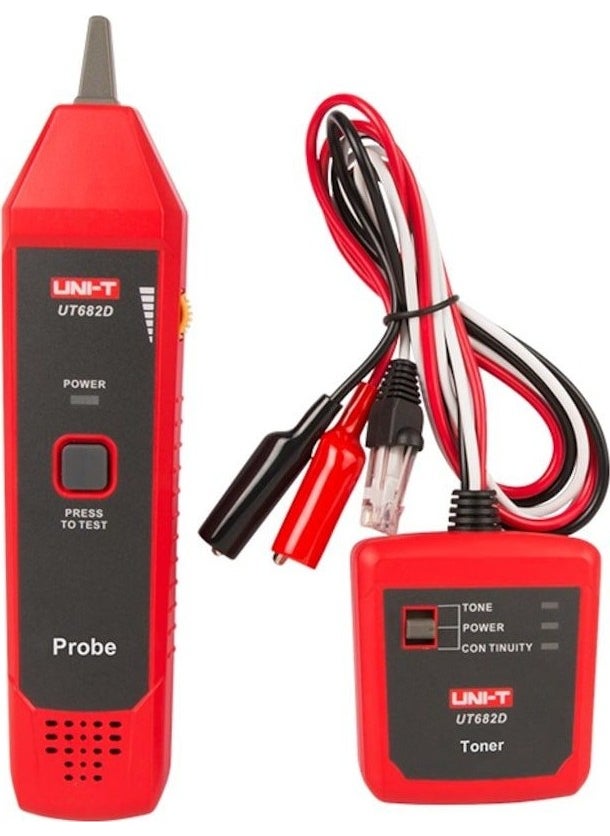

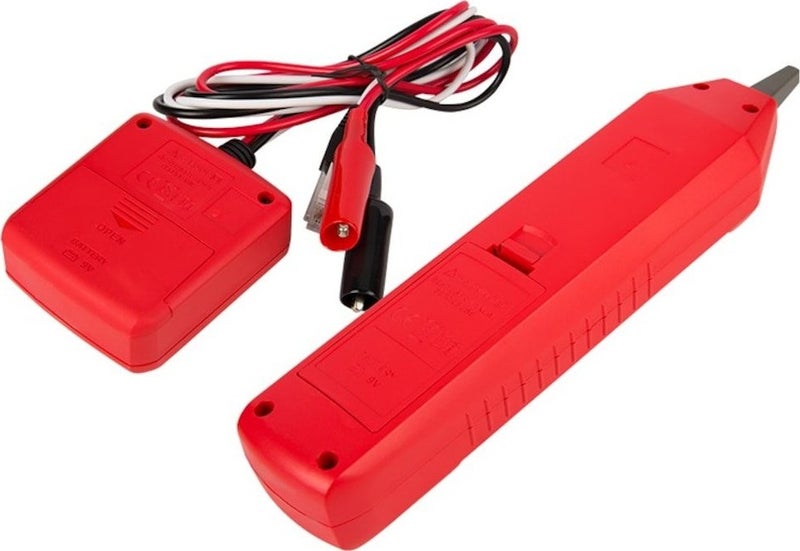

UT682D cable finder consists of a transmitter and a receiver, it can trace ethernet/phone/power cables without opening their insulation.






UT682D can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables






Applications:


It can be used to test continuity and check polarity on telephone lines.



















Features
range
UT682D


Wire tracking features
Wire types
Telephone line twisted - pair ?? Electric string


Telephone lines monitoring distance
?3000m


Polarity indicator for telephone lines
DCV function, range: ± (5V ~ 52V)
?


Separation of telephone lines and LAN cables
jack difference
?


Transmitter output voltage
8V DC with a new battery


transmitter power supply
9V battery
?


Receiver power supply
9V battery
?


Maximum receiver standby current
~10mA
?


Max receiver operating current
<40mA (AC, RMS)
?


Transmitter input voltage protection
?
60VDC


working environment
Working temperature: 0 ~ 40 ?; Storage temperature: -10 ~ 50 ? Operating humidity: 20~75%RH; Storage humidity: 10 ~ 90% RH; Altitude: ?2000m


General Characteristic


product color
red and gray


Product net weight
Transmitter-150g, Receiver-130g


Product size
Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm


Standard accessories
9V battery x 2


Standard individual packaging
english manual


standard quantity per carton
20pcs


Standard carton measurement
425mm x 265mm x 260mm


Standard carton gross weight
7.5kg
