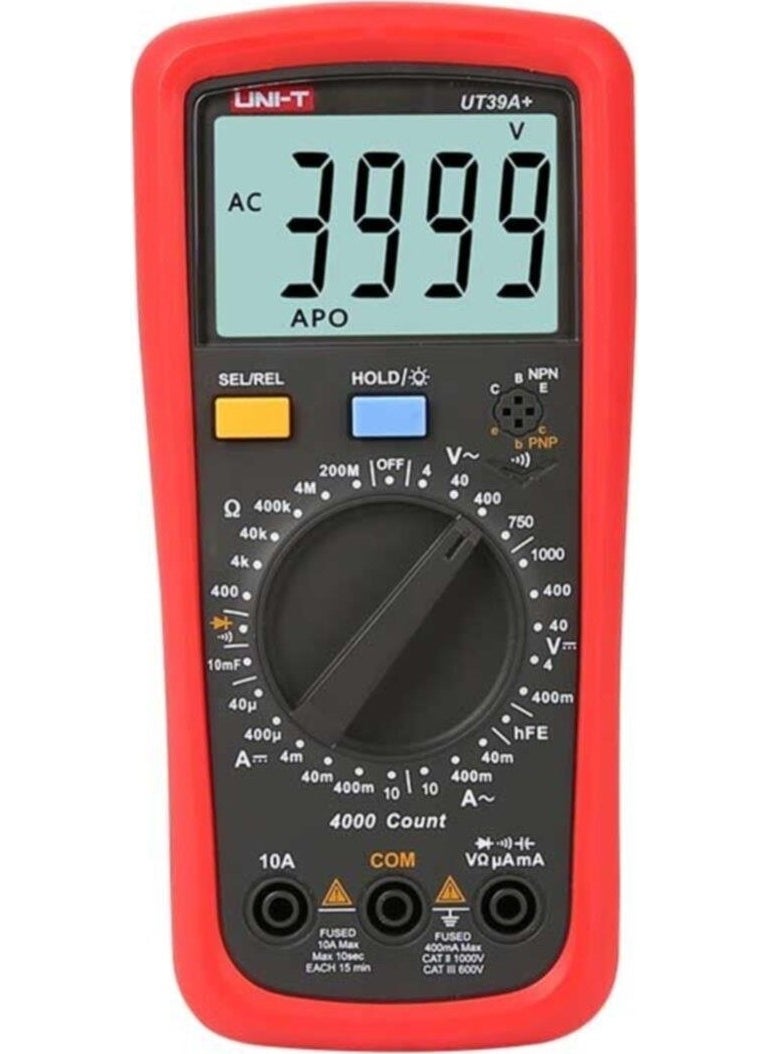

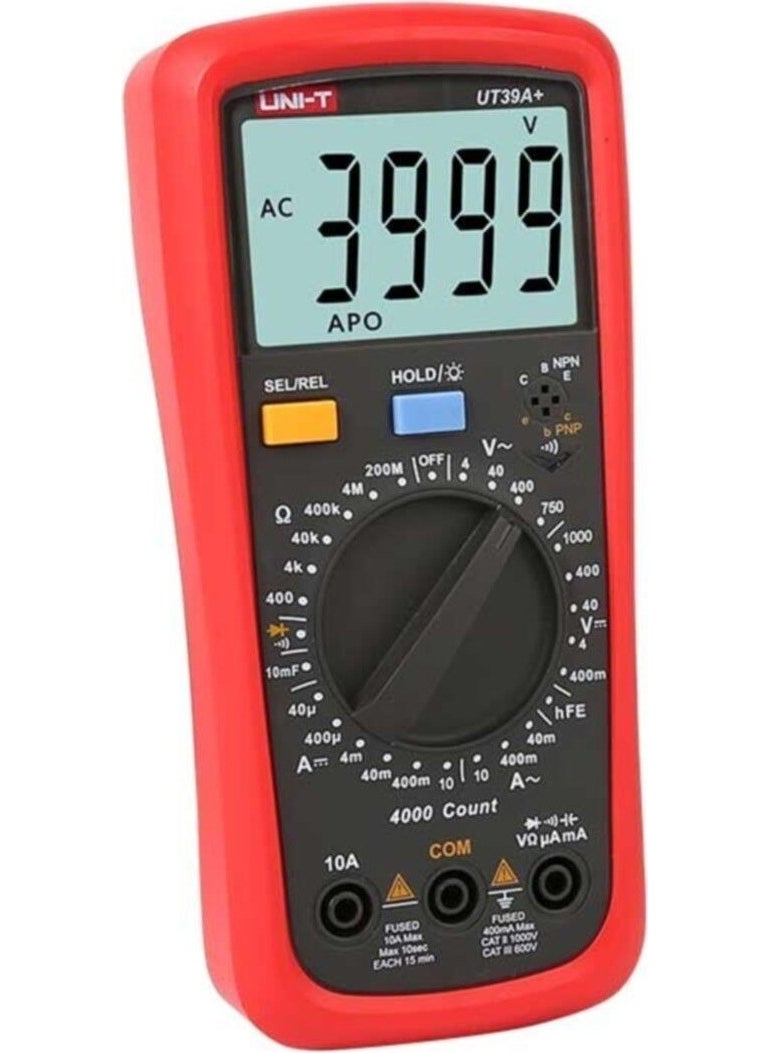

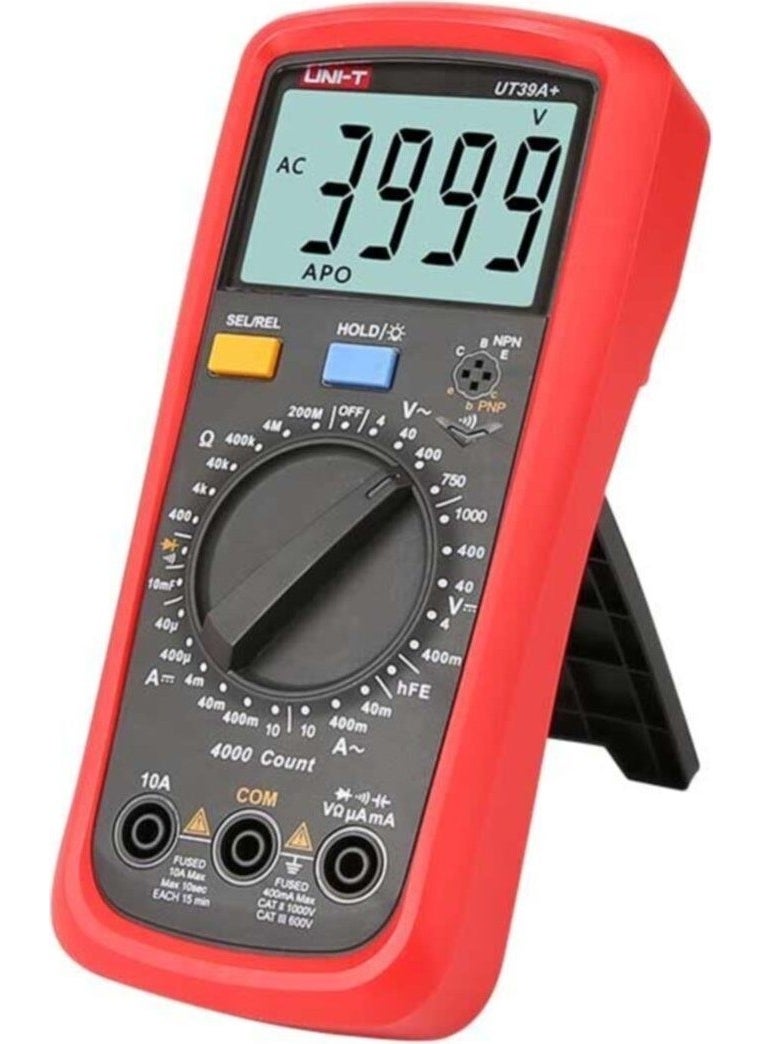

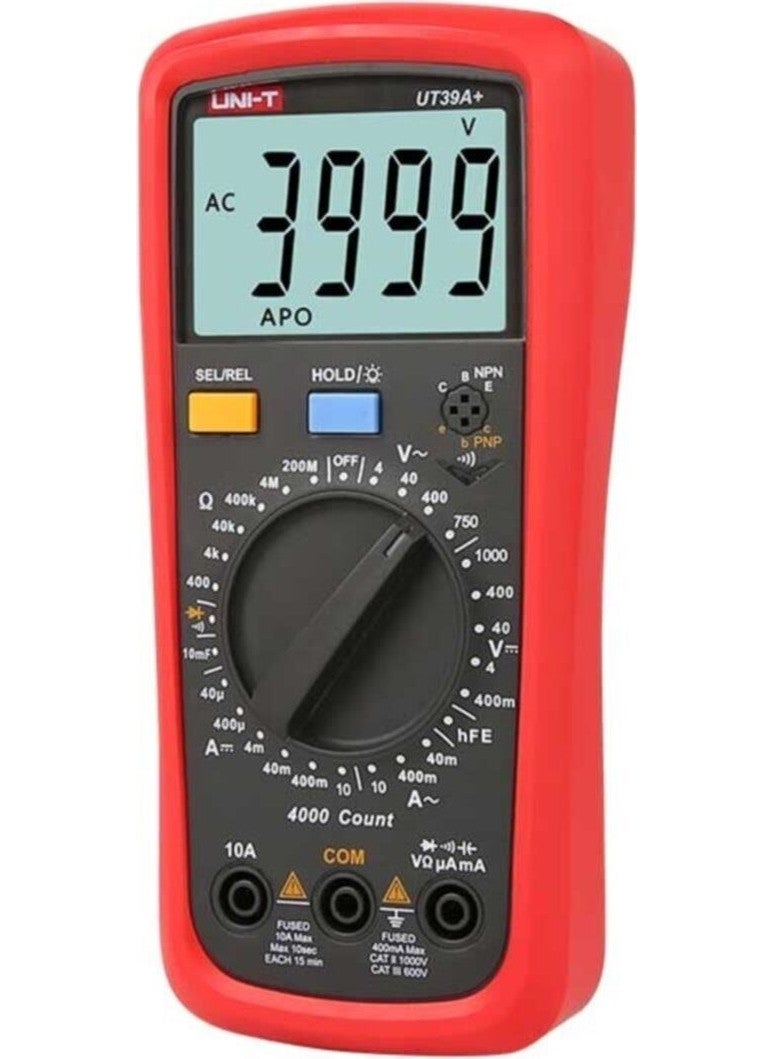

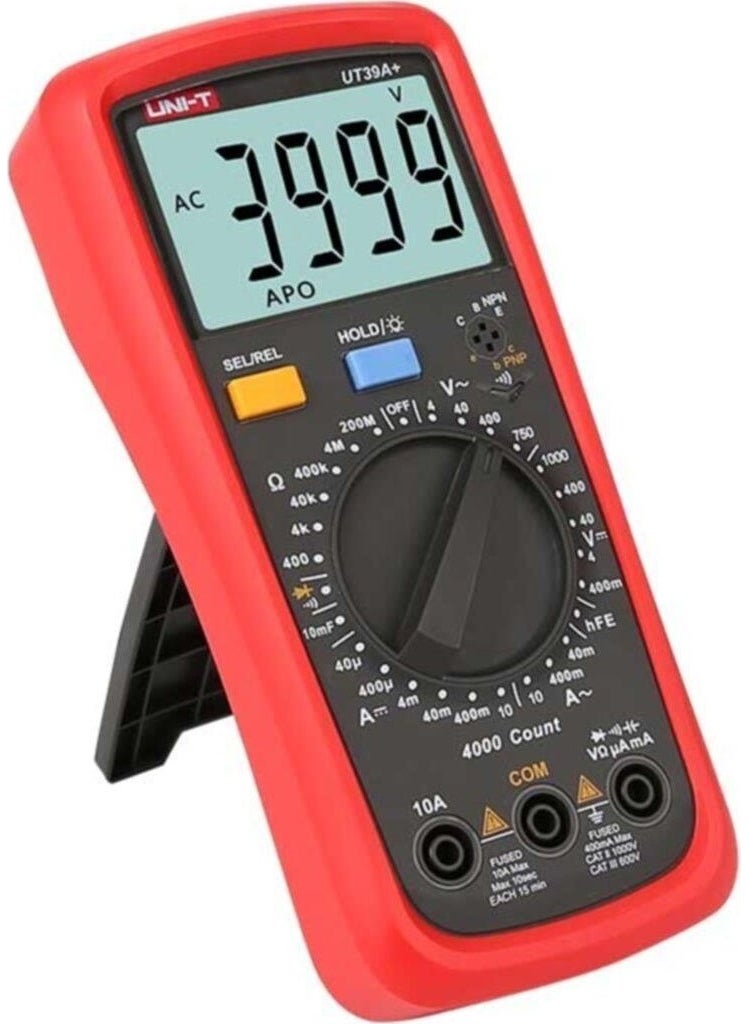

Uni-T UT39A+ Digital Multimeter

OverviewModern digital multimeters of the UT39+ series are portable devices designed for the electrical industry. They include overvoltage and overcurrent alarm and high voltage protection triggered during faulty operation. UT39C+ is suitable for HVACR maintenance with temperature measurement feature. It is designed according to CAT II 1000V / CAT III 600V safety standards. General Features of the Product: 1. 1000V DC voltage measurement 2. 750V AC voltage measurement 3. 10A DC / AC current measurement 4. Resistance / Capacitance 5. hFE 6. Diode / Continuity test Technical Specifications of the Product: Features Range UT39A + DC voltage (V ) 400mV / 4V / 40V / 400V / 1000V ±(0.5%+5) AC voltage (V) 4V / 40V / 400V / 750V ±(0.8%+3) DC current (A) 40uA / 400uA / 4 mA / 40mA / 400mA / 10A ±(0.8%+3) AC current (A) 40 mA / 400mA / 10A ±(1%+2) Resistance (Z) 400? / 4000? /40k? / 400k? / 4M? / 200M? ±(0.8%+2) Capacitance (F) 4NF / 40nf / 400nF / 4UF / 40uF / 400uF / 4MF / 10mF ±(4%+5) Features Number of screens? 4000 Transistor hFE ? ? Diode ? ? Frequency response 40Hz ~ 400Hz ? December selection? Manual Continuity test? ? Data retention? ? Backlight ? ? Low battery indicator? ? Auto shut down? ? General specifications Power 1.5V battery (R03) × 2 Display 56.5 mm x 36 mm Product color Red and gray Product net weight 330g Product size 175mm x 83mm x 53mm Standard accessories Test leads Standard individual packaging Gift box, English manual
