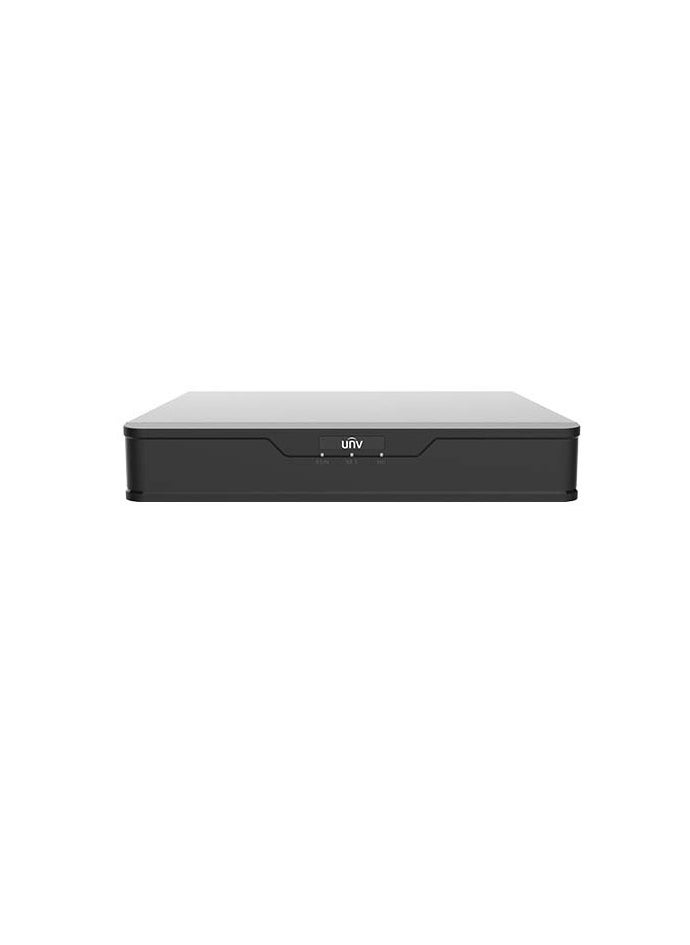

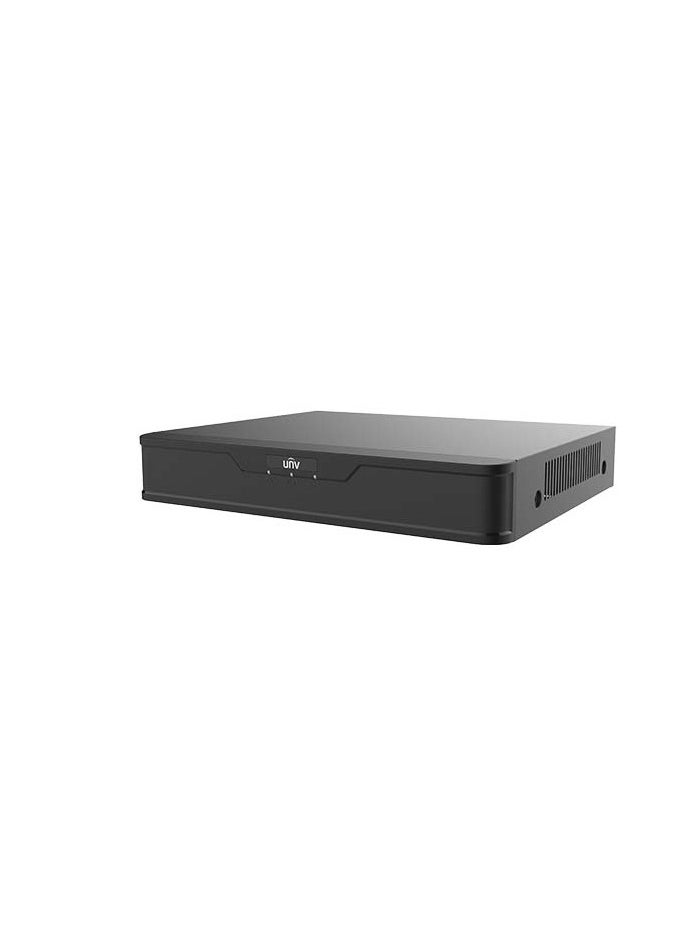

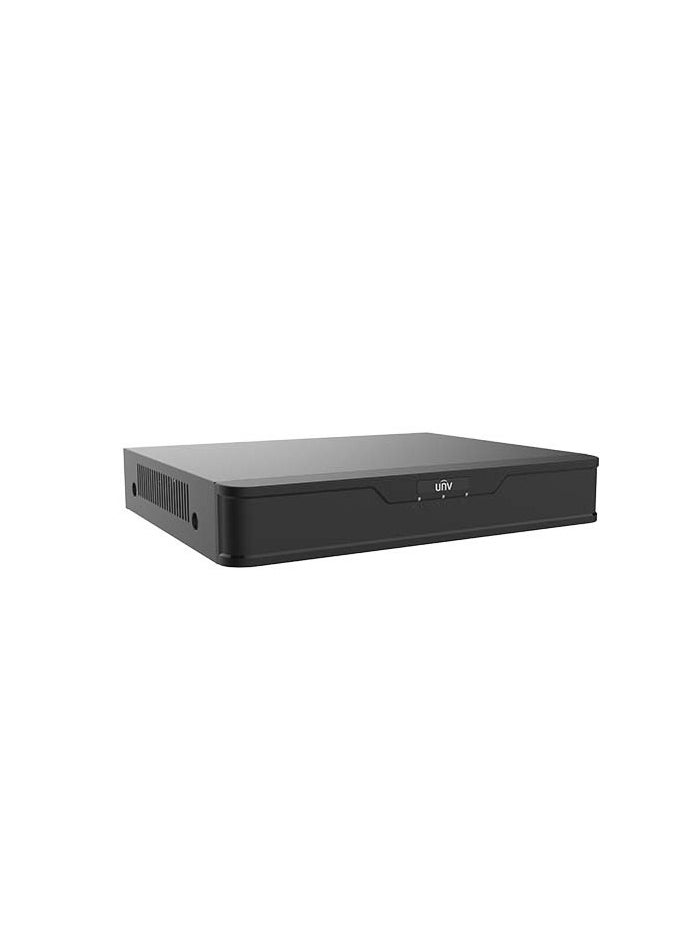

UNV-XVR301-04G3 Series -Support TVI, AHD, CVI, CVBS, IP cameras

OverviewSupport H.265/H.264 video formats Support audio over coaxial cable(only for TVI cameras) Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access 4/8-channel BNC input Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 Long transmission distance over coaxial cable Support mainstream cameras of ONVIF and RTSP protocols Model XVR301-04G3 Video/Audio Input Analog Video Input 4-ch, BNC 8-ch, BNC IP Video Input 2-ch(only IP up to 6ch), each channel up to 4MP 4-ch(only IP up to 8ch), each channel up to 4MP Supported Analog Camera Types Support AHD input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input Audio Input 1-ch, RCA Audio Compression G.711U Video/Audio Output VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz Audio Output 1-ch, RCA Synchronous Playback HD:2-ch SD:4-ch HD:4-ch SD:8-ch Live view display HDMI/VGA: 1/4/6/8/9 HDMI/VGA: 1/4/6/8/9/16 Two-way Audio 1-ch, RCA Snapshot FTP/Schedule/Event Snapshot Schedule snapshot is not supported 4-ch snapshot, up to 704*576 resolution Schedule snapshot is not supported 8-ch snapshot, up to 704*576 resolution Network Incoming Bandwidth 16Mbps (Up to 24Mbps after all analog channel conversion) 32Mbps (Up to 40Mbps after all analog channel conversion) Outgoing Bandwidth 48Mbps 64Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP Browser IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows Encoding Recording Resolution 5MP Lite/4MP Lite/1080P/720P/CIF 5MP Lite/4MP Lite /1080P Lite/720P/CIF Recording Frame Rate Main stream: Sub stream: Main stream: Sub stream: 5MP Lite@12fps D1@12fps 5MP Lite@6fps D1@6fps 4MP Lite@15fps D1@15fps 4MP Lite@8fps D1@8fps 1080P@15fps D1@15fps 1080P Lite@12fps D1@12fps 720P@25fps D1@25fps 720P@12fps D1@12fps Audio Sample Rate 8KHz,16 bit per channel Audio Bit Rate 64Kbps per channel Decoding Capability Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30 Hard Disk SATA 1 SATA interface Capacity Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) Smart Alarm VCA Detection Ultra Motion Detection(UMD) for analog:4-ch VCA Search Behavior Search General Alarm General Alarm Motion detection Alert Alarm IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal External Interface Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface USB Interface Rear panel: 2 x USB2.0 General Power Supply 12V DC Power Consumption: ≤ 8 W( without HDD ) Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) Dimensions(W×D×H) 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") Weight ( without HDD ) ≤1.1 Kg ( 2.42lb ) Certification Certification UL CE FCC RoHS WEEE
