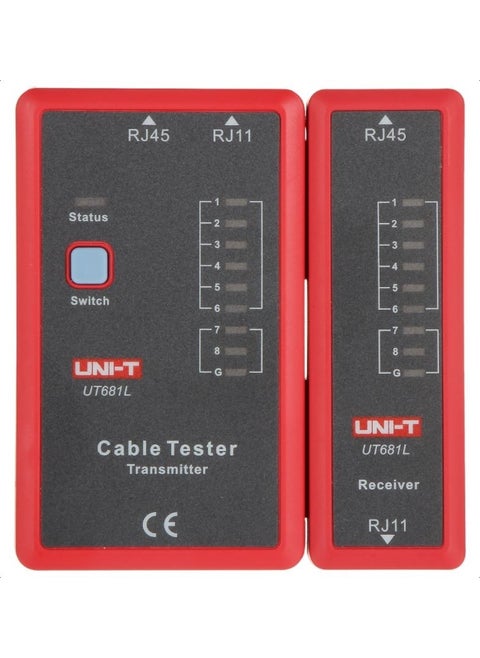

UT-681L Cable Tester

Color

Red

Unit UT-681L Cable Tester



UT681 series handheld cable testers can be used to quickly check whether Ethernet/telephone/BNC/HDMI cables are conductive, short-circuited, crossed or open-circuited. They are ideal tools for technicians to install, maintain and inspect weekly current system circuit.



one.
2nd.
3.
4.
5.
6.

LED status indicatorAutomatic detection of open/short/cross circuitOne-click operationManual/automatic power off (after 10 minutes of inactivity)Low battery indicatorPower is supplied by 9V battery





Properties	Range	UT681L	Definition
Test Function	To test for: RJ45/RJ11	√
	Fast test mode	√	LED1~LED8, LED_G
	Slow test mode	√	LED1~LED8, LED_G
	To test for the case of short circuit, crossover, open circuit, etc.	√
	Ethernet cable: shielded/ unshielded testing	√
	Manual shutdown function	√
	Auto shutdown function	√	No operation within 10 minutes, the device will shut down automatically
	Single key operation	√
	Power supply: 9V battery	√
	Low battery detection	√	Less than 7.2V
Application Environment	Operating temperature: 0~40℃	√
	Storage temperature: -10~50℃	√
	Operating humidity: 20~80%RH	√
	Storage humidity: 10~90%RH	√
	Altitude: ≤2000 meters	√
Security Standard	CE EN61326-1:2013; EN61326-2-2: 2013	√
General features
Item Color	red and gray
Item Weight	Transmitter: 87g; receiver: 51g
Item Size	Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm
Standard Accessories	9V battery
