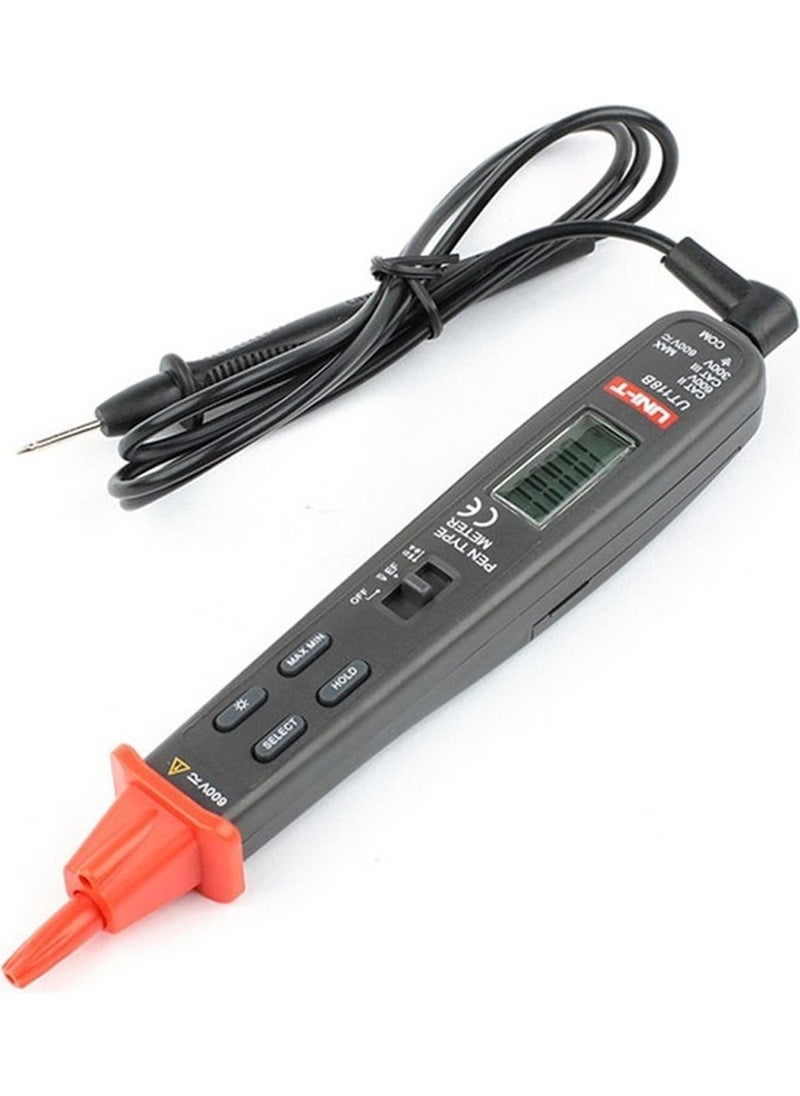

UT118B Pen Type Digital Multimeter

Overview

Color

Black

UT118 series pen type multimeters are lightweight and durable. This meter has a fast sampling rate of 4 times/sec, which can quickly capture measurement readings. It is a cost-effective product customized for home appliance repairers and DIYers. 1. Number of displays: 3000 2. Auto SCAN and range identification mode 3. Data hold, auto power off, low battery indicator 4. MAX/MIN modes 5. LCD backlight and flashlight 6. Non-contact voltage detection Features Range (SCAN Mode) Range (AUTO Mode) UT118B DC voltage (V) 300V 300V ±(1%+3) AC Voltage (V) 300V 300V ±(1%+4) Resistance (Ω) 3MΩ 30MΩ ±(1%+3) Capacitance (F) ) 300μF 3mF ±(3+5) Features Number of views 3000 Auto range √ EF function √ Diode √ Auto shut-off for about 10 minutes √ continuity buzzer √ Low battery indicator √ Data hold √ MAX/MIN √ LCD backlight √ pen light √ for DCV input impedance ≥10MΩ √ General specifications Power 3V battery (CR2032) Display 28 mm x 14 mm Product color red and gray Product net weight 90g Product size 20 mm x 27 mm x 182 mm Standard accessories Battery, test lead Standard individual packaging Blister, English manual Standard quantity per carton 40 pieces Standard carton measurement 535 mm x 205 mm x 287 mm Standard carton gross weight 7.1kg
