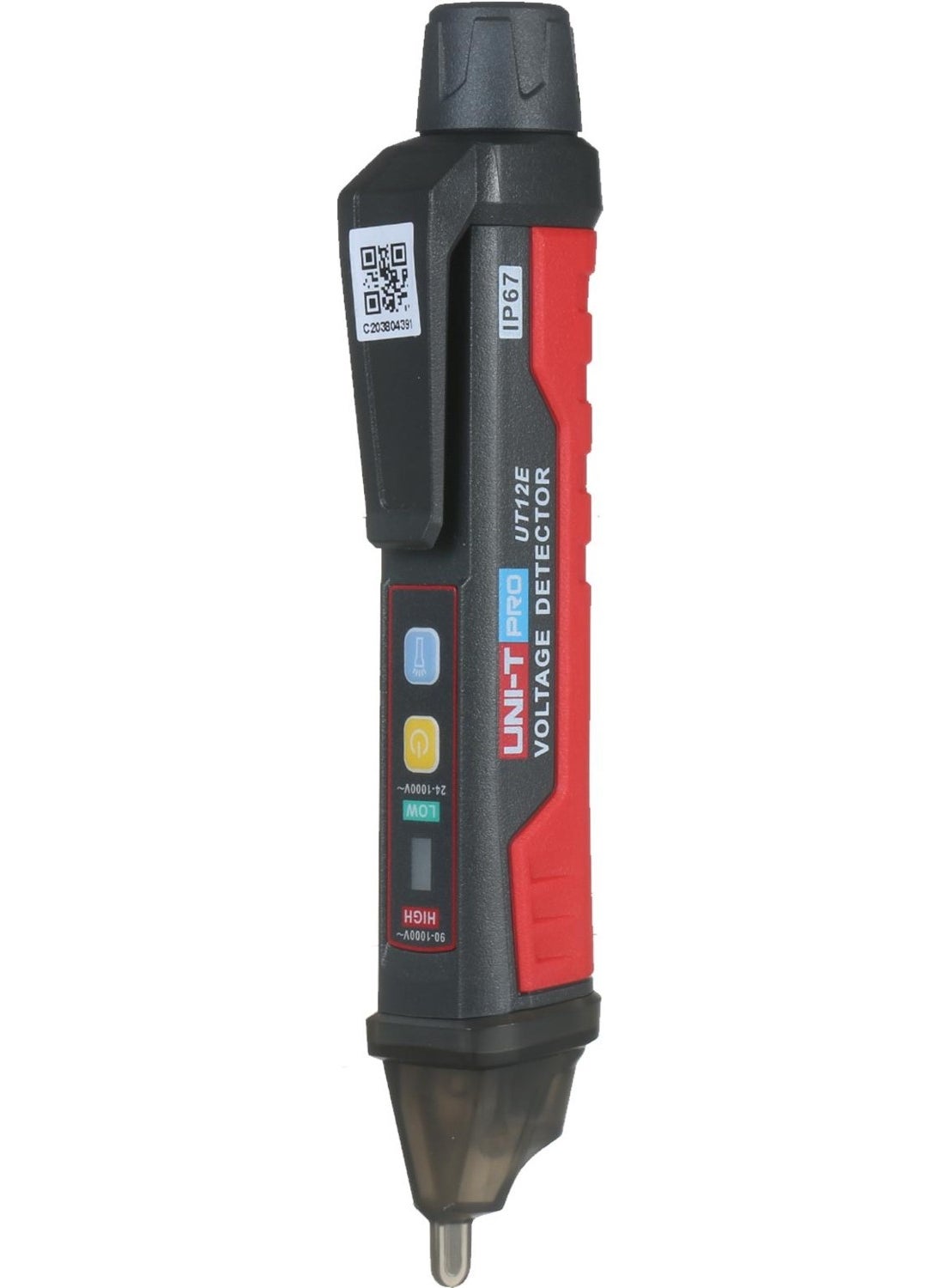

UT12E Non-Contact Ac Voltage Voltage Detector

Color

Red

Unit UT12E Non-Contact Ac Voltage Voltage Detector



UT12 series non-contact AC voltage detectors are widely used in the maintenance of low-voltage equipment such as conductors, cables, sockets and other electrical/electronic tools.

The UT12E is the Unit's professional grade voltage detector.

They are designed with IP67 dust / water resistance and can withstand up to 2 meters.

This durable device is perfect for working in harsh environments. UT12E has an optional vibration mode.

Unit Ut-12E Non-contact voltage tester is a very useful tool for electricians.

Safe, high precision, non-contact test pen that can distinguish between neutral and live wires.





Technical specifications



• AC Voltage Measurement Range:24V-1000 Volts
• High Low Dual Mode Detection: (low: 24-1000V green, high: 90-1000V red)
• As the detector approaches the test object, the sound light alarm, buzzer and setting LED frequencies increase.
• Low voltage indicator.
• Auto power off (do not use the detector for 5 minutes, it will turn off automatically)
• Flashlight feature.
• Model :UT12E
• AC Voltage (Low):24V ~ 1000V
• AC Voltage (High):90V~1000V
• Frequency range :50/60Hz
• Vibration mode.
• Built-in light.
• Audible and visual (LED) indicator.
• Buzzer.
• LED indicator.
• Automatic power offf.
• Low voltage indicator.
• Double injection molding.
• Drop Test:2 meters



General features



• Strength :1.5V battery (R03) x 2
• Product Color :red and gray
• Net Weight of the Product:72g
• Product Size :160.5mm x 21.5mm x 25mm



Applications



• Low Voltage Mode:Low voltage motor (<90V), audio systems, arc welders, underground mining lighting, cables with thick insulation layers and other weak electromagnetic AC signals.
• High Voltage Mode:Urban electricity supply and three-phase systems (90 ~ 1000V). Forexample, power distribution units, electrical panels, electrical home appliances.
