VC520 PRO2 ( Professional Conferencing System for Mid-to-Large Rooms )

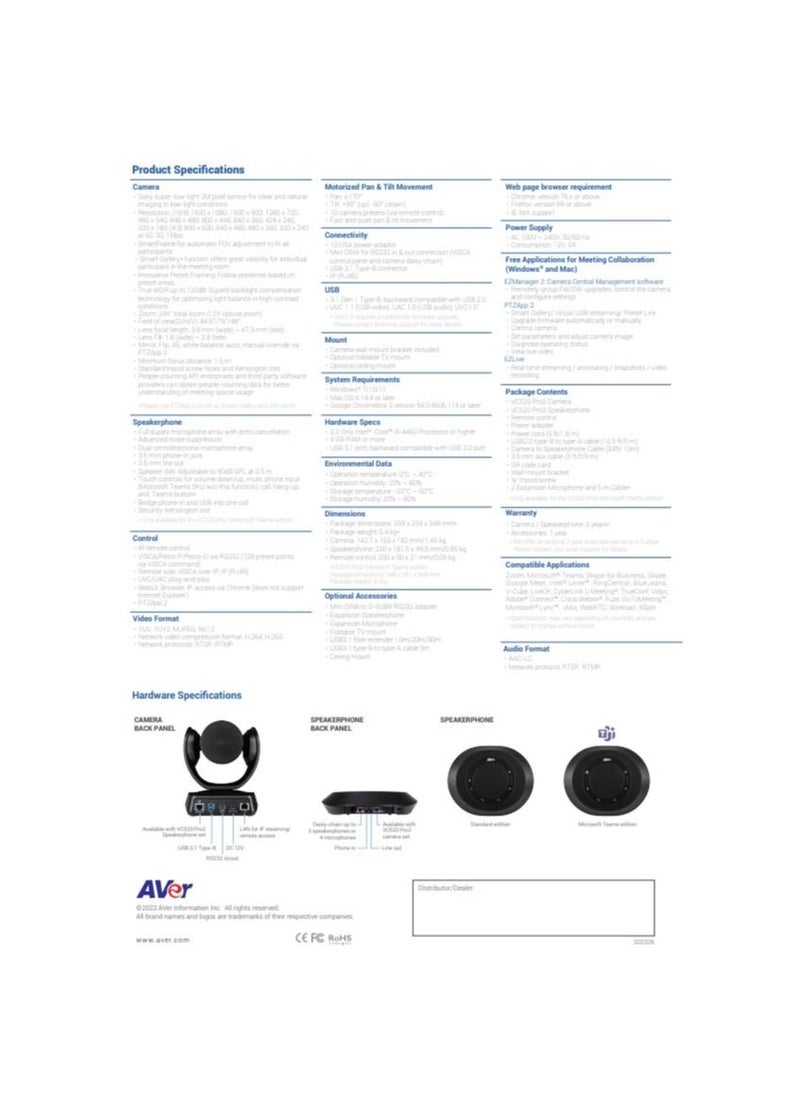

OverviewSpecifications Camera Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps SmartFrame for automatic FOV adjustment to fit all participants Smart Gallery* function offers great visibility for individual participant in the meeting room Innovative Preset Framing: Follow presenter based on preset areas True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions Zoom: 24X* total zoom (12X optical zoom) Field of view(D/H/V): 84.5°/76°/48° Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele) Lens F#: 1.8 (wide) ~ 2.8 (tele) Mirror, Flip, AE, white balance: auto, manual override via PTZApp 2 Minimum focus distance: 1.5 m Standard tripod screw holes and Kensington slot People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage *Please use PTZApp 2 to set up Smart Gallery and 24X zoom Video Format YUV, YUY2, MJPEG, NV12 Network video compression format: H.264, H.265 Network protocols: RTSP, RTMP Audio Format AAC-LC Network protocol: RTSP, RTMP Motorized Pan & Tilt Movement Pan: ±170° Tilt: +90° (up) -30° (down) 10 camera presets (via remote control) Fast and quiet pan & tilt movement Speakerphone Full duplex microphone array with echo cancellation Advanced noise suppression Dual-omnidirectional microphone array 3.5 mm phone-in jack 3.5 mm line out Speaker: 6W, Adjustable to 90dB SPL at 0.5 m Touch controls for volume down/up, mute, phone input (Microsoft Teams SKU w/o this function), call, hang-up, and, Teams button* Bridge phone-in and USB into one call Security: Kensington slot *Only available for the VC520 Pro2 Microsoft Teams edition Connectivity 12V/5A power adaptor Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain) USB 3.1 Type-B connector IP (RJ45)
