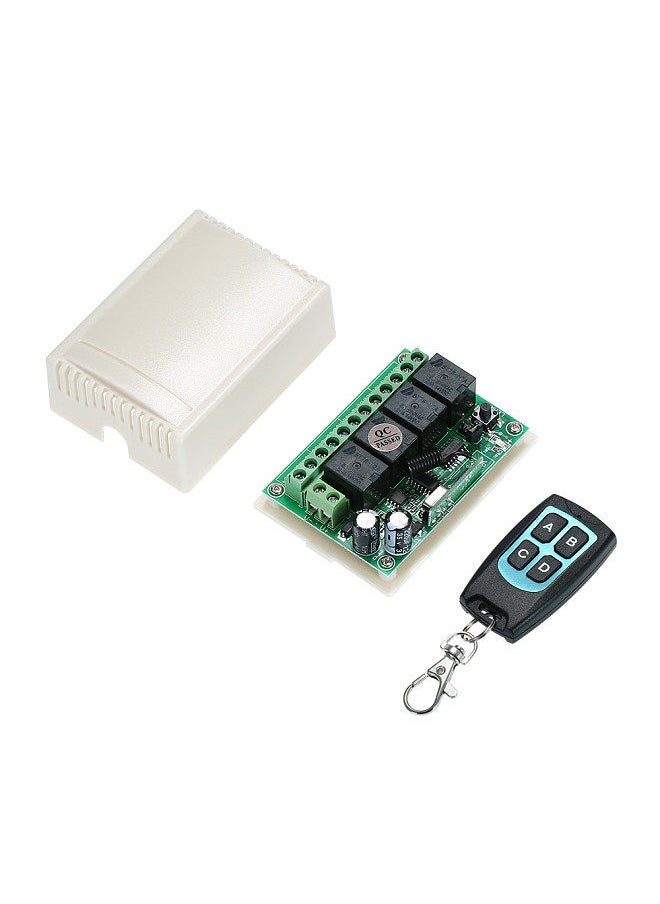

Wireless RF Switch Long Range Wireless Remote Control Switch RF Relay Receiver Module Transmitter Toggle Switch 1527 Chip Smart Home Automation (1 Transmitter & 1 Receiver)

Overview​Features:

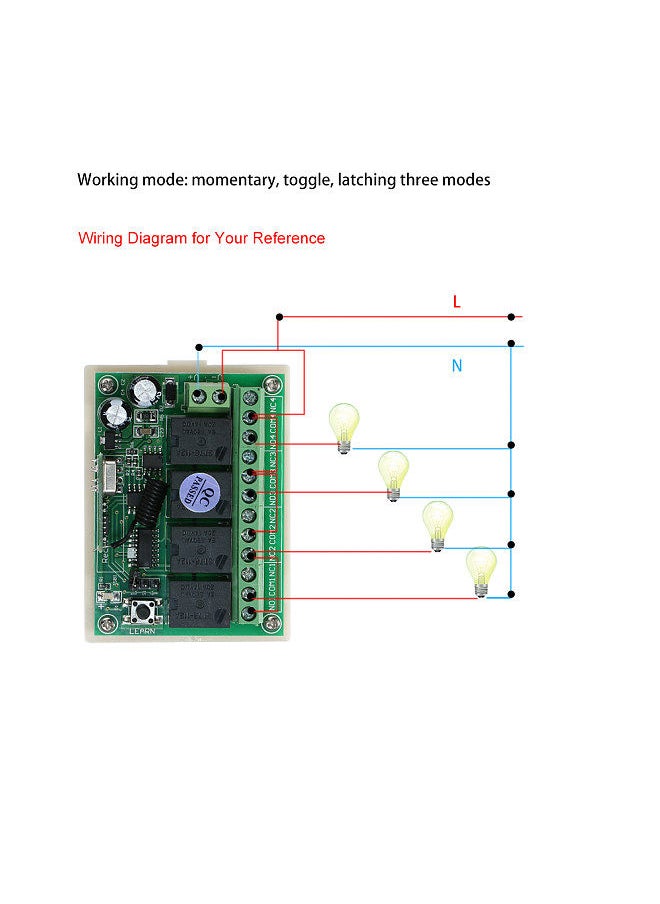

*Very convenient to use, simple wiring diagram connection way.
*Support remote control up to 16 pieces. It can connect to the electronic control lock, intercom doorbell, garage door, light, electric curtain, household appliances, motor control, etc. So that it can remote unlock the door, close the light, open or close the curtain,etc.
*The Remote Control four buttons could respectively copy four different types of chips, that is a remote control can operate four different types of facilities.
*The working mode can be changed by yourself: you can switch to momentary, toggle, latching three modes as you need.
*Learning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.)


Specifications:
Receiver:
Channels: 4
Input Power: DC12V
Standby Current: ≤6mA
Output Current: ≤10A
RF Frequency: 433MHz
Output Power: DC/AC Optional
RF working mode: superheterodyne reception
Coded System: Learning Code (1527 Chip) ; Fixed Code
Receive sensitivity: ≥ -105dbm
Decoding mode: MCU software decoding
Remote control storage: up to 16 PCS
Working mode: Momentary, Toggle, Latching
Wiring type: fixed terminal
Output Terminal: NO , NC , COM
Receiver Board Size: Approx. 7.5 x 5.4 x 2.1cm / (3 x 2.1 x 0.83”)
Fuse Box Size: Approx. 7.5 x 5.4 x 2.7cm / (3 x 2.1 x 1.1”)
Remote Control:
Frequency: 433MHz
Range: 50m (open area)
Battery: 2*CR2016 3V (included)
Working Current: 10mA
Shock Resistance: 270K/330K
Quantity: 1PCS
Remote Control Size(Each): 5.8*3.2*1.2cm


Package Information:
Package Size: Approx. 17 * 11 * 5cm / 6.7 * 4.3 * 2in
Package Weight: Approx. 94g / 3.3oz


Package List:

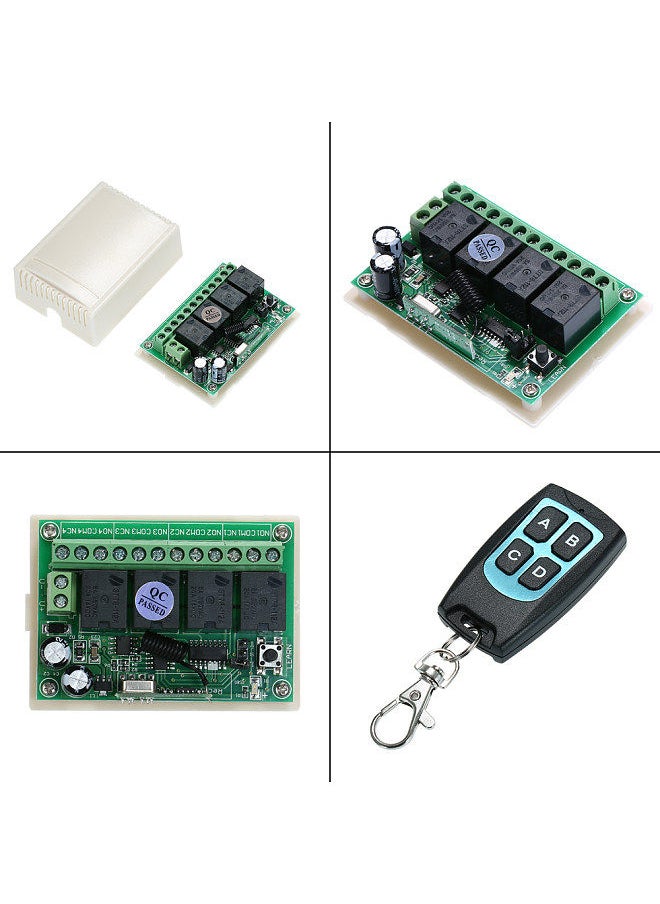

1* Receiver Board

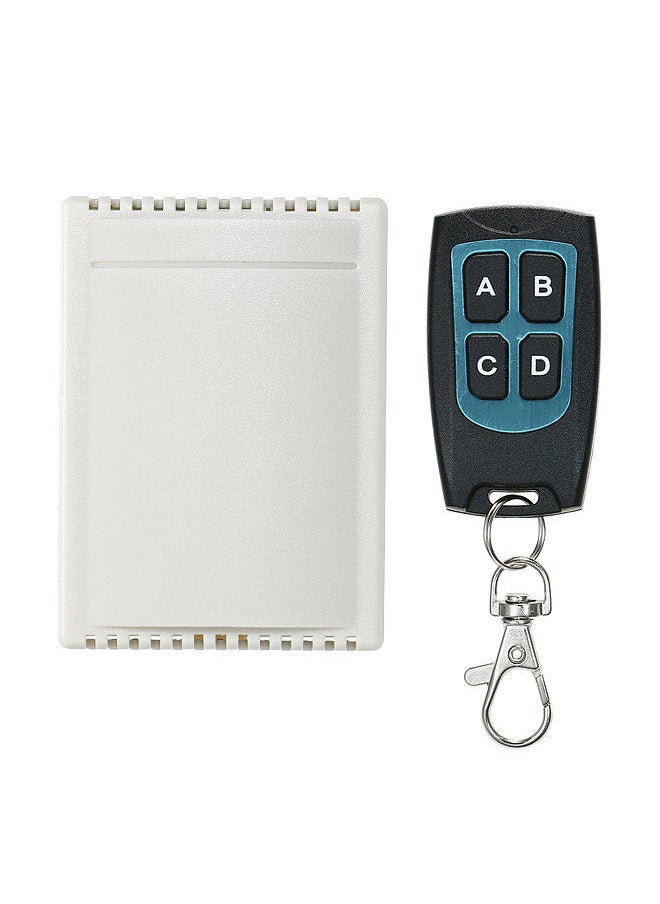

1* Fuse Box
1* Remote Control
