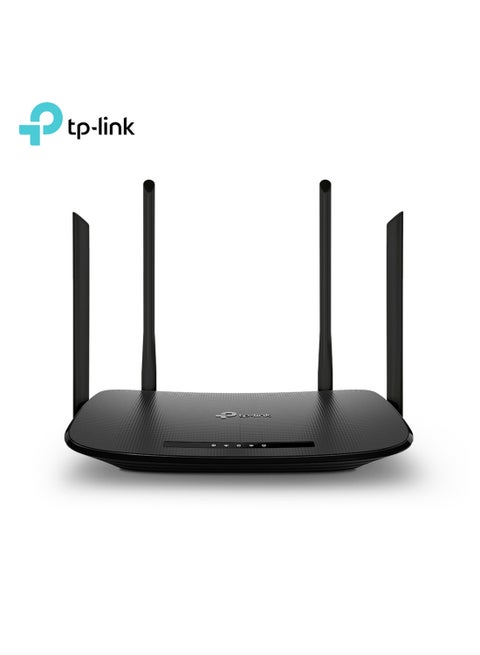

Wireless VDSL/ADSL Modem Router Black

OverviewInterface: 3 10/100 RJ45 LAN Ports, 1 10/100 RJ45 LAN/WAN Port, 1 RJ11 Port, Button: WPS Button, Power On/Off Button, Reset Button Power Supply: 12V/1A VDSL2 Standards: ITU G.993.2, Up to 17a pro¬le (POTS) - ITU-T G.993.5 (G.vector) - ITU-T G.998.4 (G.INP) ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) ADSL2+ Standards: ITU-T G.992.5 Antenna Type: 4 fixed external antennas Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz Wireless Speeds: 867Mbps at 5GHz - 300Mbps at 2.4GHz Transmit Power: 2.4GHz <20dBm(EIRP) 5GHz <23dBm(EIRP) Wireless Functions: Access Point / Wireless Bridge, Wireless EnableDisable, SSID Broadcast EnableDisable, Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS(WPS) Quality of Service: ATM QoS, Bandwidth Control Security: NAT Firewall, Access Control, IP and MAC Address Binding Operating Modes: VDSL/ADSL Modem Router, Wireless Router Management: Web Based Configuration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware, Upgrade, Diagnostic Tools DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP Dynamic DNS: DynDns, NO-IP, VPN Pass-Through: PPTP, L2TP, IPSec Passthrough Protocols: Supports IPv4 and IPv6 ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs Advanced Functions: Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3 Guest Network: 2.4GHz guest network, 5GHz guest network
